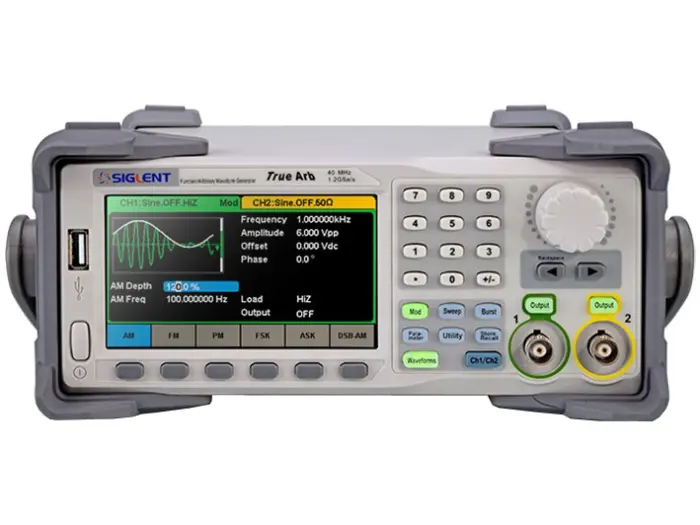

Function generator 120MHz Siglent SDG2122X

SIGLENT's SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Key Features
? Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
? High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
? Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate
in range of 1µSa/s~75MSa/s
? Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely
high precision in pulse width and rise/fall times adjustment
? Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, PSK, FSK, ASK and PWM
? Sweep and Burst function, Harmonics mode supported
? High precision Frequency Counter
? Standard interfaces: USB Device, USB Host, LAN(VXI-11, support U Disk storage and software, upgrading GPIB port is optional
? 4.3" touch screen display for easier operation
