Product description

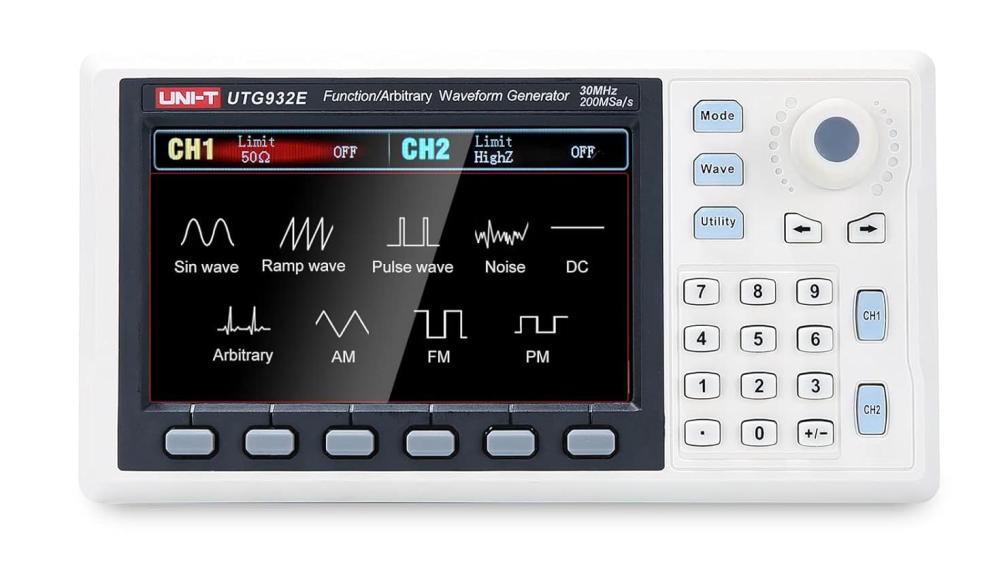

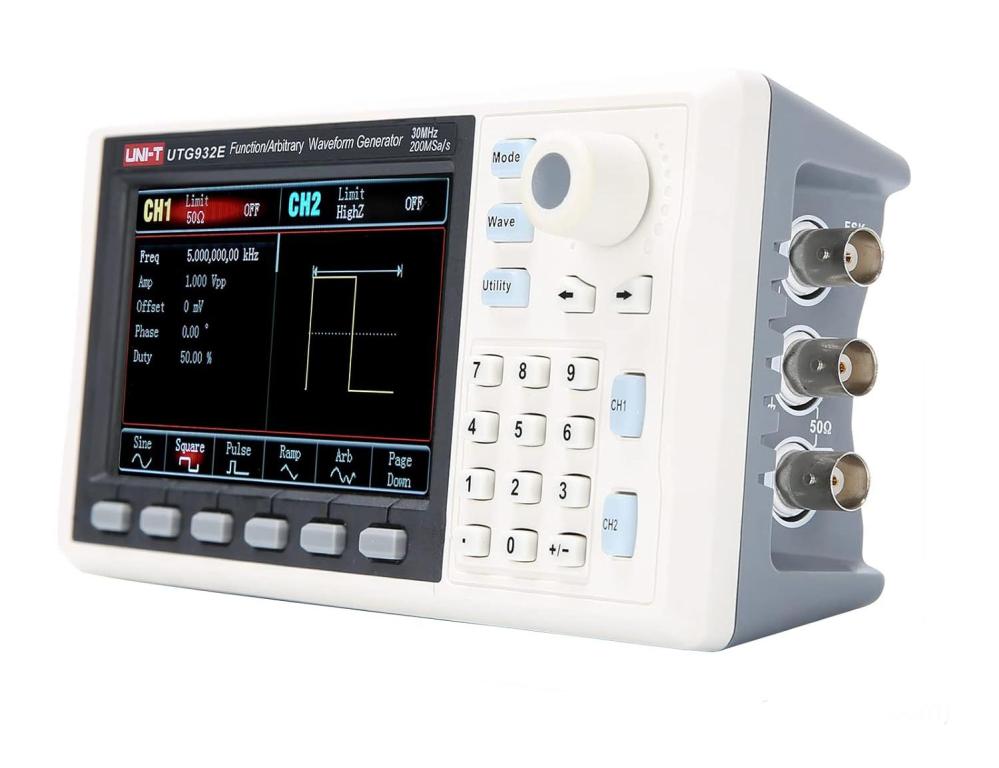

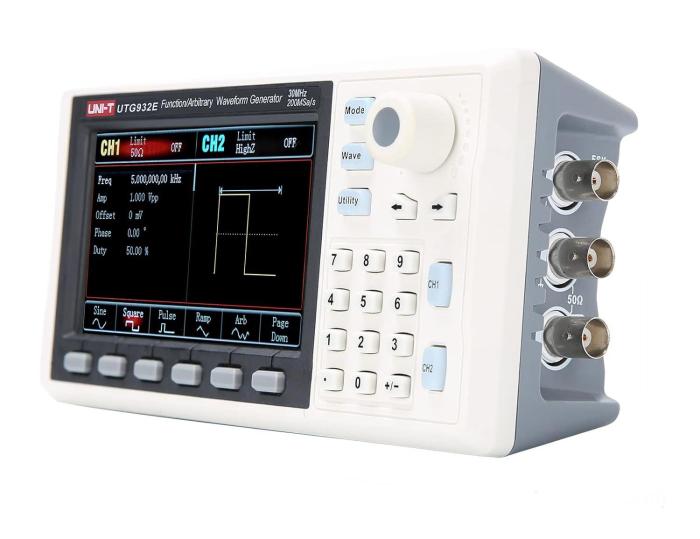

Arbitrary waveform generator 30 MHz. UNI-T UTG932E 2 channels with 30 MHz bandwidth and 14bit vertical resolution. 200 MSa/s sample rate. Uses direct digital synthesis (DDS) technology to produce stable and accurate waveforms. Waveforms: sine, square, ramp, pulse, noise, DC and 24 predefined arbitrary waveforms. Sweep function: Supports sweep from low to high frequency or from high to low frequency, linear or logarithmic. Sweep time: 1ms to 500s. Sweep function carrier wave: sine, square, ramp, and arbitrary. With the free Windows software, it is possible to create your own arbitrary waveforms. With its user-friendly interface, clear graphical display and compact size, this is an ideal entry-level generator, suitable from beginners to more advanced users. Dimensions: 172x90x68 mm. Supplied with test probe (BNC to alligator clips), USB-cable and power adapter.
Specifications:
- Maximum output frequency: 30MHz
- Sampling rate: 200MSa/s
- Vertical resolution: 14 bit
- Output: 2 channel (BNC)
- Frequency range: 1uHz-30MHz
- Modulation types: AM, FM, PM, FSK, Line, Log
- Arbitrary waveforms : 24 predefined
- Frequency counter: one channel, up to 100 MHz.
- TFT colour screen: 4.3 inch
