Product description
Active GPS/GNSS antenna. u-blox ANN-MB5 multiband (L1/L5/E5a/B2a/NavIC). Designed for the latest generation of multi-frequency, multi-constellation GNSS technology, capable of achieving the most accurate, reliable and robust positioning even in challenging environments. ANN-MB5's compact design, excellent price/performance ratio and easy mounting ensure a fast, simple and reliable multiband antenna solution. ANN-MB5 is a perfect match for u-blox L1/L5 multiband GNSS technology at metre level (e.g. u-blox precision platform, F10 series.
- Weight: 104 g (including cable)
- Dimensions: 49x46x16 mm
- Cable Length: 3m, RG174

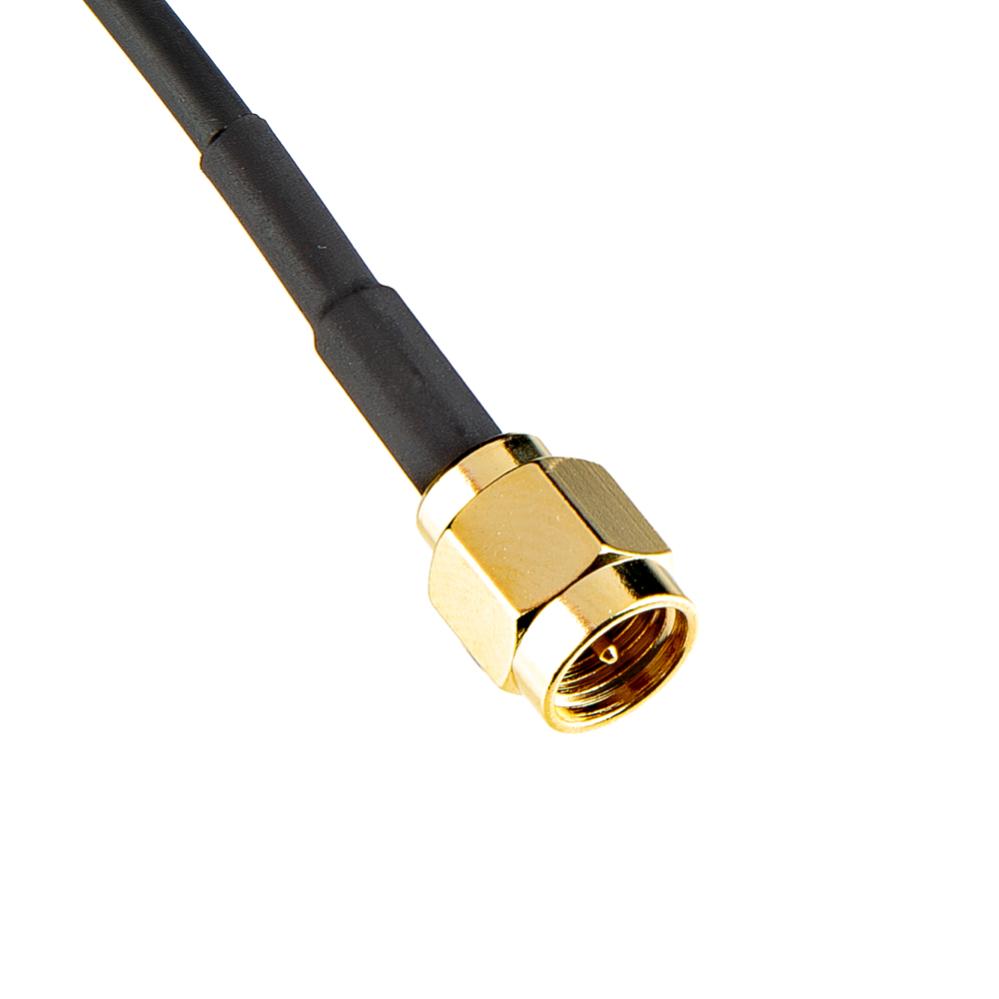

- Connector: SMA
- Mounting: Magnetic Base
- Frequency:
- L1 band: 1559-1608MHz
- L5/E5a/B2a/NavIC band: 1164-1186MHz
- VSWR: Max.2
- Impedance: 50 Ohm
- Peak Gain (over 12 cm diameter ground plane):
- L1 band: 4.5dBic
- L5/E5a/B2a/NavIC band: 4.0dBic
- Polarization: RHCP
