Product description

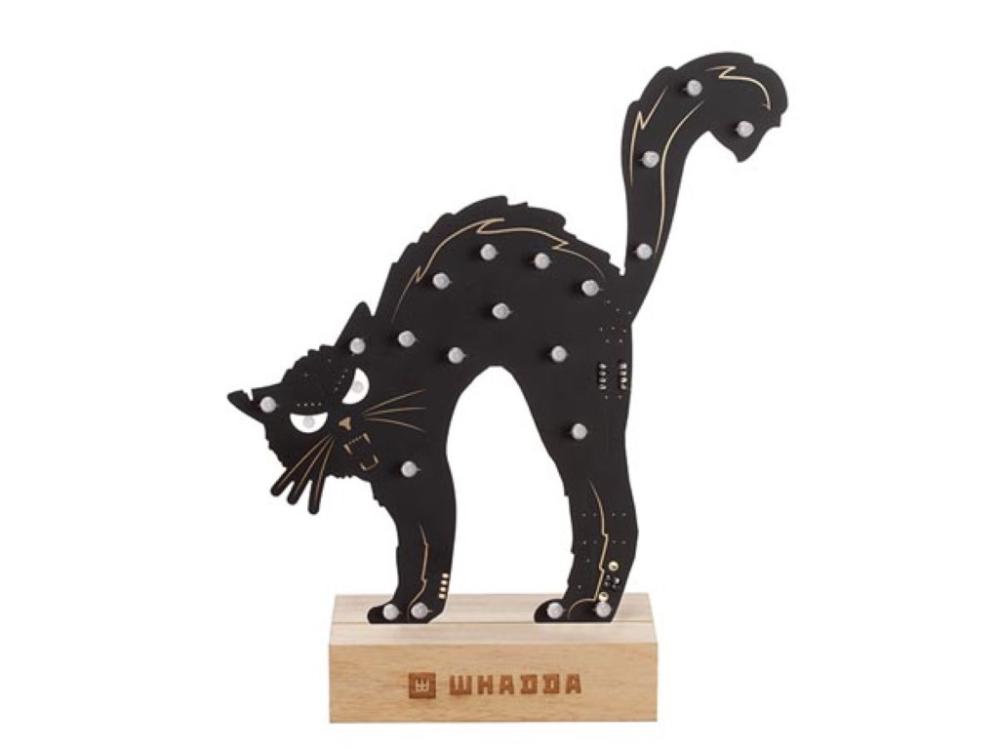

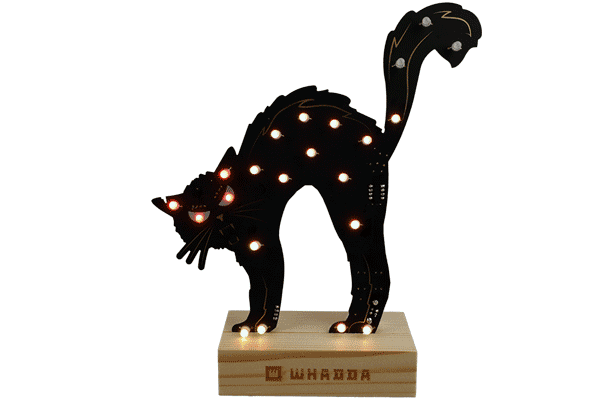

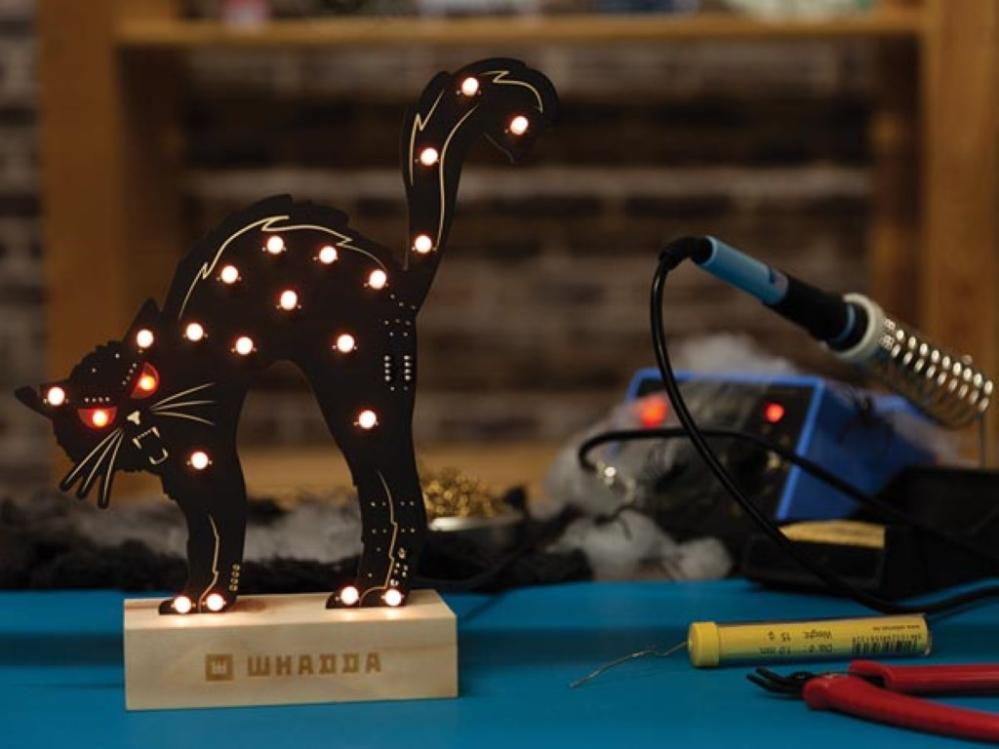

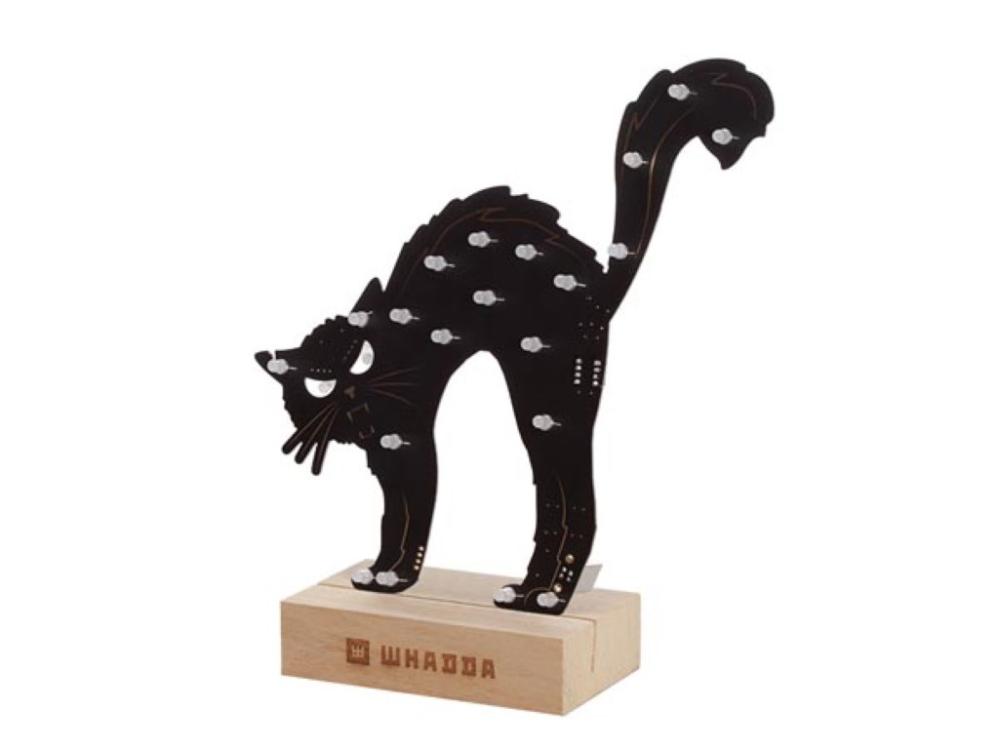

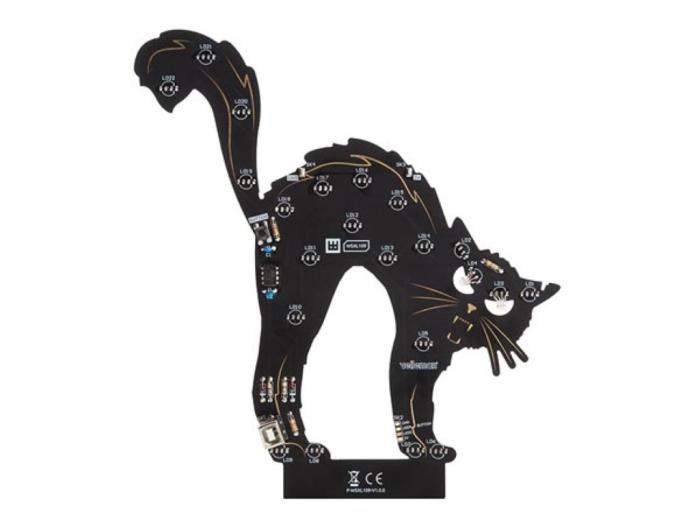

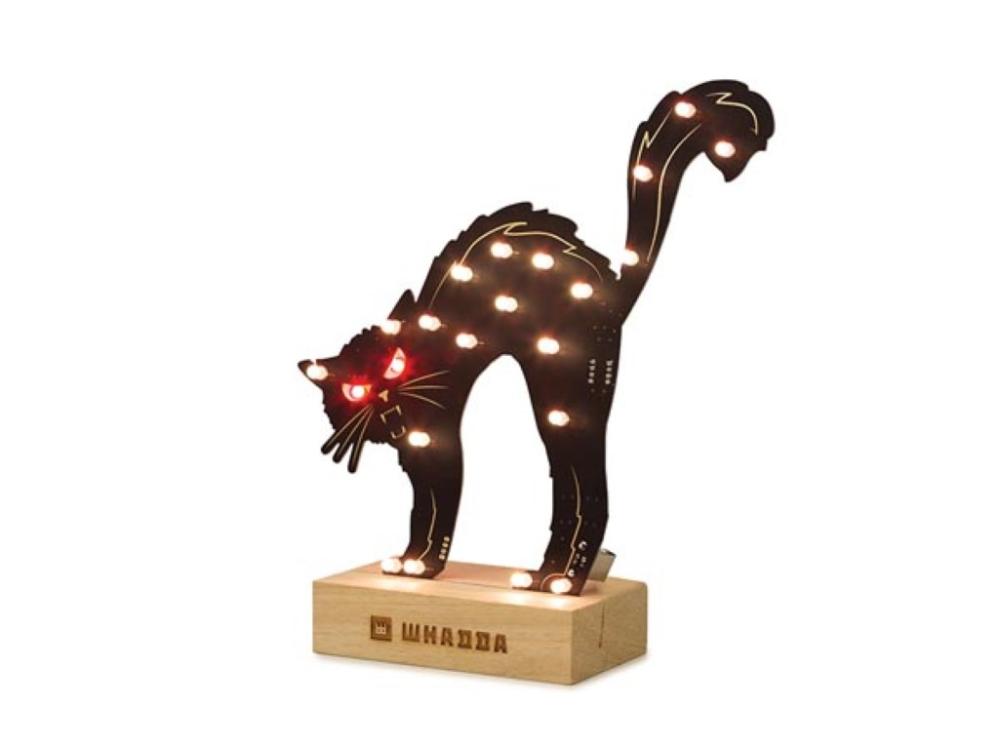

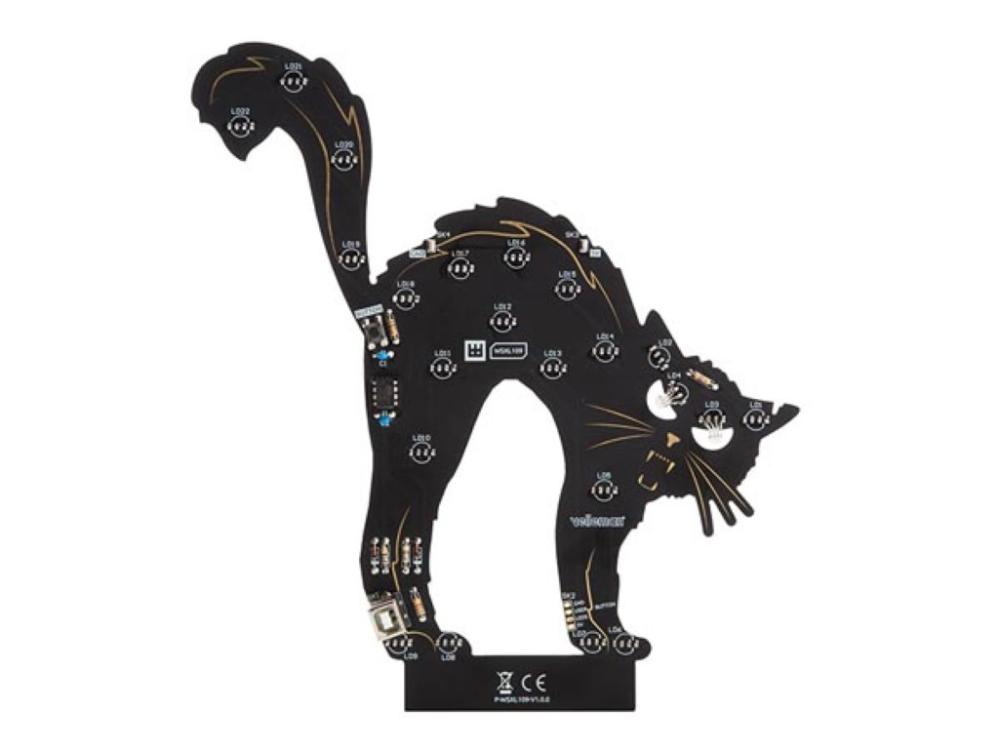

Large Halloween cat (32 cm high) with light effects, soldering kit. Looking for a fun DIY project for Halloween? Build a microcontroller-controlled Halloween cat with LEDs that changes color. This educational and creative kit consists of a large printed circuit board in the shape of a black misfortune cat. The kit comes with all the necessary components including a pre-programmed microcontroller and 22 addressable RGB LEDs (neopixel type). Each RGB LED is equipped with the well-known WS2812 control circuit which is fully digitally controlled from the microcontroller. The microcontroller, ATtiny 85 is pre-programmed with 5 different lighting effects. The kit comes with a practical wooden stand. Difficulty level soldering/assembly: medium. Powered from 5 VDC / 2.1A. Supplied with 1 meter USB cable which allows the cat to be powered from standard USB chargers that deliver 10W (2.1A) or more, e.g. 41031256 or 41021803.
Specifications:
- Operating voltage: 5 VDC
- Power consumption: 2.1A
- RGB LED - WS2812: 20 pcs ø5 mm + 2 pcs ø8 mm
- Dimensions: 23x9x32 cm
- Weight 370 g
