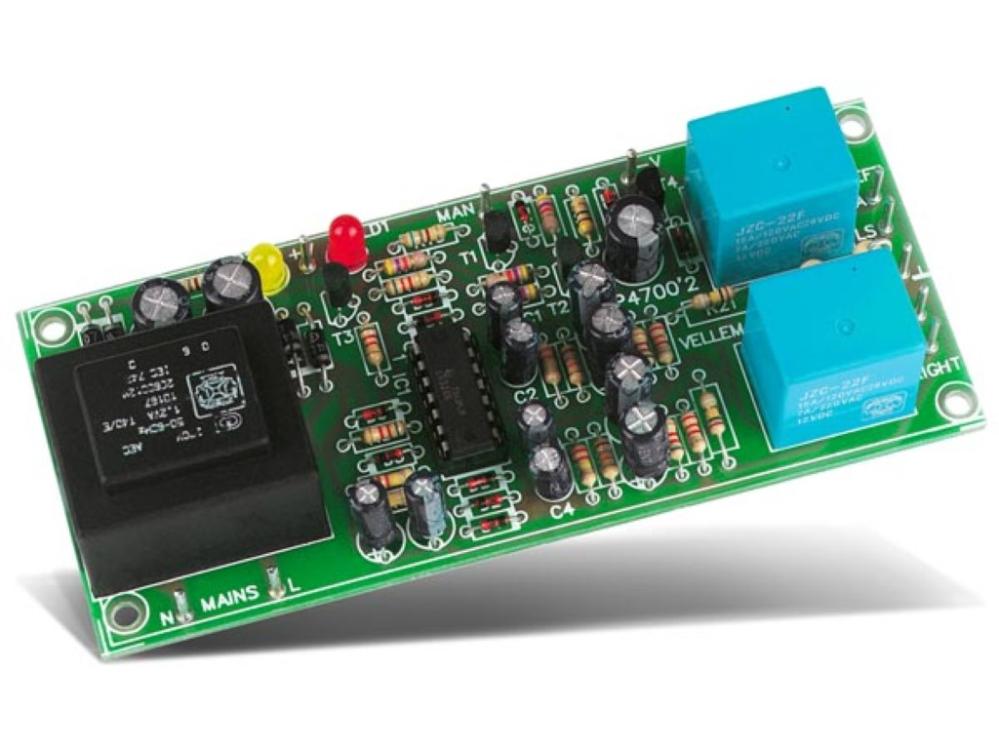

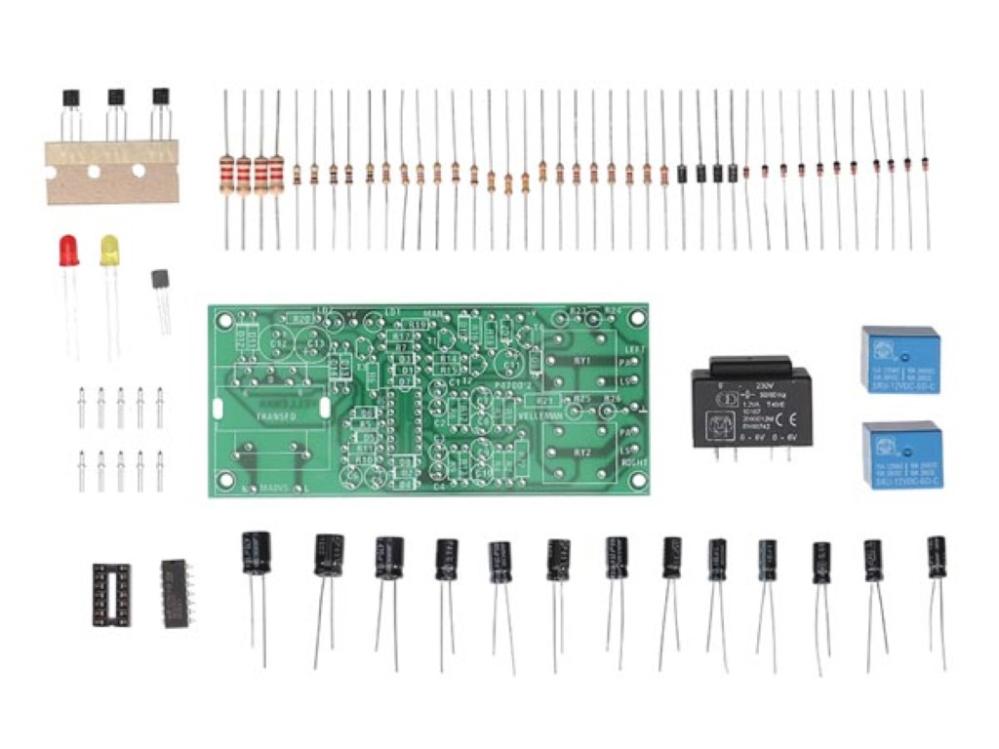

Speaker protector 2ch - soldering kit

This stereo speaker protection prevents switch-on clicks and DC components on the output of the amplifier connected.

Specifications

• switch-delay: ± 6 seconds
• DC protection: +1V/-1V
• max. input voltage: 200 Vpp + DC
• max. switching current: 10A
• LED indication for: WAIT (switch-on delay) and ERROR (DC on speaker output)
• supply voltage: 230 VAC
• PCB dimensions: 55 x 125 mm
