Product description

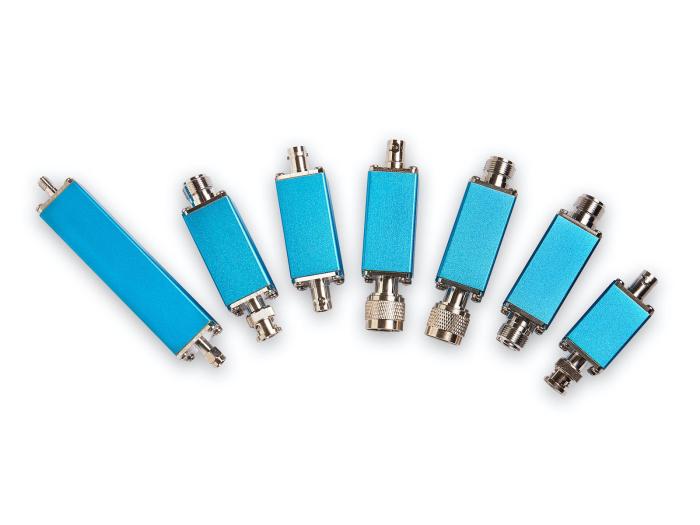

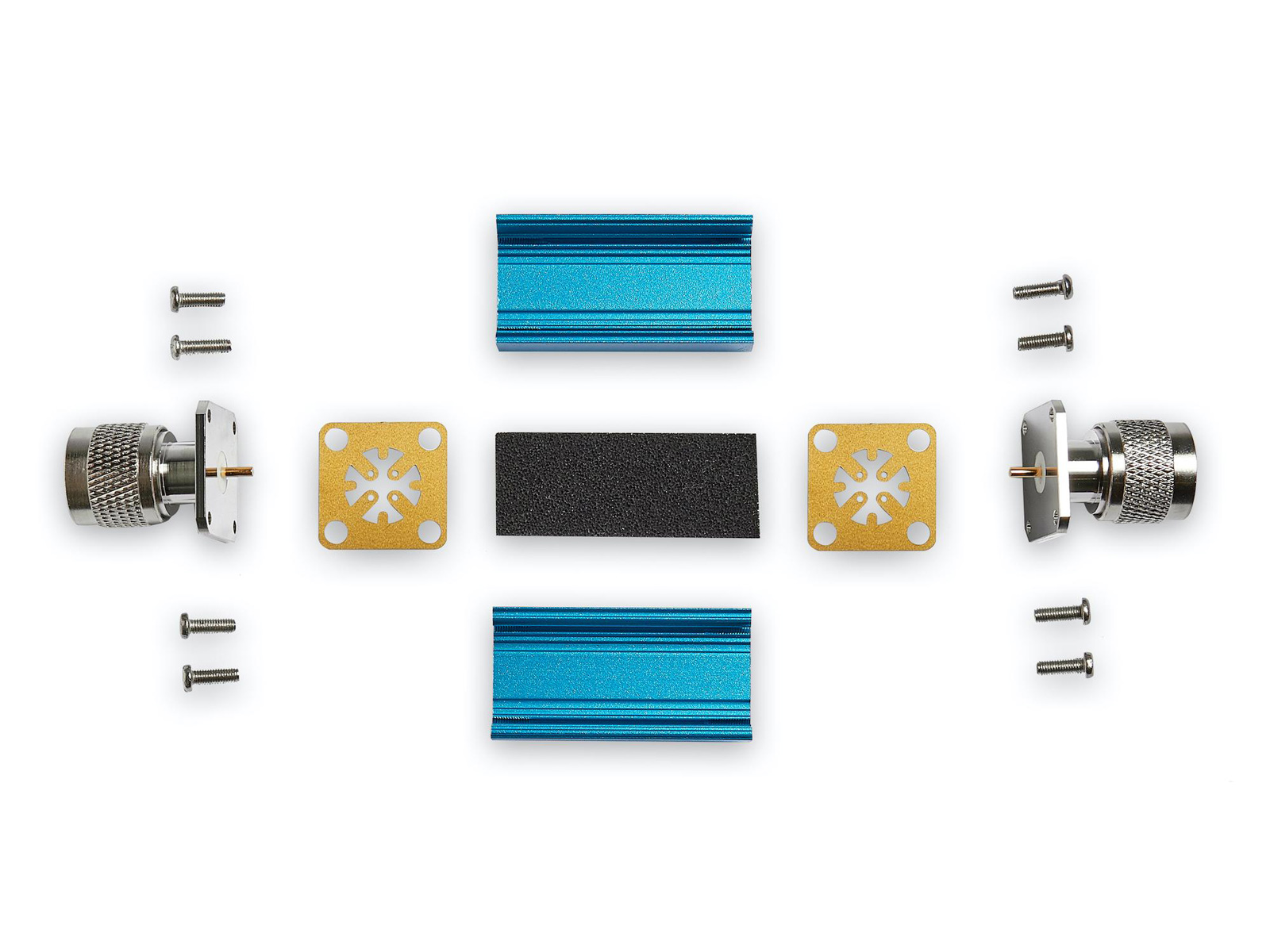

The TBRFH1 series of RF housings are ideal for RF building blocks operating up to 6 GHz. The housings consists of a 1 inch aluminium profile with mechanically matching RF connectors on each end. The user can select a wide range of RF connector combinations, various housing lengths and optional feed through capacitors. The housings come with RF absorbing pads to suppress coupling and cavity resonance. Solderable sheet metal ground pads, sandwiched between the connectors and the aluminium profile simplify establishing the ground connection.
SPECIFICATIONS
Outer cross section: 25,6 mm x 25,8 mm
Inner cross section: 20,4 mm x 20,6 mm
Housing material: anodized aluminium, exposed aluminium at front and rear side
Standard lengths: 35 mm, 50 mm, 100 mm (length of the connector not included)
Customisation of the length upon request
RF connector variants: N-Male, N-Female, BNC-Male, BNC-Female, SMA-Male, SMA-Female
any combination of the above connectors; other connectors or flat end plates upon request
Feed-through capacitor: 10nF / 50V; default centered placement, optional
RF absorbing foam: carbon loaded, 1 GHz to 18 GHz, adhesive backing, 3.2 mm thickness: - 8dB loss @ 10 GHz, 6.4 mm thickness: - 21,5 dB loss @ 10 GHz
SPECIFICATIONS
Outer cross section: 25,6 mm x 25,8 mm
Inner cross section: 20,4 mm x 20,6 mm
Housing material: anodized aluminium, exposed aluminium at front and rear side
Standard lengths: 35 mm, 50 mm, 100 mm (length of the connector not included)
Customisation of the length upon request
RF connector variants: N-Male, N-Female, BNC-Male, BNC-Female, SMA-Male, SMA-Female
any combination of the above connectors; other connectors or flat end plates upon request
Feed-through capacitor: 10nF / 50V; default centered placement, optional
RF absorbing foam: carbon loaded, 1 GHz to 18 GHz, adhesive backing, 3.2 mm thickness: - 8dB loss @ 10 GHz, 6.4 mm thickness: - 21,5 dB loss @ 10 GHz
