Product description

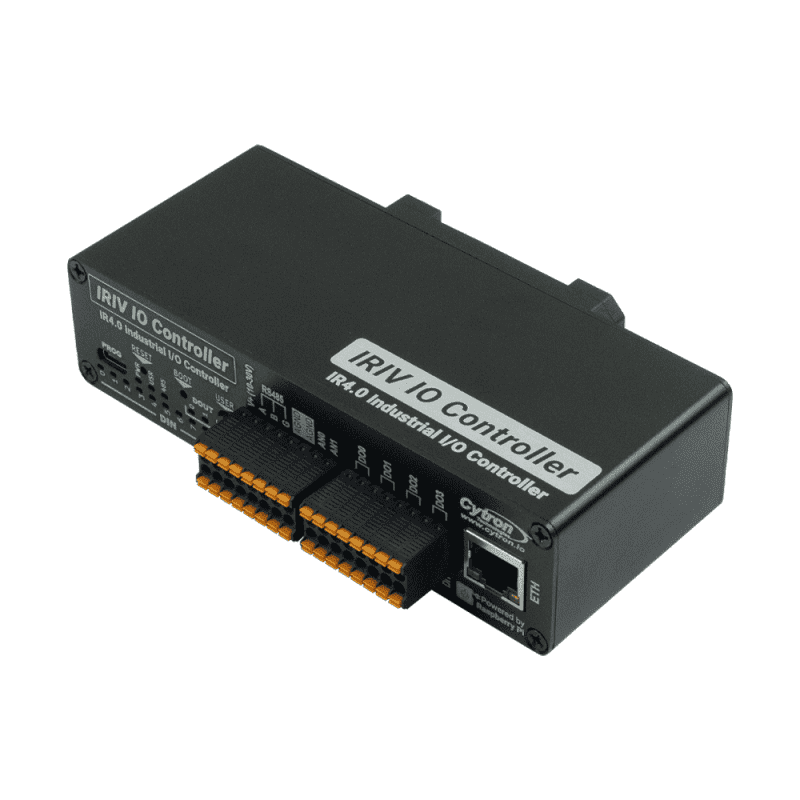

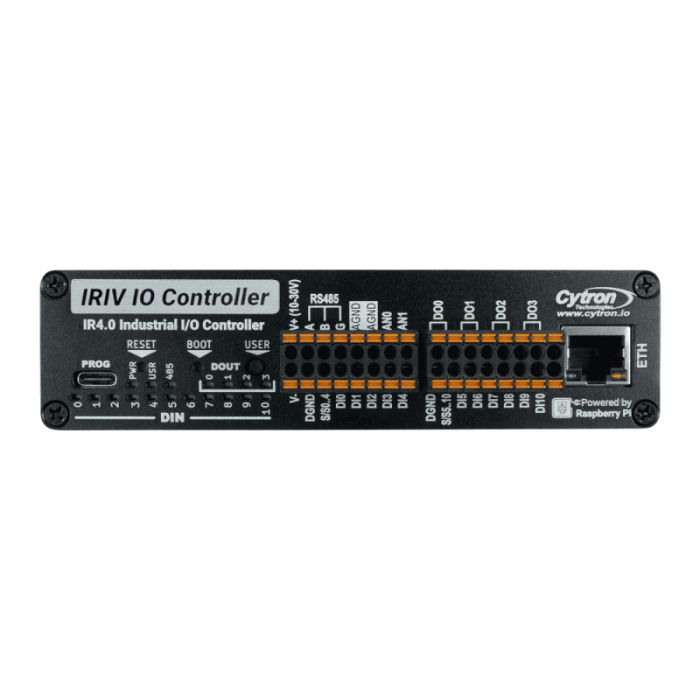

DIN-rail mounted industrial controller for automation based around Raspberry Pi RP2350 microcontroller. The device has several analog and digital inputs and outputs for reading sensors and controlling other devices. Several communication interfaces are available, such as Ethernet, RS-485 and USB. Powered with 10 - 30 VDC.

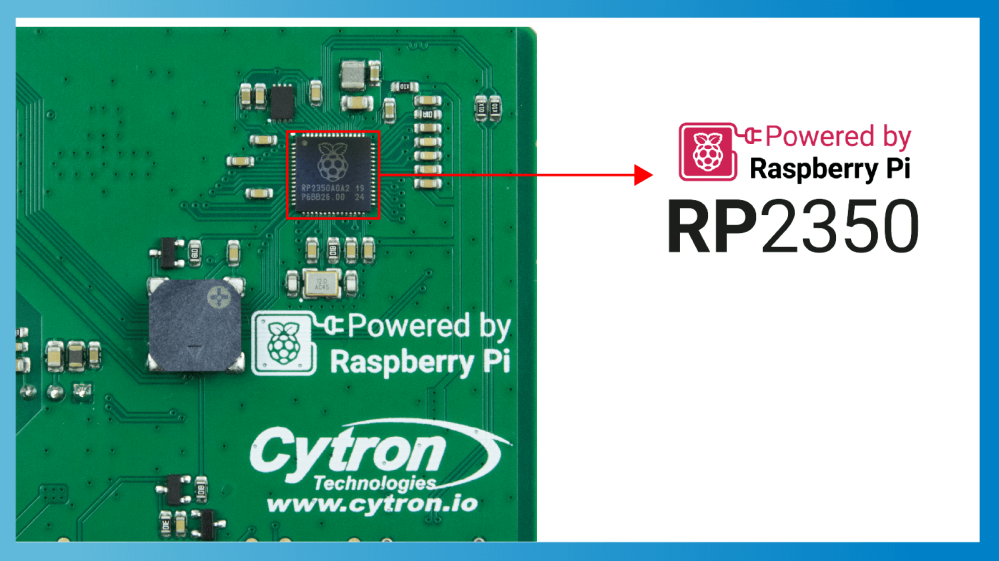

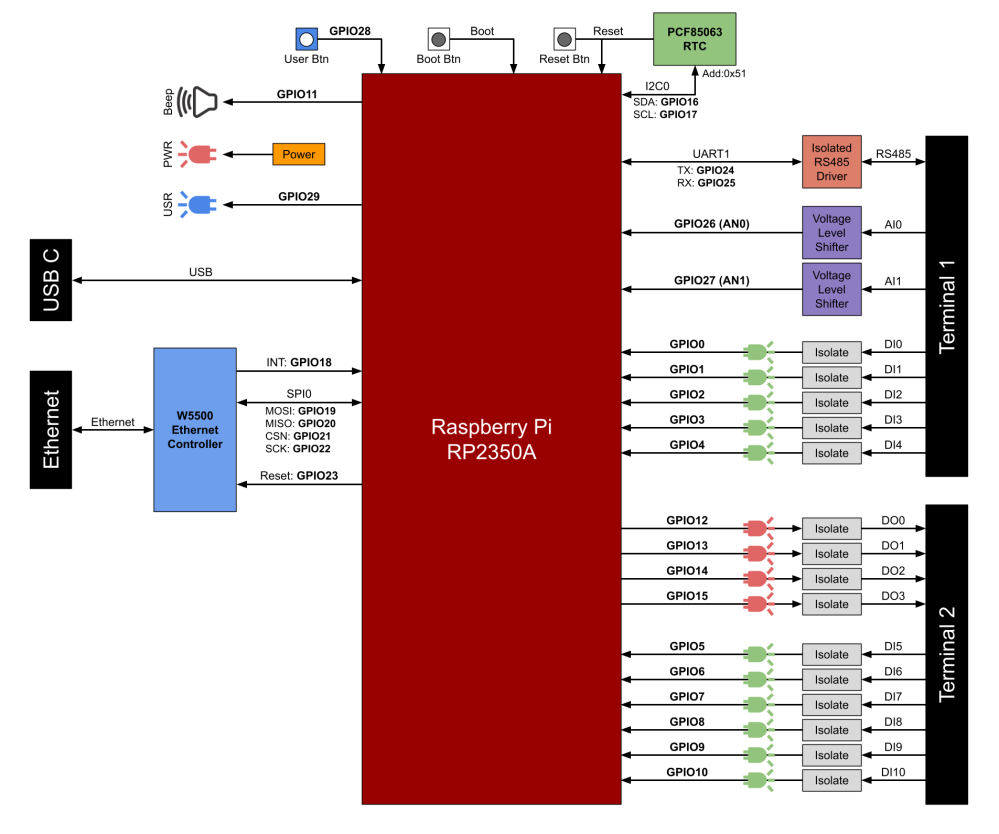

- Microcontroller: Raspberry Pi RP2350, Dual ARM Cortex-M33 @ 150MHz
- RAM: 520KB on-chip SRAM
- Storage: 2MB flash memory

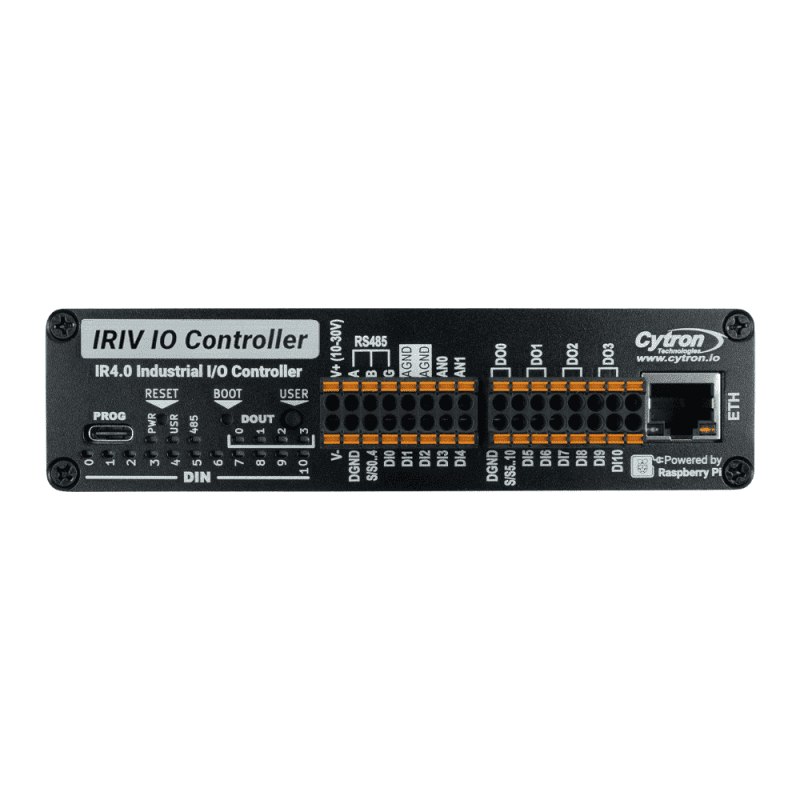

- Interface:
- 1x USB-C (For programming and configuration)
- 1x RJ45 Ethernet (via W5500 Ethernet controller)
- 1x isolated RS485
- 11x isolated digital input (up to 50V)
- 4x isolated digital output (up to 50V)
- 2x 12-bit analog input (0 - 10.56V / 0 - 42.58mA)
- Power Supply: DC 10-30V surge-protected
- Additional Features:
- PCF85063A Real Time Clock
- 1x Reset Button
- 1x Boot Button
- 1x Programmable Button
- 1x programmable LED
- Status LED for Power, RS485, DIN & DOUT
- 1x Passive Buzzer

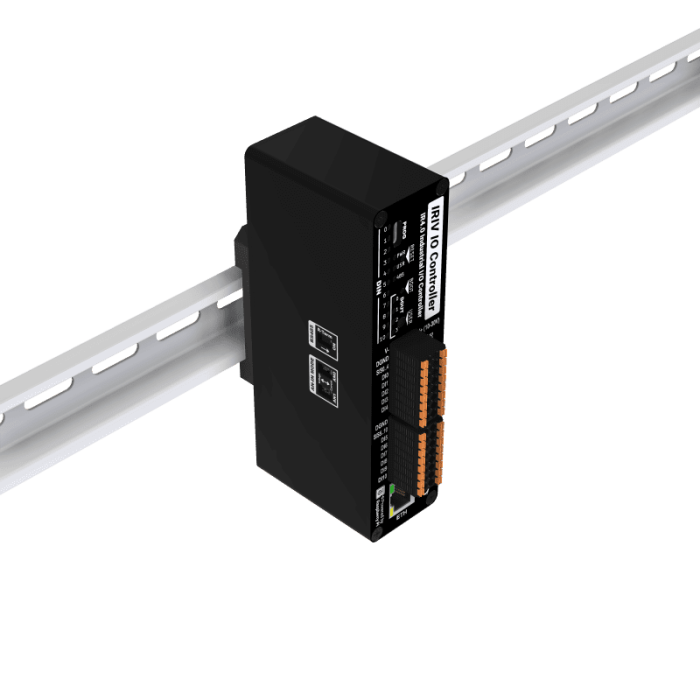

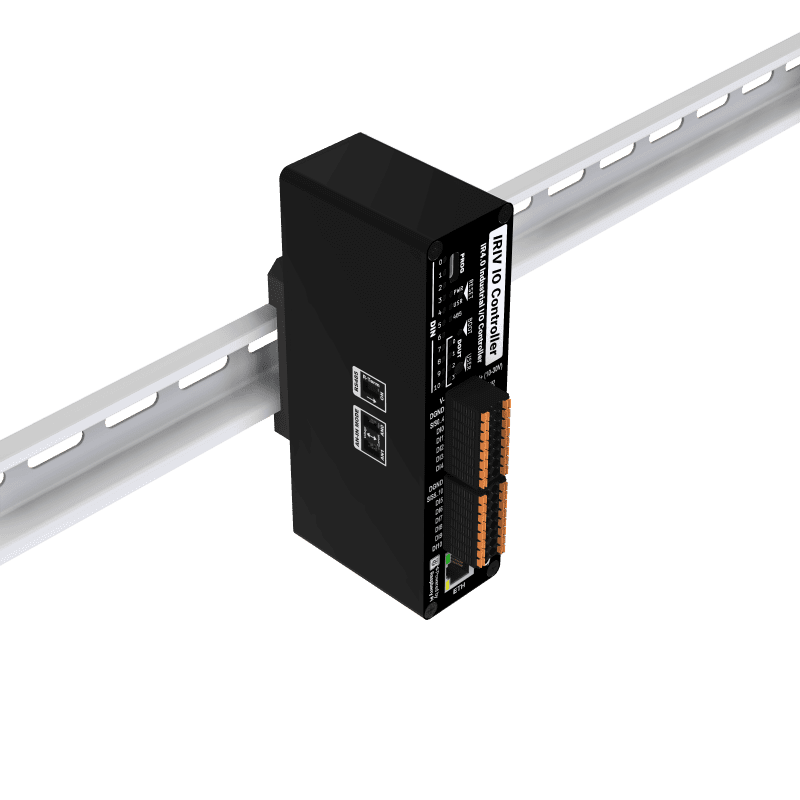

- Enclosure: Metal enclosure, fanless design, DIN rail mountable
