Product description

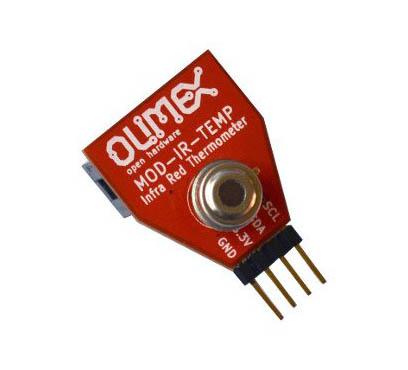

MOD-IR-TEMP is an infrared thermometer for non-contact temperature measurement module. It is based on the MLX90614BAA sensor, which is factory-calibrated for a wide temperature range:
- Sensor temperature: -40 to 125 °C
- Object temperature: -70 to 380 °C
MOD-IR-TEMP is a 3.3V module. When using it with an Arduino Uno R3/R4 (which operates at 5V), a logic level shifter is required to avoid damaging the module.
Specifications:
- High resolution: 0.02 °C
- High accuracy: ±0.5 °C within the 0 to 50 °C range
- Supply voltage: 3–3.6 V
- Logic voltage: 3.3 V
- Interface: I2C
- Breadboard compatible: Yes
- Included: 10-pin IDC flat cable (used for connection to UEXT boards, if desired)
- Dimensions: 22 × 35 mm
