Product description

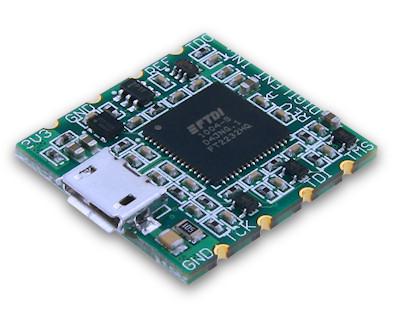

The Digiöent JTAG-SMT1 is a compact, complete and fully self-contained surface-mount programming module for Xilinx FPGAs. It can be accessed directly from all Xilinx tools, including iMPACT, Chipscope, and EDK. The module can be loaded directly onto a target board and reflowed like any other component.
The JTAG-SMT1 uses a 3.3V main power supply and a separate Vref supply to drive the JTAG signals. All JTAG signals use high speed, 24mA, three-state buffers that allow signal voltages from 1.8V to 5V and bus speeds of up to 30MBit/sec. JTAG signals are actively driven only during a programming event and are otherwise held in high-impedance, so the JTAG bus can be shared with other devices.
The SMT1 module is CE certified and fully compliant with the RoHS and REACH directives.
Details:
Small, complete, all-in-one JTAG programming solution for Xilinx FPGAs
Small form-factor (less than one sq. in.) surface-mount module can be directly loaded on target boards
Compatible with all Xilinx tools
Fully supported by the Adept SDK, allowing custom JTAG applications to be created
Able to drive JTAG bus at up to 30Mbit/sec
Single 3.3V supply
High-Speed USB2 port
Separate Vref drives JTAG signal voltages; Vref can be any voltage between 1.8V and 5V.
JTAG/TCK frequency settable by user
Uses micro-AB USB2 connector
