Calibration kit DC-4.5GHz SMA-male Siglent F603ME

Art no: 41018479 - Siglent
Shop this product, Calibration kit DC-4.5GHz SMA-male Siglent F603ME
price 4 802.50 SEK
Including 25% VAT
In stock, 1 package
Unit: Package

12 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

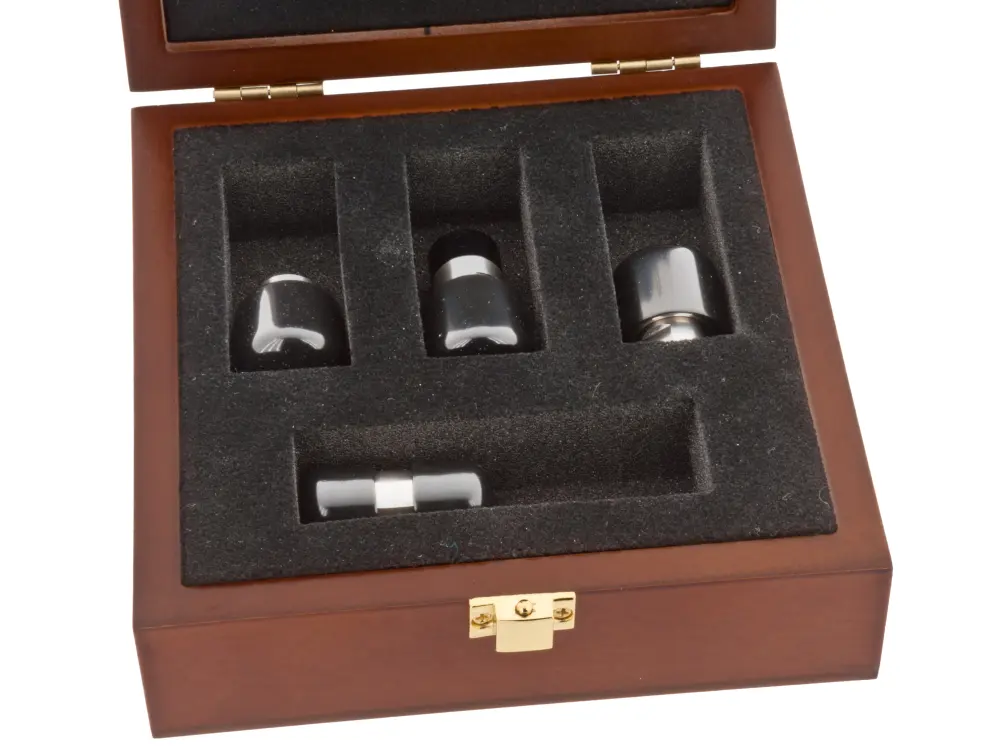

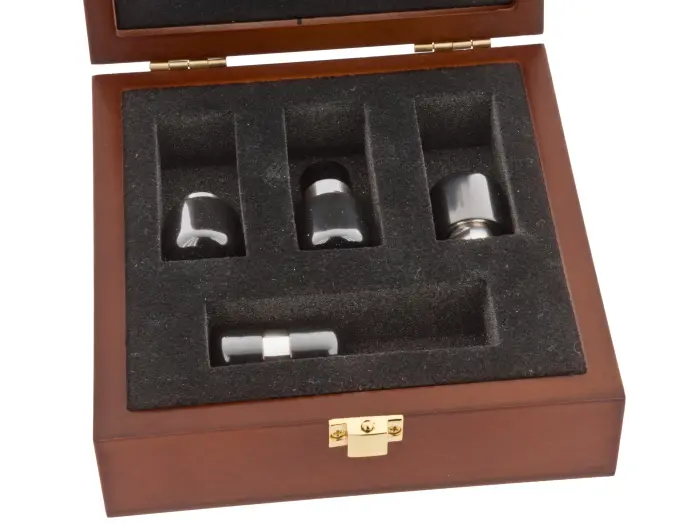

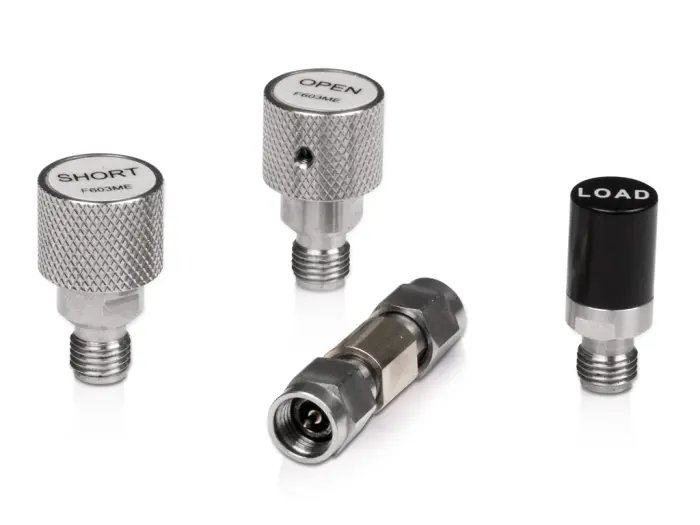

Siglent's F603ME is used to calibrate Siglent vector & spectrum analyzers. Standards include a fixed 50 ohm termination, an open load, a short load, and a through adaptor. The F603ME performance specifications are very similar to the Keysight 85032B mechanical calibration kit and it can be used as a replacement of 85032B.

Specifications:

  • Impendence: 50 ohm
  • Power: 1 W
  • Interfaces Standard: IEC 60169-23
  • Durability: >2000
  • Torque: 0.9 Nm
  • Spanner: 8 mm
  • Temperature: -15 °C to + 35 °C
Type Connector Specification
Open 3.5mm-Male DC – 4.5 GHz, Phase Deviation* ≤ ± 1.0°
Short 3.5mm-Male DC – 4.5 GHz, Phase Deviation ≤ ± 1.0°
Load 3.5mm-Male DC – 4.5 GHz, SWR ≤ 1.04 (Return Loss ≥ -34 dB)
Through 3.5mm-Male to 3.5mm-Male DC – 9 GHz, SWR ≤ 1.035 (Return Loss ≥ -35 dB), Insert Loss ≤ 0.2 dB, Delay= 56.6 ps



Product information

  • SKU:

    41018479
  • MPN:

    F603ME
