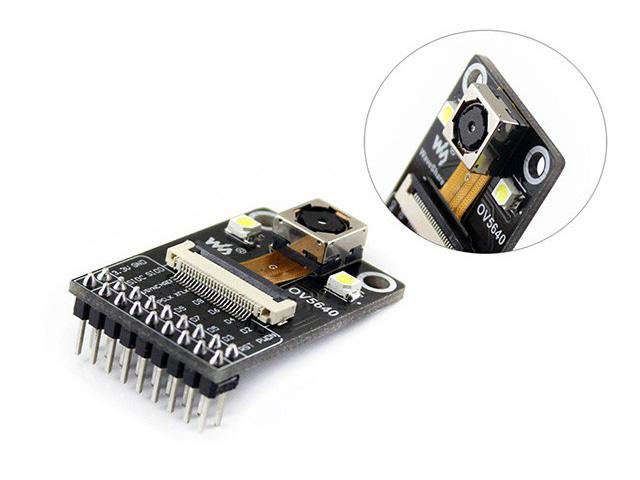

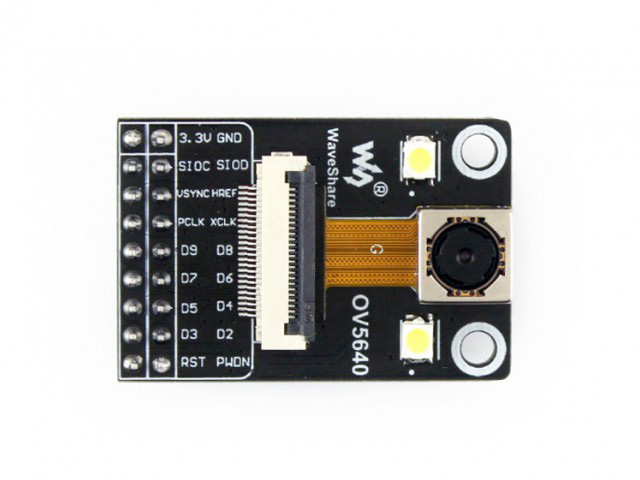

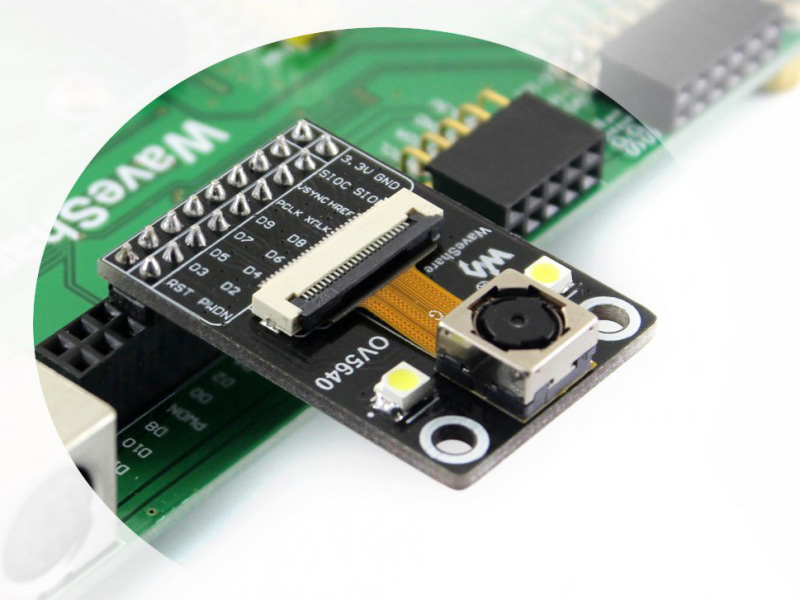

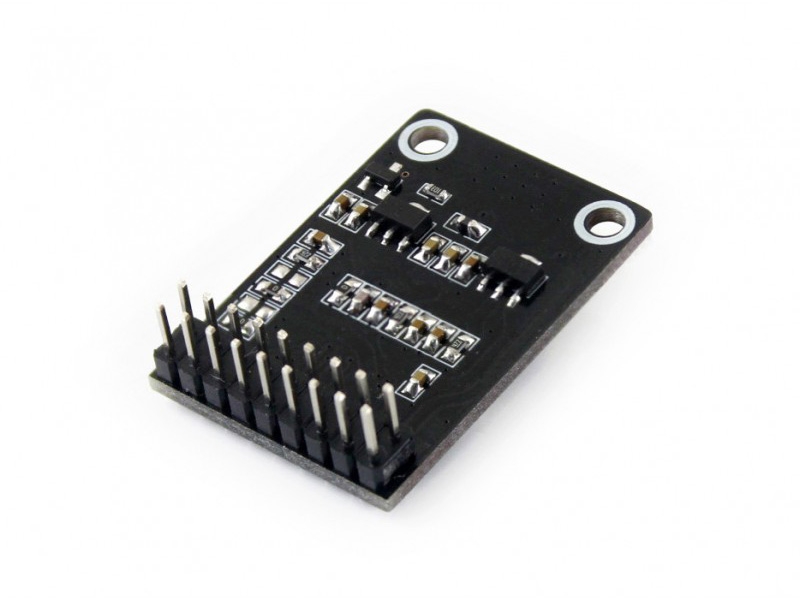

Camera module OC5640 5Mpix auto focus built-in flash

5Mpix camera module with autofocus and flash. The camera operates at 3.3V and communicates via I2C.

• Resolution: 2592x1944 (5Mpix)
• Autofocus
• Built-in LED flash
• Sensor: OV5640
• 1.4um x 1.4um pixels with OmniBSI technology, high sensitivity, low crosstalk, low noise
• Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
• Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
• Supports image scaling, panning, windowing, etc.

Lens:

• CCD size: 1/4 inch
• Aperture (F): 2.8
• Focal length: 3.37 mm (adjustable)
• Diagonal: 67.4 degrees

Output formats:

• YUV(422/420)/YCbCr422
• RGB565/555/444
• CCIR656
• RAW RGB
• Compressed data

• Operating voltage: 3.3V
• Control interface: SCCB (I2C compatible)
• Data interface: DVP 8-bit

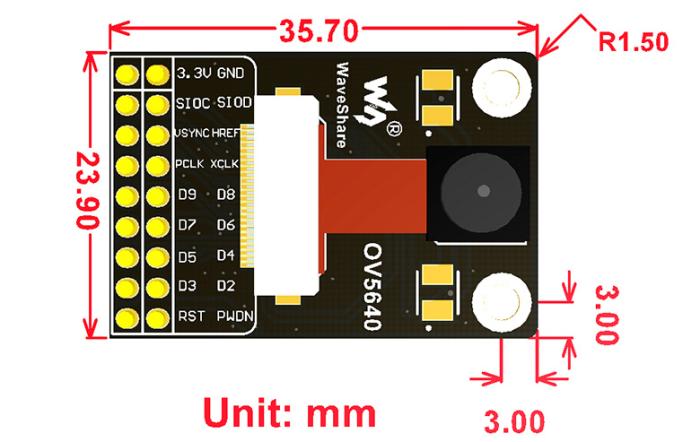

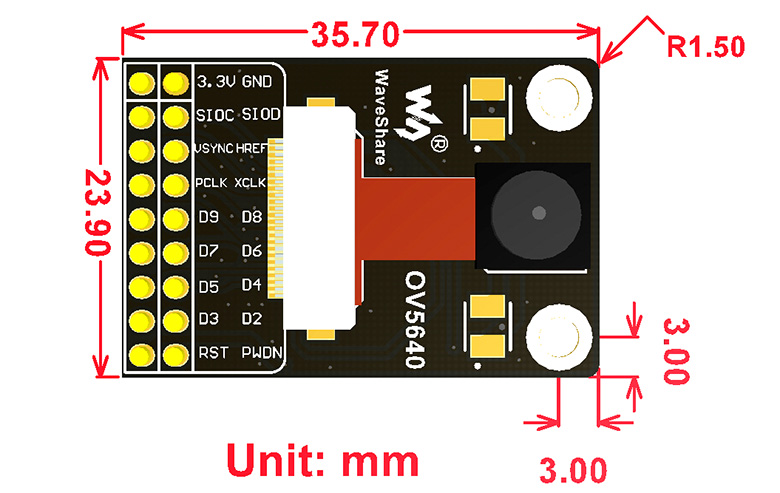

• Dimensions: 35.70 mm × 23.90 mm
