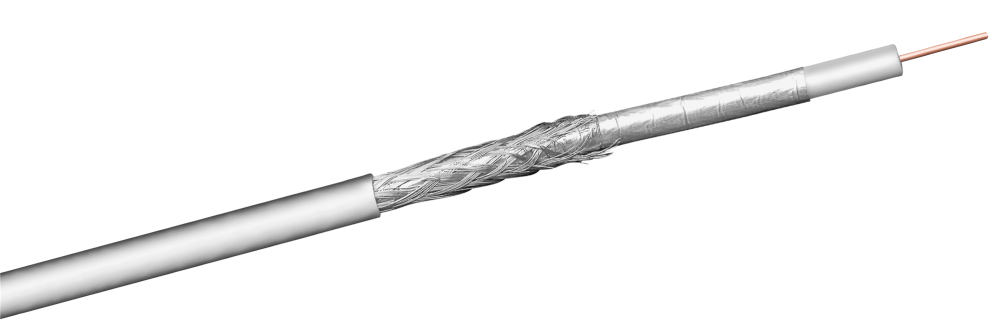

Coax cable 75 ohm ø6.8 mm Class A

Class A double screened coaxial cable for TV and Sat. Copper (Cu) inner conductor with aluminum (Al) shield. Suitable for fixed installation indoors, either with cable clips or in pipes.

Specifications:

• Inner conductor (Cu): ø1.13 mm
• Cable outer diameter: ø6.8 mm
• Shielding: Class A
• Shielding type: braid (Al) + foil (Al).
• Shielding attenuation: 100 dB
• Impedance: 75 ohms

Attenuation at 20°C (in dB per 100m)

• 50MHz: 4.7dB
• 100MHz: 6.2dB
• 200MHz: 8.4dB
• 300MHz: 10.6dB
• 500MHz: 13.9dB
• 800MHz: 17.2dB
• 1000MHz: 19.5dB
• 1350MHz: 23.0dB
• 1750MHz: 26.2dB
• 2050MHz: 28.5dB
• 2150MHz: 29.5dB
