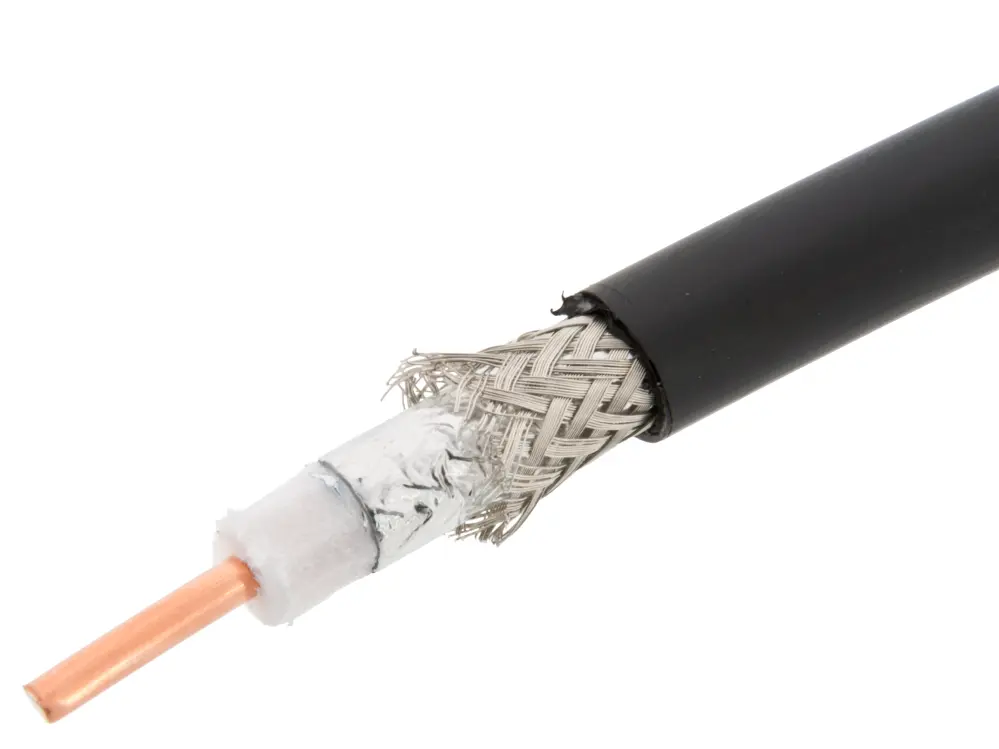

COAX-400 coaxial cable ø10mm low-loss

Low-loss coaxial cable with the same diameter as RG213.
Double-shielded with aluminium foil and tinned copper, solid core of copper coated aluminium (CCA) and PE foam dielectric. Black PE shield.

Impedance: 50ohm
Max votage: 2500V DC
Max power: 15kW
Minimum bend radius: 130mm
Capacitance: 78.4pF/m
Inductance: 0.2uH/m
Shielding >90dB
Outer diameter: 10.3mm

Damping (typical) per 100m (compared to RG213)
3MHz 0.7dB (1.1dB)
10MHz 1.2dB (2.0dB)
30MHz 2.2dB (3.4dB)
50MHz 2.9dB (4.5dB)
100MHz 3.9dB (6.4dB)
150MHz 5.0dB (8.0dB)
450MHz 8.9dB (14.6dB)
900MHz 13.7dB
1500MHz 16.9dB
2500MHz 26.1dB

Weight 0.1kg/m
