Component tester - kit

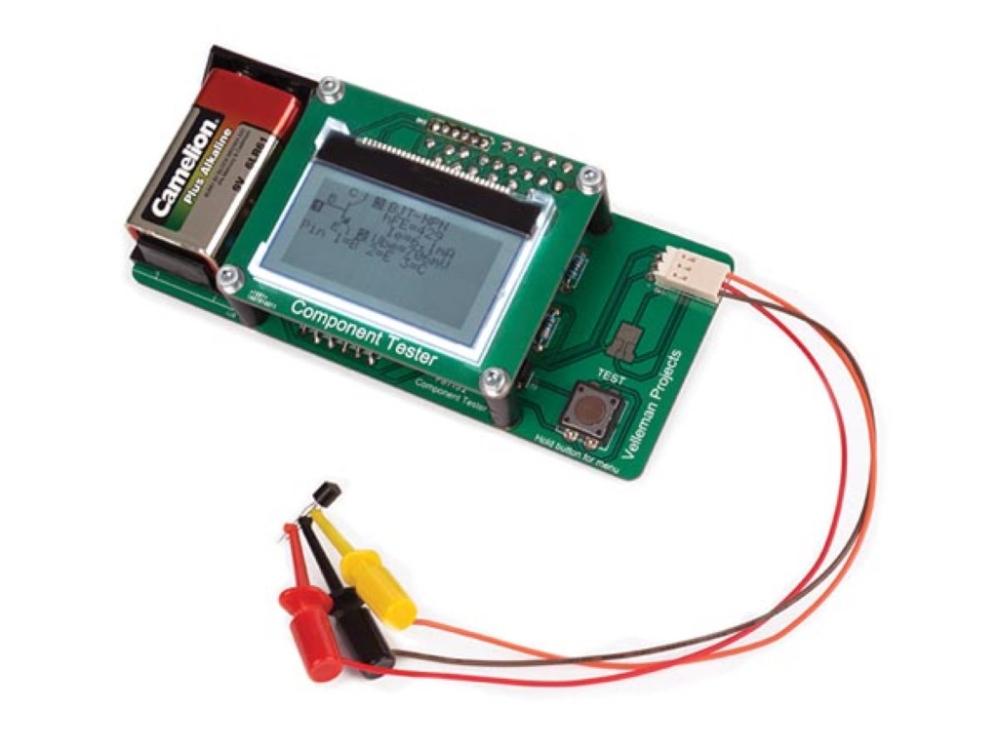

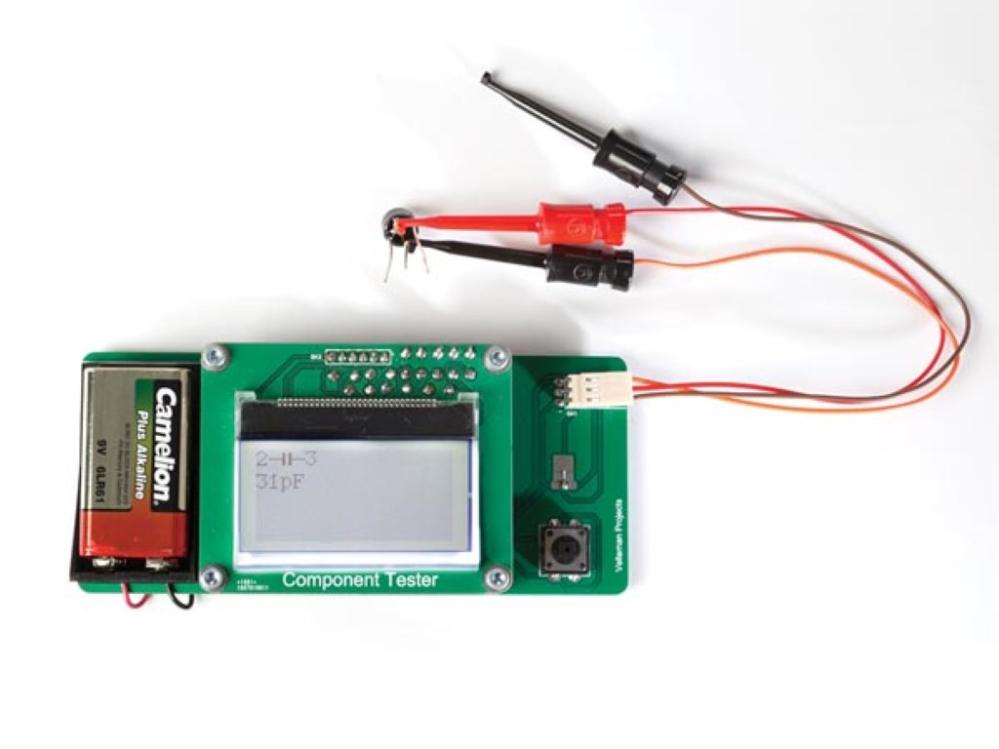

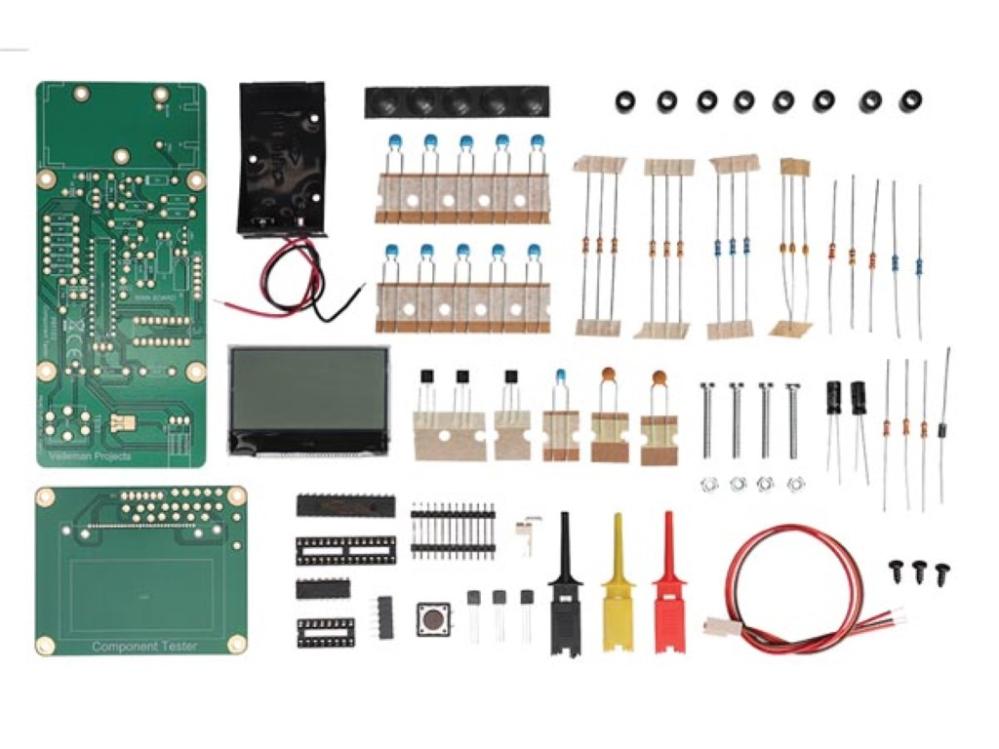

Build a component tester for semiconductors, resistors, capacitors and coils. Showing pin out. Auto stand-by.

The following components can be measured:

• BJT (Bipolar Junction Transistor)
• JFET (Junction Field Effect Transistor)
• E-IGBT (Insulated-Gate Bipolar Transistor)
• D-IGBT (Dual Insulated Gate Bipolar Transistor)
• E-MOS (Enhancement Mode MOSFET)
• D-MOS (Double-diffused Metal-Oxide-Semiconductor)
• Diode
• Resistor range: 0.1 Ohm to 50 MOhm
• Inductance range: 0.01 mH to 20 H
• Capacitance range: 28 pF to 100 mF

Specifications:

• Standby current: 20 nA
• Power supply: 9 V battery (battery purchased separately)
• Test current approx: 20 mA
• Test interval: 2 sec.
• Dimensions: 137x60x30 mm
• Weight: 150 grams
• Soldering level: Advanced
• Recommended tools: Soldering iron/soldering station, soldering iron, side cutter and soldering mat.
