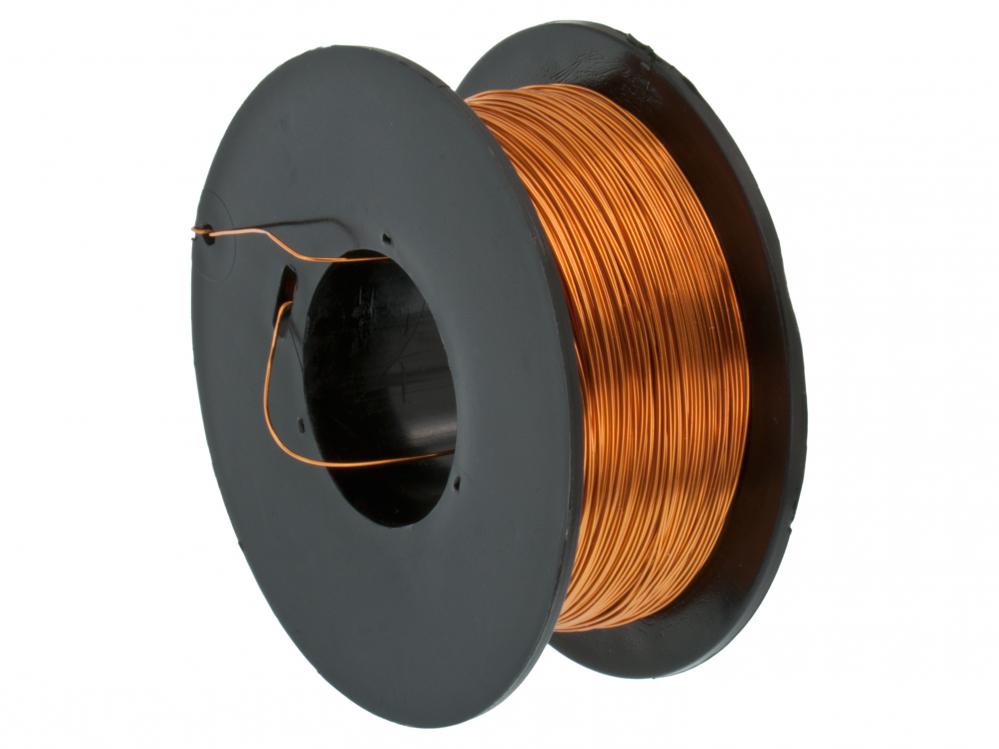

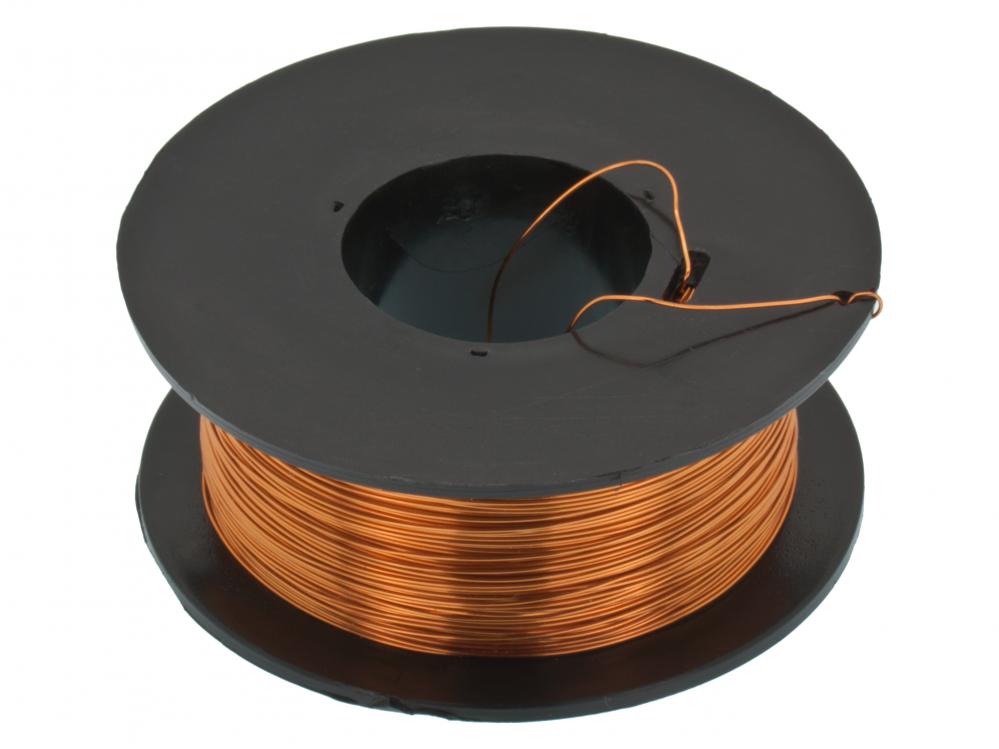

Copper wire 0.20mm reel 360m
Art no: 41004112
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Insulated copper wire for coils, transformers and more.
The wire is directly solderable up to ø0.9mm.
Dimensions thicker than ø0.9mm can be soldered after stripping.
* Length: 360m
* Diameter: ø0.20mm
* Temperature range: 200°C
* Insulation: PUR (polyuretane)
* Weight: 100g
* Dimensions: ø54 x 22mm (hole: ø22mm)
The wire is directly solderable up to ø0.9mm.
Dimensions thicker than ø0.9mm can be soldered after stripping.
* Length: 360m
* Diameter: ø0.20mm
* Temperature range: 200°C
* Insulation: PUR (polyuretane)
* Weight: 100g
* Dimensions: ø54 x 22mm (hole: ø22mm)
Technical data
| Attribute | Value |
|---|---|
Awg |
32
|
Color |
Koppar
|
Conductor-area |
0.03
|
Conductors |
1
|
Outer-diameter |
0.2
|
Rohs |
RoHS-kompatibel
|
Sheath-material |
PUR
|
Shielded |
Nej
|
Strands |
Entrådig
|
SKU:
41004112
