Terminal block 0.3-3.3mm² 4-p chassis

Art no: 41016302 - TE Connectivity - AMP
Shop this product, Terminal block 0.3-3.3mm² 4-p chassis
price 26.50 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 26:5010pcs = 238:5025pcs = 496:25

Quantity discount
QuantityPrice
1 till 9
26.50 SEK
10 till 24
23.85 SEK
25 till
19.85 SEK
In stock, 13 pcs
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

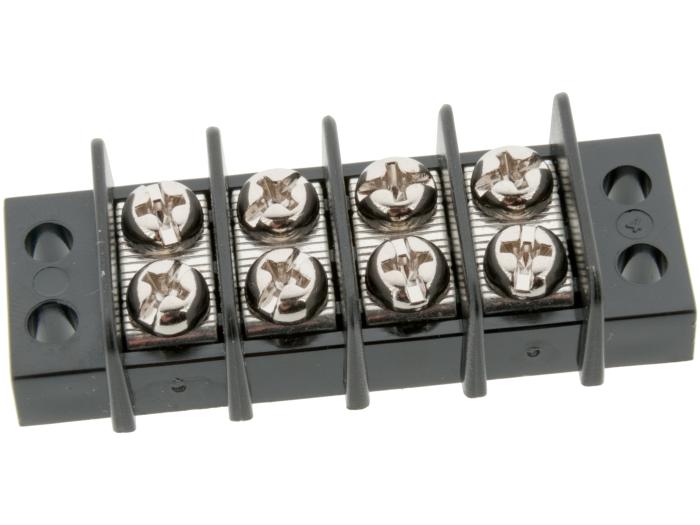

Terminal block for chassis mounting. The block has four poles each with two screw connections. Barriers between poles prevent short-circuits.

* Poles: 4
* Conductor area: 0.3 - 3.3mm² (AWG 22 - 12)
* Max voltage: 300VAC
* Max current: 20A
* Pitch: 9.5mm
* Working temperature: -40 to +105°C

Technical data

Technical data/attributes for this product
Attribute Value
Poltal
4
Rohs
RoHS-kompatibel
Termination
Skruv
  • SKU:

    41016302
