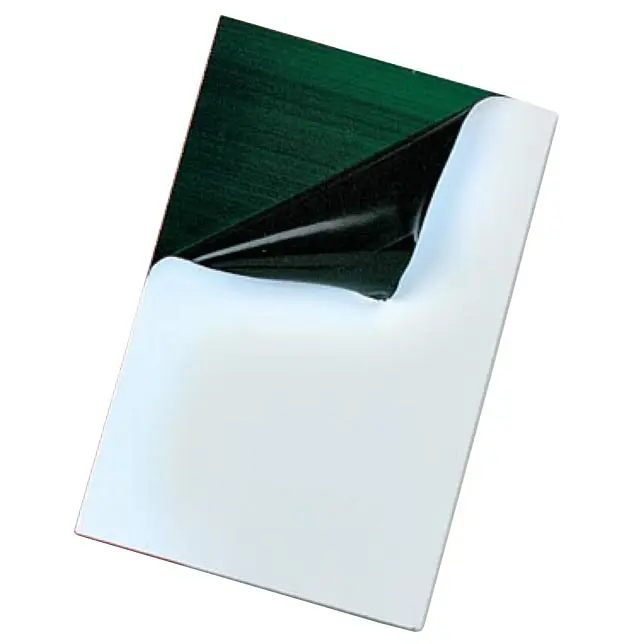

PCB w. photoresist fibreglass 100x160mm double

Art no: 41000467 - Velleman
Shop this product, PCB w. photoresist fibreglass 100x160mm double
price 55 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 55:-10pcs = 495:-

Quantity discount
QuantityPrice
1 till 9
55 SEK
10 till
49.50 SEK
In stock, 10 pcs
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

High quality FR4 fiberglass laminate, ideal for producing small series of PCBs. Coated with a positive high-resolution photoresist that has an inherent ability to reduce defects caused by dust and dirt on exposure. The photoresist is protected by UV-blocking protective film. The protective film is removed before exposure. The card is packaged in a dark and sealed aluminum pouch to provide extra protection against air pollution, moisture and light radiation.

Specifications:

  • Material: Fiberglass, FR4 epoxy resin
  • Photoresist: Positive
  • Card dimensions: 100x160 mm
  • Card thickness: 1.5 mm
  • Copper lamination: 35µm, double-sided   single-side
  • Spectral UV sensitivity: 350-400 nm (peak at 365 nm)

Technical data

Technical data/attributes for this product
Attribute Value
Laminat
Dubbel
Tjocklek
1.5 mm
µm
35
  • SKU:

    41000467
  • MPN:

    PFD1
