PCB w. photo resist fibreglass 100x160mm 1.0mm 35u single

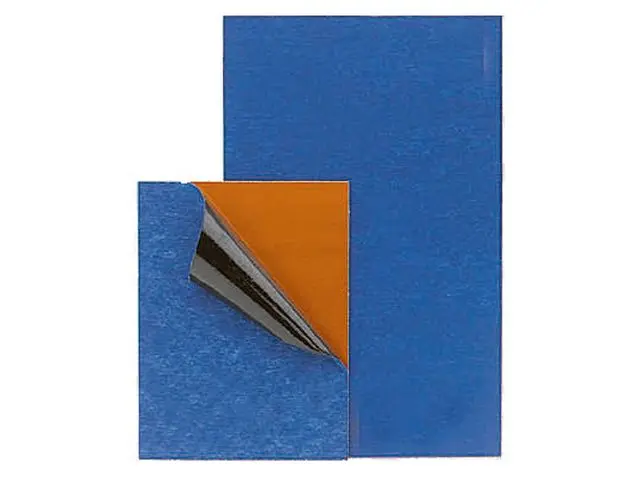

High quality FR4 fiberglass laminate, ideal for producing small series of PCBs. Coated with a positive high-resolution photoresist that has an inherent ability to reduce defects caused by dust and dirt on exposure. The photoresist is protected by UV-blocking protective film. The protective film is removed before exposure.

Specifications:

• Material: Fiberglass, FR4 epoxy resin
• Photoresist: Positive
• Card dimensions: 100x160 mm
• Card thickness: 1.0 mm
• Copper lamination: 35 µm, single-side
• Spectral UV sensitivity: 350-400 nm (peak at 365 nm)
