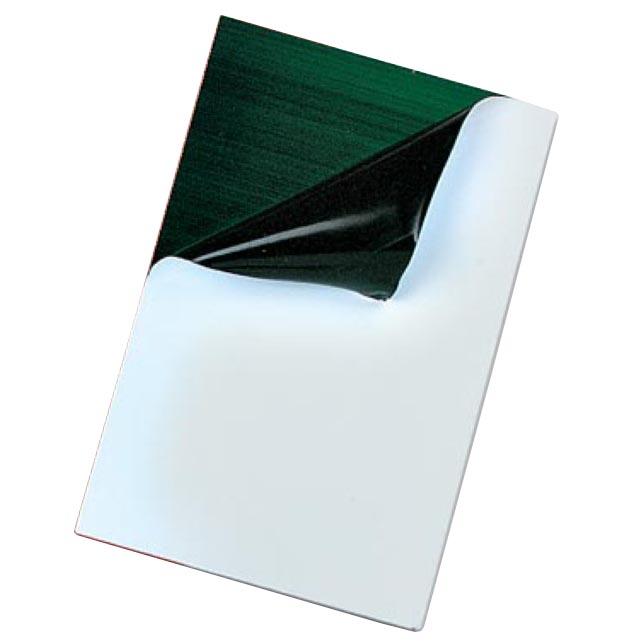

PCB w. photo resist fibre glass 100x220 double
Art no: 41002280
Sorry, this product is outdated and no longer active
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
High quality FR4 fiberglass laminate, ideal for producing small series of PCBs. Coated with a positive high-resolution photoresist that has an inherent ability to reduce defects caused by dust and dirt on exposure. The photoresist is protected by UV-blocking protective film. The protective film is removed before exposure. The card is packaged in a dark and sealed aluminum pouch to provide extra protection against air pollution, moisture and light radiation.
Specifications:
- Material: Fiberglass, FR4 epoxy resin
- Photoresist: Positive
- Card dimensions: 100x220 mm
- Card thickness: 1.5 mm
- Copper lamination: 35µm, double-sided
- Spectral UV sensitivity: 350-400 nm (peak at 365 nm)
Technical data
Attribute | Value |
---|---|
Laminat |
Dubbel
|
Tjocklek |
1.5 mm
|
µm |
35
|
SKU:
41002280
