Product description
DMOS Full Bridge Driver

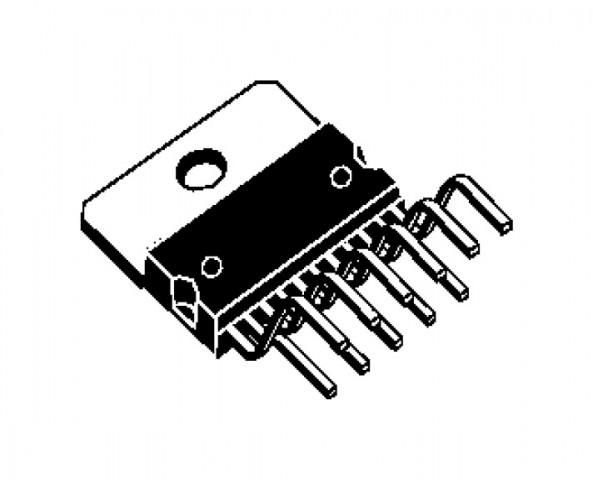

Multiwatt11 package
The L6203 is a full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and uC compatible. Each channel (half-bridge) of the device is controlled by a separate logic input, while a common enable controls both channels.
Features
* Supply voltage up to 48V
* 5A Max peak current
* Total RMS current up to 4A
* RDS (ON) 0.3 ? (typical value at 25 °C)
* Cross conduction protection
* TTL compatible drive
* Operating frequency up to 100 kHz
* Thermal shutdown
* Internal logic supply
* High efficiency
Multiwatt11 package
The L6203 is a full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and uC compatible. Each channel (half-bridge) of the device is controlled by a separate logic input, while a common enable controls both channels.
Features
* Supply voltage up to 48V
* 5A Max peak current
* Total RMS current up to 4A
* RDS (ON) 0.3 ? (typical value at 25 °C)
* Cross conduction protection
* TTL compatible drive
* Operating frequency up to 100 kHz
* Thermal shutdown
* Internal logic supply
* High efficiency
