Product description

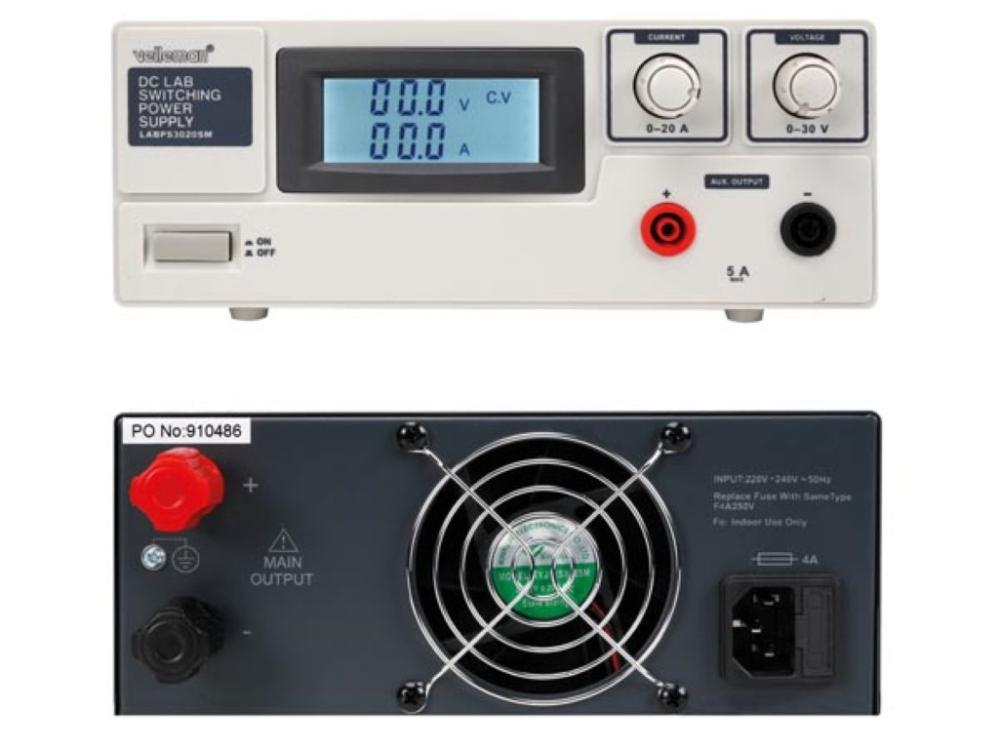

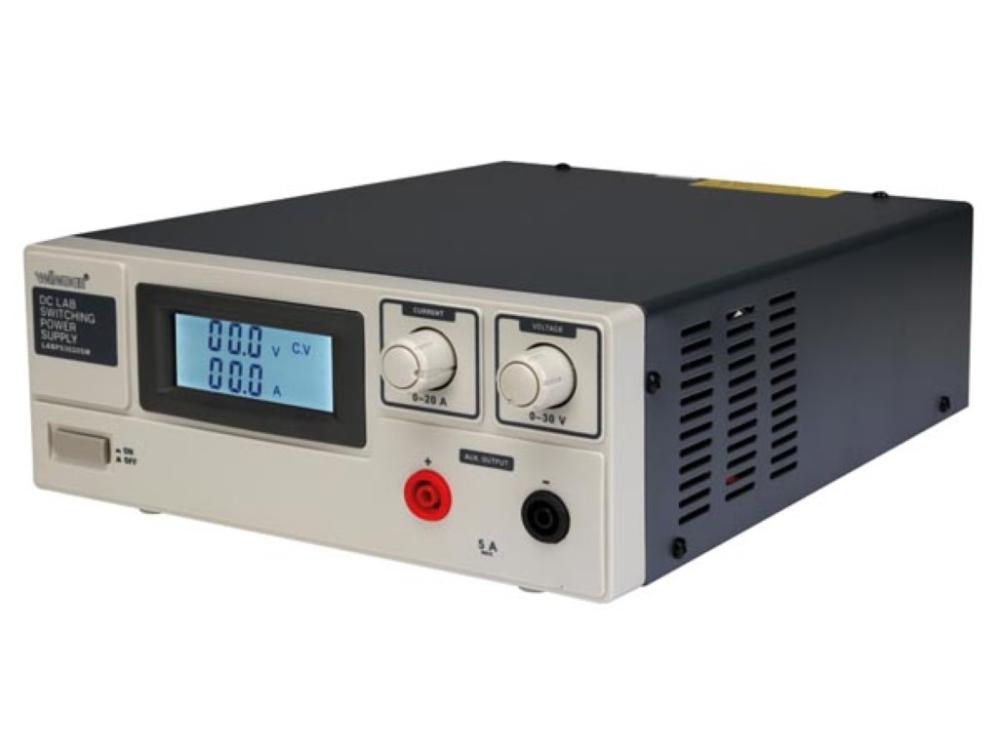

Powerful switched lab power supply suitable for laboratories, education, service and maintenance, battery charging, etc. Output voltage and current limitation are adjustable. Constant voltage (CV) or constant current (CC) operation. Built-in cooling fan. Protected against short circuit, overload, overvoltage and overheating.
Specifications:
- Input voltage: 230 VAC
- Number of channels: 1
- Output voltage: 0-30 VDC
- Resolution of voltage: 0.1 V
- Current: 0-30 A
- Resolution for current: 0.1 A
- Front connection: 4 mm banana plugs
- Rear connection: Pole screws
- Separate earth screw: Yes
- Power: 600W
- Ripple: ≤200 mV
- Fuse: 5x20, T 4 A, 250 V
- Dimensions: 336x87x214 mm
- Weight: 2.7 kg
