Product description

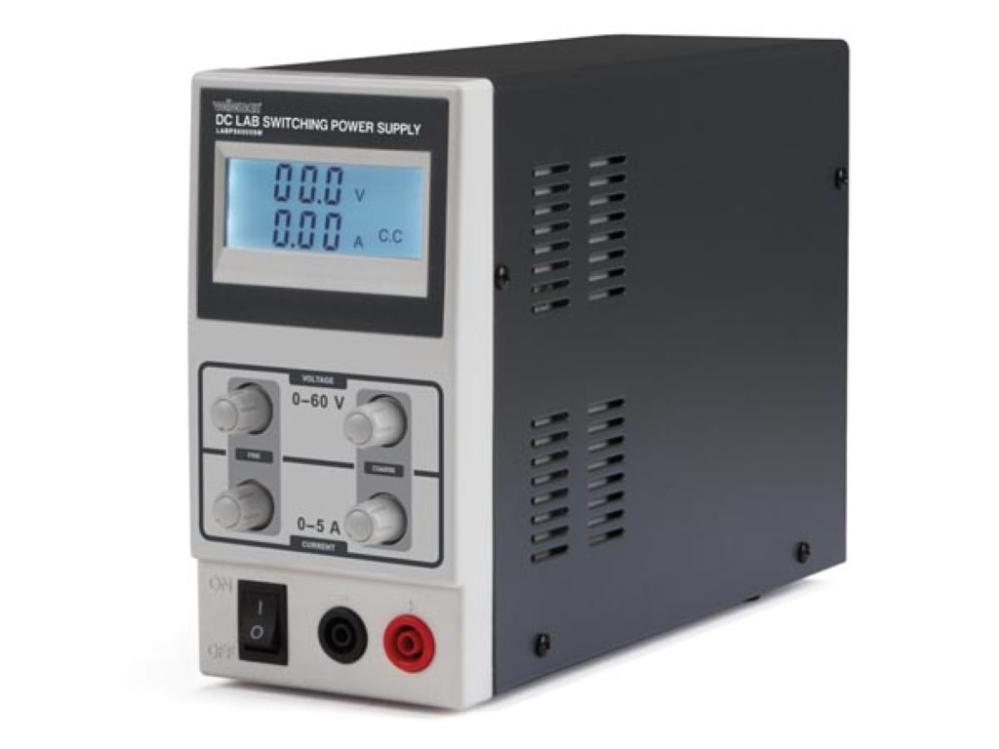

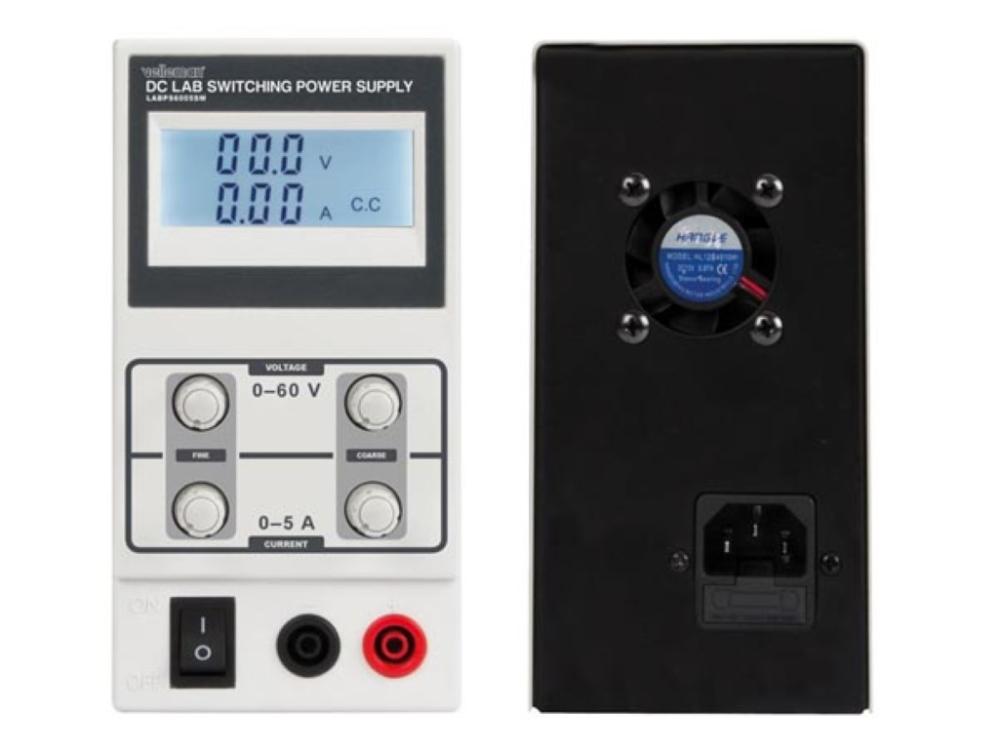

300 W switched lab power supply suitable for laboratories, education, service and maintenance, battery charging, etc. Output voltage and current limiting are adjustable. Coarse and fine adjustment for both current and voltage. Constant voltage (CV) and constant current (CC) operation. Built-in cooling fan. Protected against short circuit, overload, overvoltage and overheating.
Specifications:
- Input voltage: 220-240 VAC
- Number of channels: 1
- Output voltage: 0-60 VDC
- Resolution of voltage: 0.1 V
- Current: 0-5 A
- Resolution for current: 10 mA
- Connection: 4 mm banana plugs
- Power: 300W
- Ripple: ≤150 mV
- Fuse: 5x20, T 5 A, 250 V
- Dimensions: 230x160x85 mm
- Weight: 1.6 kg
