Product description

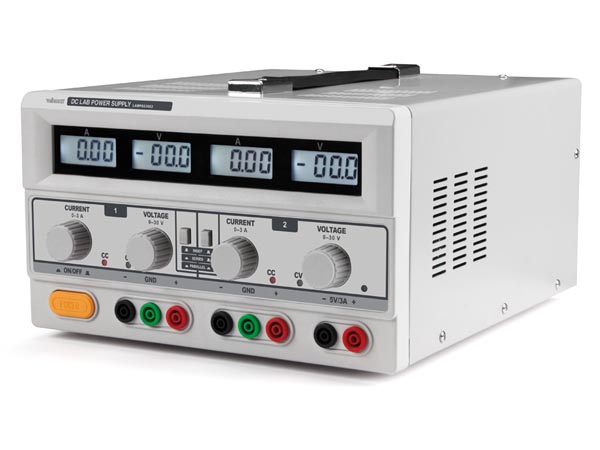

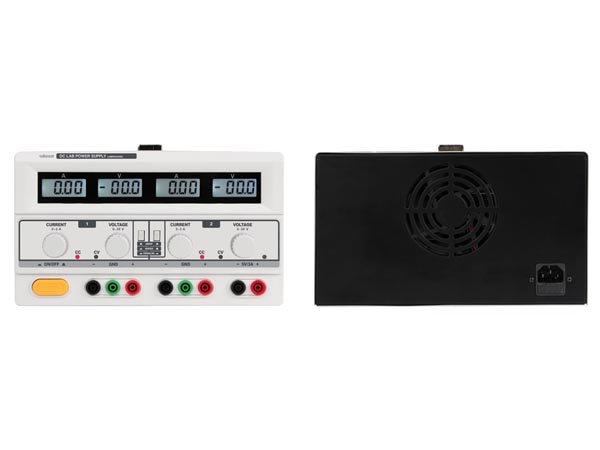

Linear lab power supply with 3 channels. Suitable for laboratories, education, service and maintenance, battery charging, etc. Output voltage and current limitation are adjustable. Coarse and fine adjustment for both current and voltage. Constant voltage (CV) and constant current (CC) operation. The channels (1+2) can be connected in parallel for double current output or in series for double output voltage. Built-in cooling fan. Protected against short circuit, overload, overvoltage and overheating.
Specifications:
- Input voltage: 230 VAC
- Number of channels: 3
- Output voltage channel 1-2: 2x 0-30 VDC
- Resolution voltage: 0.1 V
- Current channel 1-2: 2x 0-3 A
- Resolution current: 10 mA
- Fixed output, channel 3: 5 V / 3A
- Connection: 4 mm banana plugs
- Ripple: ≤1 mV
- Fuse: 5x20, T 3 A, 250 V
- Dimensions: 360x265x165 mm
- Weight: 7.14 kg
