Product description

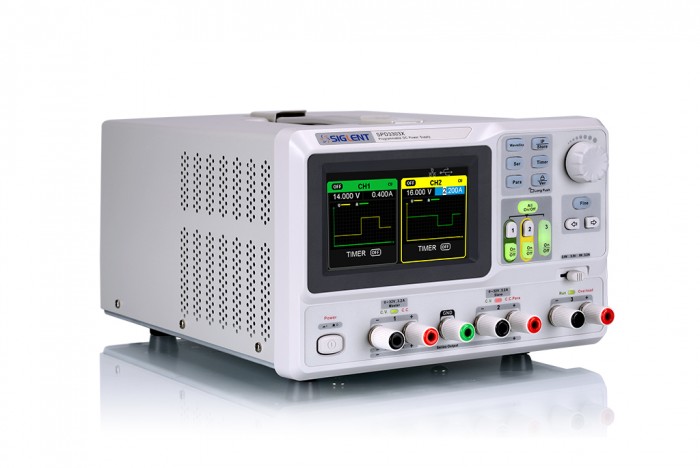

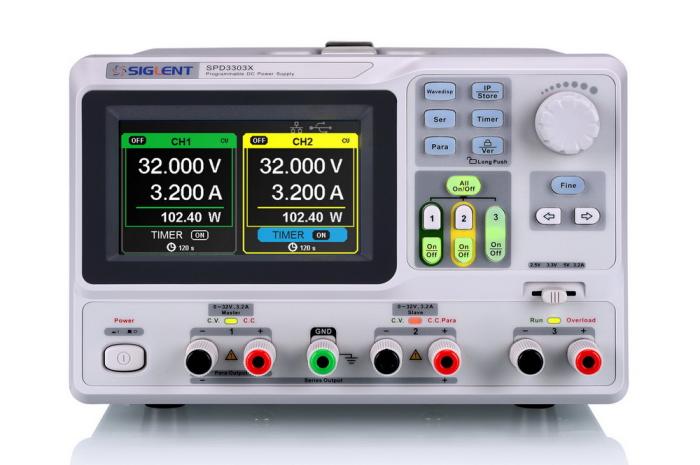

The SPD3303D/S has front panel programming and real-time waveform display functionality. It can bring new experience to the user through the 4.3"panel TFT - LCD display. The SPD3000 series has 3 outputs modes: independent?parallel and series. Totaling 195W power. It is a great product that can be used in various types of production and research environments.
?Separate control and independent triple outputs: 30V/3A*2, 2.5V/3.3V/5V/3A*1, total 195W power
?5 digits voltage and 4 digits current display, min resolution: 1mV, 1mA
?Three output modes: independent, series and parallel connect; support timing output, waveform display and SCPI remote command
?4.3 inches TFT-LCD display with 480*272 high-resolution
?100V/120V/220V/230V compatible design, to meet the need of different grid
?Smart temperature controlled fan, effectively reduce the noise
?Save/Recall 5 group system specifications, support data storage expansion
? High-resolution, output The SPD3303D/S exhibits high resolution (1mv / 1ma), providing the user with excellent settability and read back accuracy. In addition, it has the ability to output a very small change in voltage or current, while maintaining the power requirements of the load.
? Wide range of output and multiple output modes The Series-parallel functions combine two power supplies into one. and make it very convenient for many applications. The SDP3300 three independent outputs which can be controlled separately and can also be turned on or off at the same time.

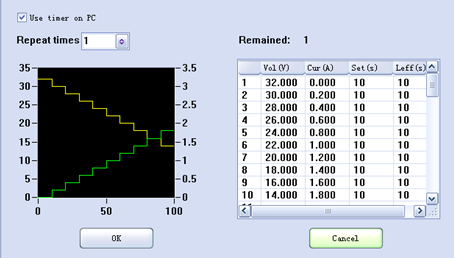

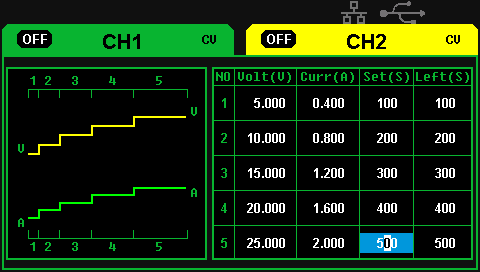

Panel timing output functions Five output timing profiles are settable via the SDP3300's front panel. Each profile is independent of the others and allows settable voltage and current values. The timer function allows for continuous output with profiles as long as 10,000 seconds / profile. In addition to easy front panel control, the SPD3300 power supplies come with EASYPOWER PC software.

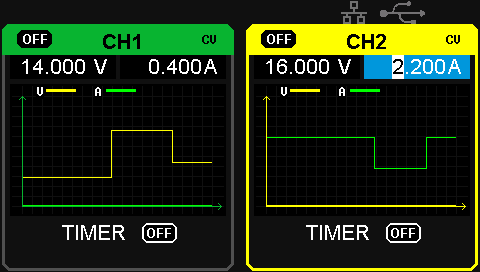

? Real-time waveform display The SPD3000D/S is a programmable linear DC power supply and is equipped with a 4.3", 16M color TFT LCD screen, It can display voltage and current with 480 × 272 resolution, which allows the user to understand the output status.
? Save / Recall interface The SPD3000D/S programmable linear DC power supply provides five groups of local storage system parameters, and has support for external memory expansion. With this feature the local or external memory can be stored,recalled, making it easy to return to your desired settings.
?Separate control and independent triple outputs: 30V/3A*2, 2.5V/3.3V/5V/3A*1, total 195W power
?5 digits voltage and 4 digits current display, min resolution: 1mV, 1mA
?Three output modes: independent, series and parallel connect; support timing output, waveform display and SCPI remote command
?4.3 inches TFT-LCD display with 480*272 high-resolution
?100V/120V/220V/230V compatible design, to meet the need of different grid
?Smart temperature controlled fan, effectively reduce the noise
?Save/Recall 5 group system specifications, support data storage expansion
? High-resolution, output The SPD3303D/S exhibits high resolution (1mv / 1ma), providing the user with excellent settability and read back accuracy. In addition, it has the ability to output a very small change in voltage or current, while maintaining the power requirements of the load.
? Wide range of output and multiple output modes The Series-parallel functions combine two power supplies into one. and make it very convenient for many applications. The SDP3300 three independent outputs which can be controlled separately and can also be turned on or off at the same time.
Panel timing output functions Five output timing profiles are settable via the SDP3300's front panel. Each profile is independent of the others and allows settable voltage and current values. The timer function allows for continuous output with profiles as long as 10,000 seconds / profile. In addition to easy front panel control, the SPD3300 power supplies come with EASYPOWER PC software.
? Real-time waveform display The SPD3000D/S is a programmable linear DC power supply and is equipped with a 4.3", 16M color TFT LCD screen, It can display voltage and current with 480 × 272 resolution, which allows the user to understand the output status.
? Save / Recall interface The SPD3000D/S programmable linear DC power supply provides five groups of local storage system parameters, and has support for external memory expansion. With this feature the local or external memory can be stored,recalled, making it easy to return to your desired settings.
