Product description

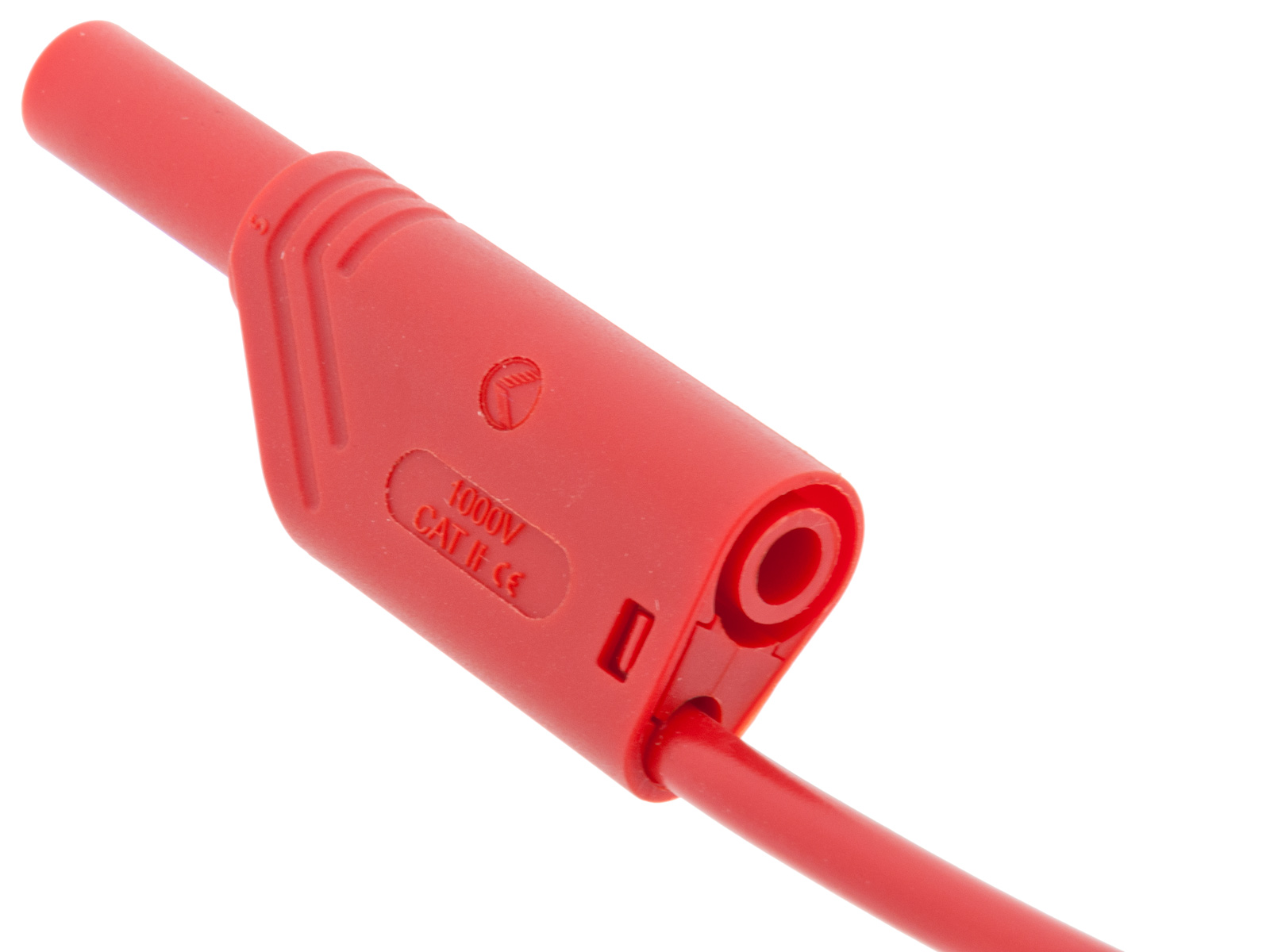

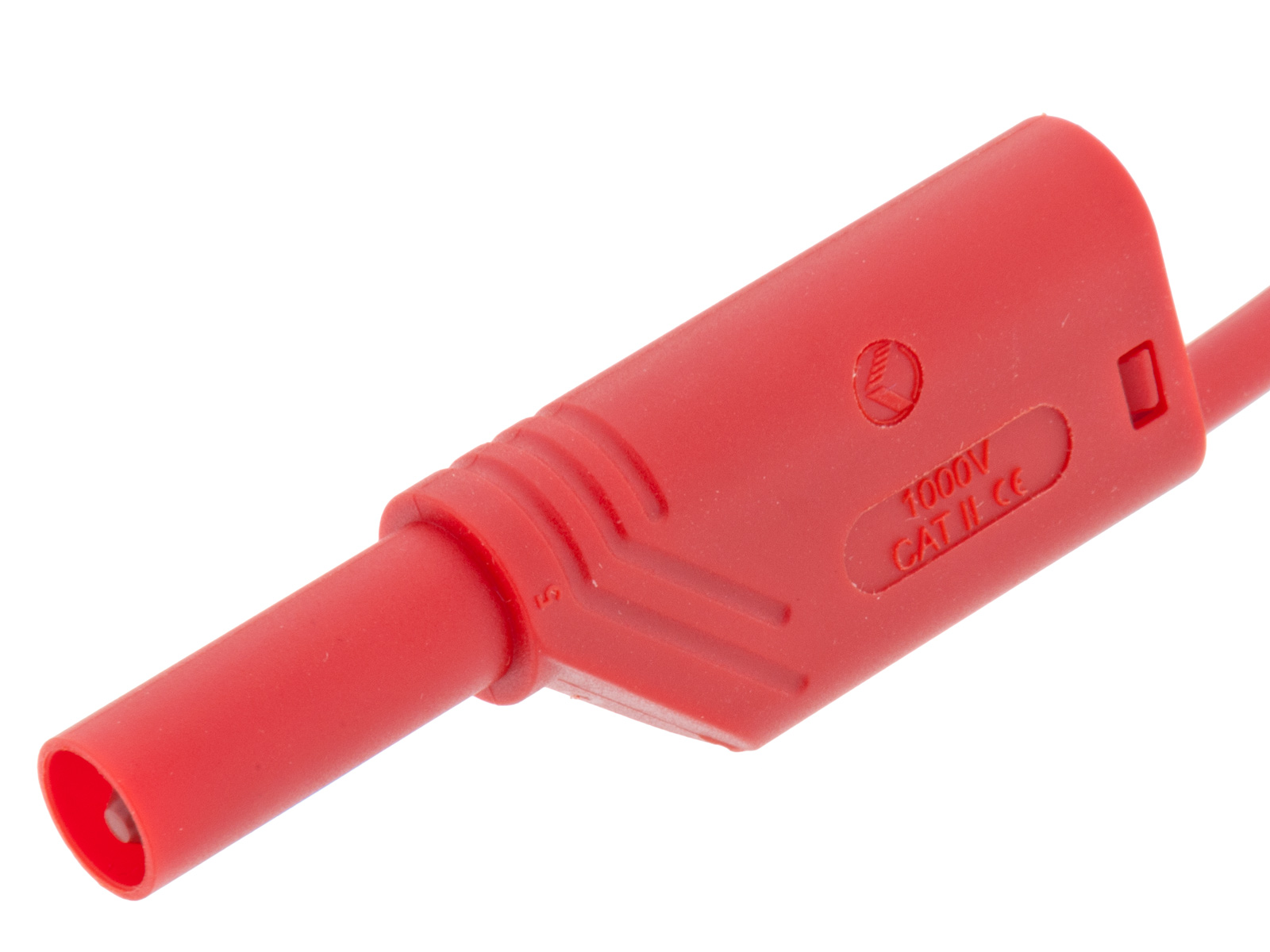

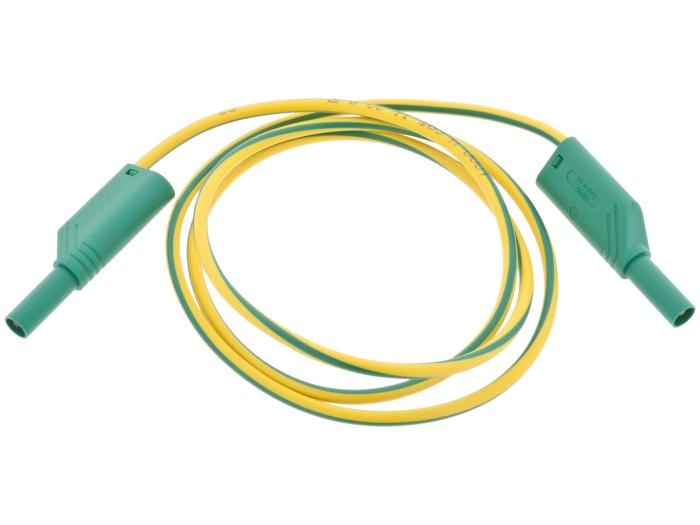

SKS Hirschmann protected earth (PE) safety test lead with insulated 4mm banana plugs. The connectors are stackable and have extremely low contact resistance. The cable has double insulation and a color indicator for easy identification of any damage to the outer cable insulation. If the color indicator becomes visible, discard the lab cable.
Specifications:
Length: 1m
Rated voltage: 1000V
Rated current: 32A
Contact resistance: 12 mohm
Wire gauge: 2.5mm²
Insulation: PVC
Measurement cat. (IEC61010): CAT II (600V AC/DC, CAT III)
