Product description

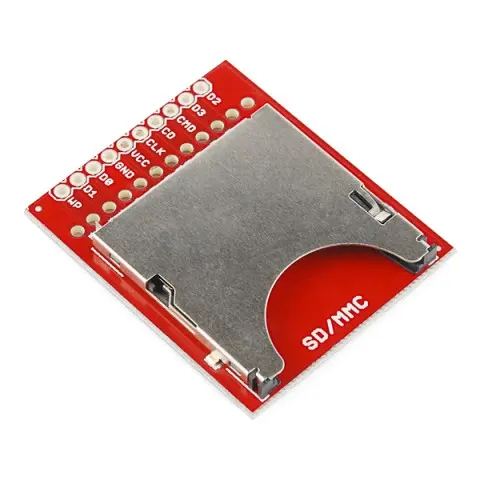

This breakout board will allow you to breakout the SD/MMC socket to a standard .1" 10-pin header. Perfect for breadboarding and the likes. Board comes fully assembled and tested as shown.
This is the new Push-Push type socket. The board has 11 pins:
COM : Common - Connects to the housing WP : Write Protect Detect Switch CD : Card Detect Switch P9 : Not used in SPI Mode (Pin 9 on SD Card)
IRQ : Not used in SPI mode (Pin 8 on SD Card) DO : Serial Data Out GND : Ground - Connect this to COM to ground the housing CLK : Serial Clock VCC : 3.3V Power DI : Serial Data In CS : Chip Select
It is recommended that you connect the COM pin to GND if you plan to use the CD or WP pins.
