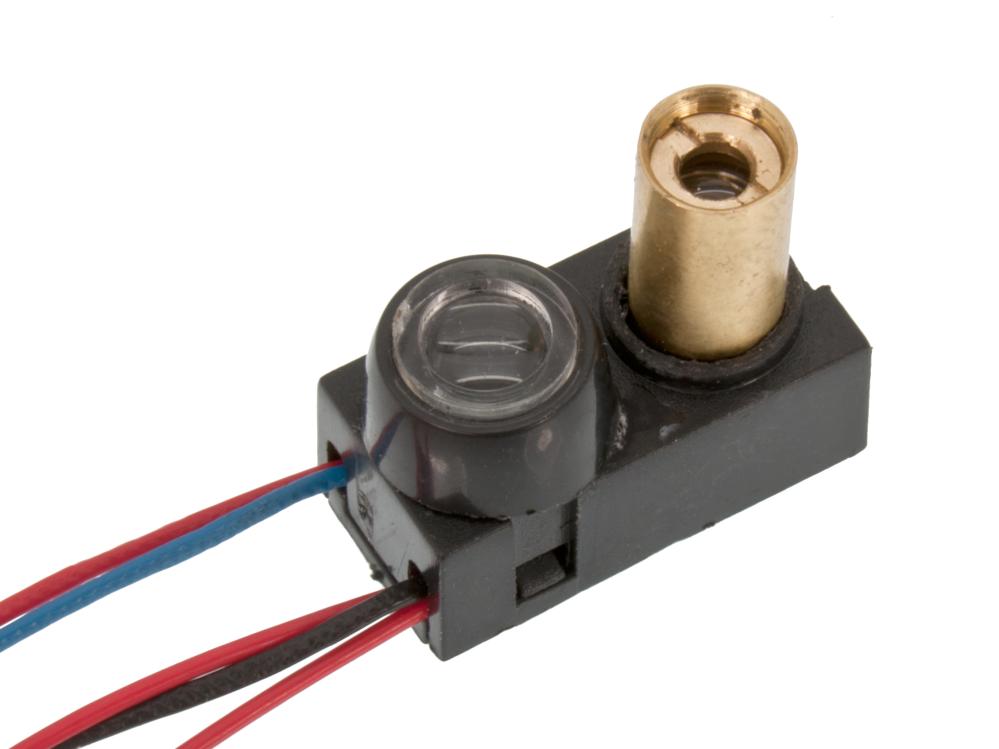

Laser break beam sensor 5V 1m

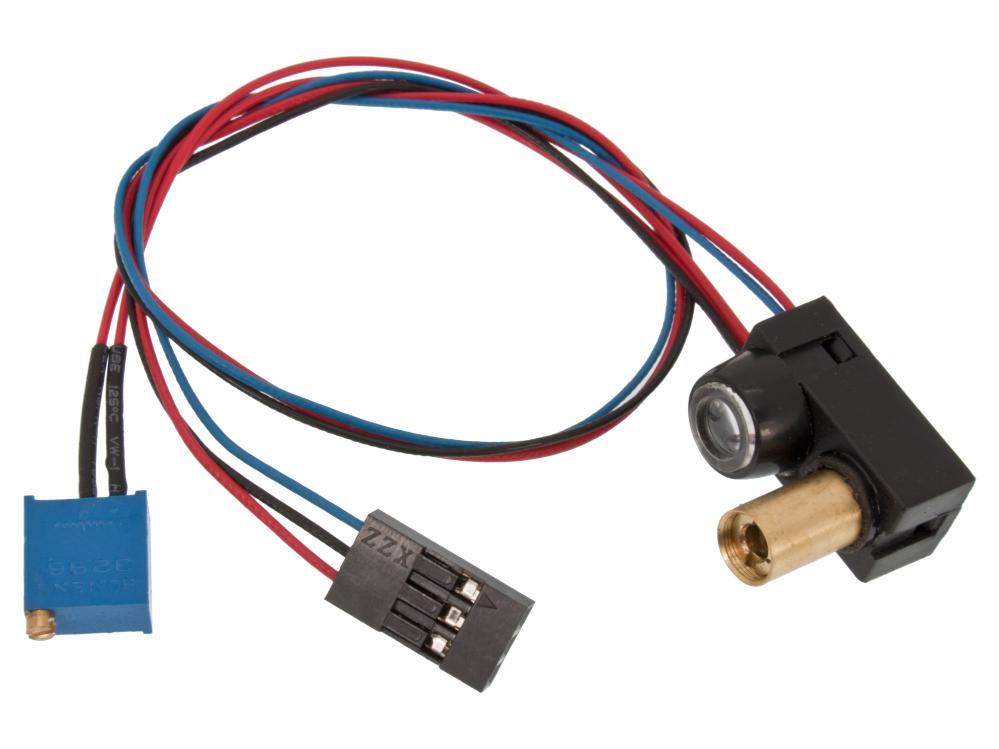

Simple break beam sensor with emitter and sensor in one package. The laser is powered by 5VDC and can sense larger objects up to 1m away. The output is open-collector and pulls the output low when something breaks the beam. A pull-up resistor is required for correct function. Adjustable sensitivity via potentiometer.

* Emitter: 1mW red laser diode
* Sensing Distance: Up to 1m (depending on light levels, contrasting material)
* Operating Voltage: DC 4.5 VDC - 5.5VDC
* Operating Current: 25mA
* Output Current (NPN transistor output): 100mA max
* Sensing Angle: <10 degrees
* Response Time: 2ms
* Working Environment: Indoor (not waterproof!), 0-70 degrees C
* Dimensions w/components: 20mm x 18mm x 10mm / 0.8" x 0.7" x 0.4"
* Cable Length: 250mm / 9.8"
