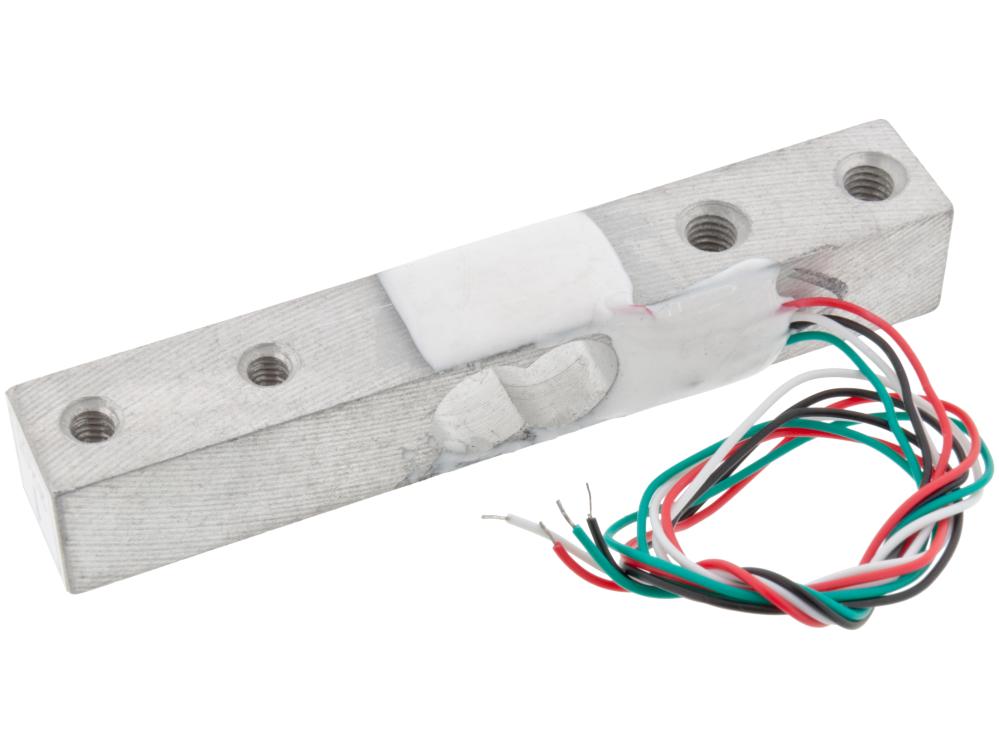

Load cell 10kg

Load cell for very precise measurement of weights up to 10kg. The load cell is built up as a wheatstone bridge and can with very high accuracy measure the applied pressure. Requires external amplification to produce a measurable signal. Works well together with the load cell amplifier HX711. The load cell must be handled with care to not damage the wires. The sensor must be mounted in such a way that no pressure is applied to the white connection points.

Color codes:
* Red: E+ (Excite+ / VCC)
* Black: E- (Excite- / GND)
* White: O+ (Output+)
* Green: O- (Output-)

Specifikations:
* Max weight: 10kg
* Breaking weight: 15kg
* Resistance (per element): 1kohm
* Dimensions: 80 x 12.7 x 12.7mm
* Wires: 140mm
* Working voltage: 3-12VDC
