Product description

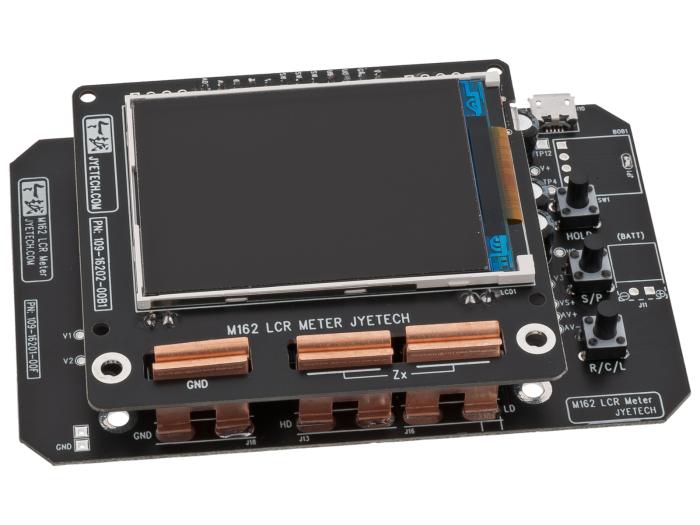

M162 is a very capable instrument for testing passive components (resistors, capacitors and inductors). It can test both primary parameters (resistance, capacitance and inductance) and secondary (impedance, reactance, phase-angle, Q factor and ESR).

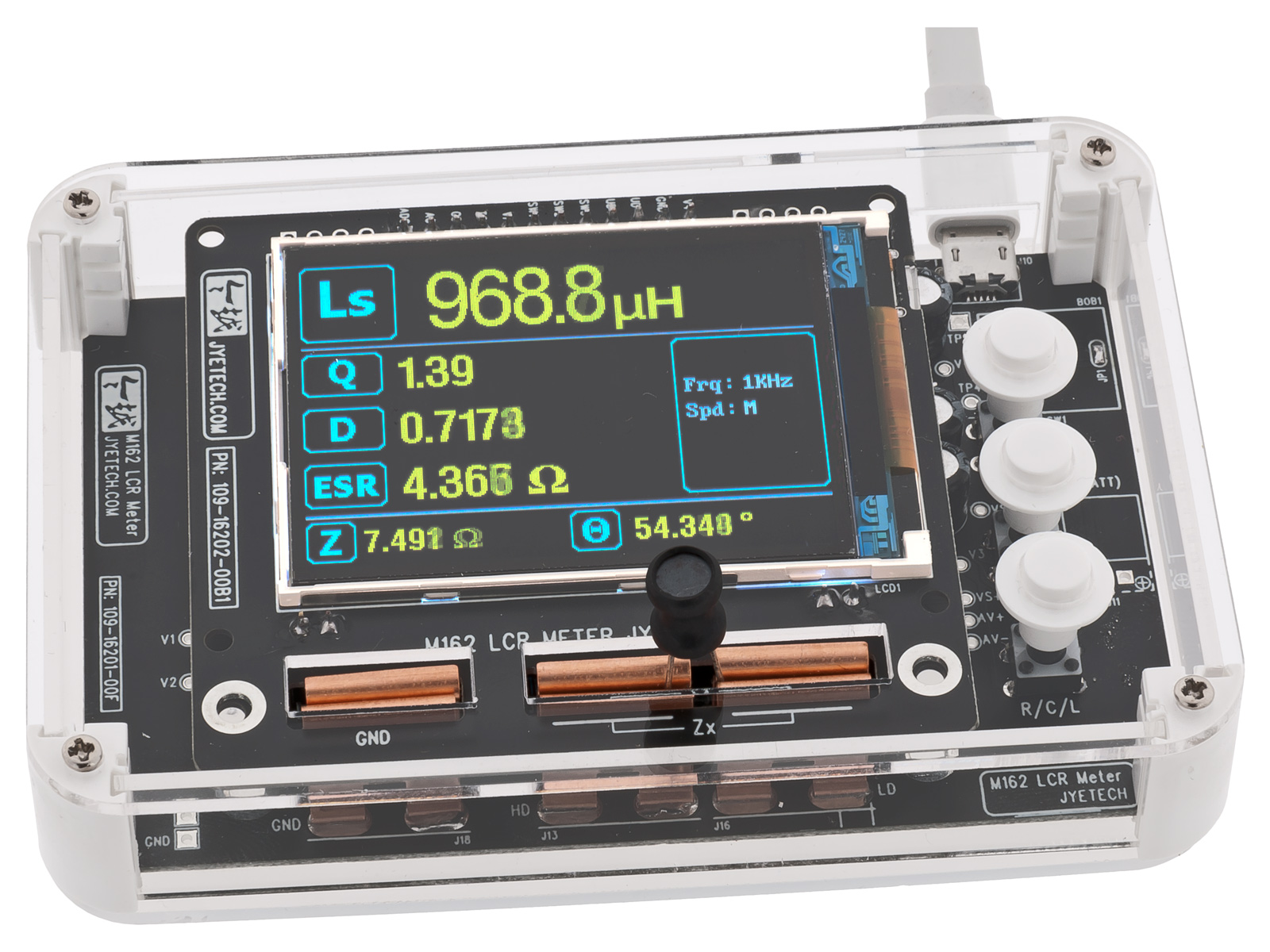

To test a component, just place it in the test terminals and all results are revealed instantly on the color display. The instrument has fully automatic ranging.
The instrument is powered via a microUSB port, which is also used for firmware updates and as a serial port for exporting test results. A battery management module can be soldered to the board for powering the instrument using a LiPo battery (sold separately).
* Resistance range: 0.1ohm - 20Mohm
* Capacitance range: 1pF - 20mF
* Inductance range: 1uH - 20KH
* Accuracy: ~1%
* Test frequency: 100Hz, 1kHz
* Current draw: 100mA (5V)
* Dimensions: 111 x 76 x 25mm
Please note: This product is pre-assembled and ready to use.
