Product description

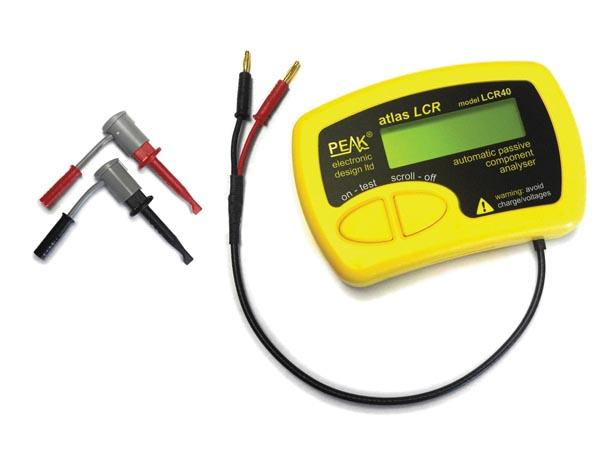

The Atlas LCR is an advanced instrument that greatly simplifies the testing of passive components.
Traditional LCR bridges are inherently complex and very time consuming to use.
The Atlas LCR does everything automatically, it tells you the component type in addition to component value data.
What's more, the Atlas LCR automatically selects the best signal level and frequency for the particular component under test.
The software is smart; all internal calculations are performed with floating point maths. This means that precision isn't lost in the complex internal calculations and all results are displayed in properly formatted and easy#to#
read engineering units, eg. 23.6pF.
Summary Features: -Automatic component identification. -Automatic test frequency selection (DC, 1kHz, 15kHz and 200kHz). -Delayed or instant analysis (for hands free operation). -Auto power#off. -Probe and test lead compensation. -Interchangeable probe sets. -Automatic ranging and scaling. -1% basic accuracy for resistors. -1.5% basic accuracy for inductors and capacitors
Ranges
Resistance range 1ohm -- 2Mohm
resolution 0.3/0.6ohm
accuracy typ ±1.0% ±1.2ohm
Capacitance
range 0.5pF -- 10000uF
resolution: 0.2/0.5pF
accuracy: typ ±1.5% ±1.0pF
Inductance
range 1uH -- 10H
resolution 0.4/0.8uH
accuracy typ ±1.5% ±1.6uH
Traditional LCR bridges are inherently complex and very time consuming to use.
The Atlas LCR does everything automatically, it tells you the component type in addition to component value data.
What's more, the Atlas LCR automatically selects the best signal level and frequency for the particular component under test.
The software is smart; all internal calculations are performed with floating point maths. This means that precision isn't lost in the complex internal calculations and all results are displayed in properly formatted and easy#to#
read engineering units, eg. 23.6pF.
Summary Features: -Automatic component identification. -Automatic test frequency selection (DC, 1kHz, 15kHz and 200kHz). -Delayed or instant analysis (for hands free operation). -Auto power#off. -Probe and test lead compensation. -Interchangeable probe sets. -Automatic ranging and scaling. -1% basic accuracy for resistors. -1.5% basic accuracy for inductors and capacitors
Ranges
Resistance range 1ohm -- 2Mohm
resolution 0.3/0.6ohm
accuracy typ ±1.0% ±1.2ohm
Capacitance
range 0.5pF -- 10000uF
resolution: 0.2/0.5pF
accuracy: typ ±1.5% ±1.0pF
Inductance
range 1uH -- 10H
resolution 0.4/0.8uH
accuracy typ ±1.5% ±1.6uH
