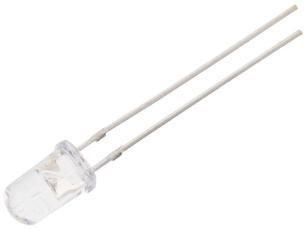

LED UV-A 5 mm 2.8-3.6V 70mcd 385nm 30 gr

Art no: 40300204
Shop this product, LED UV-A 5 mm 2.8-3.6V 70mcd 385nm 30 gr
price 19.50 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 19:5010pcs = 175:5025pcs = 365:-

Quantity discount
QuantityPrice
1 till 9
19.50 SEK
10 till 24
17.55 SEK
25 till
14.60 SEK
In stock, 48 pcs
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

5mm UVA LED. UVA radiation (315-400 nm) is used in several technical and industrial applications. Common uses include UV curing of adhesives, varnishes and resins, non-destructive testing with fluorescence, as well as anti-counterfeiting protection in documents and currencies.

Specifications:
Forward current (If): 30 mA
Forward voltage (Vf): 2.8-3.6 VDC
Power (max): 120 mW
Luminous Intensity @ 20mA: 80 mcd
LED Color: UV-A
Viewing angle: 30°
Wavelength: 380–390 nm
Peak wavelength: 385 nm
LED diameter: 5 mm

Warning: Ultraviolet radiation can cause serious damage to skin and eyes. Under certain conditions, UV radiation may generate ozone, a gas harmful to the lungs. When working with or developing UV-based products, appropriate protective equipment must be used, including UV-blocking safety goggles.

About UV radiation:
UV radiation is divided into three main regions: UVA (315–400 nm), UVB (280–315 nm), and UVC (100–280 nm). Each has different biological effects and potential health risks. UVA penetrates deep into the skin and contributes to premature aging. UVB is more energetic and can cause skin and eye damage, including burns. UVC is the most energetic form of UV radiation and is highly effective for disinfection, but also the most harmful to biological tissue. UVC is normally absorbed by the Earth's atmosphere and does not occur naturally at ground level.

Technical data

Technical data/attributes for this product
Attribute Value
Color
UV
Forward-voltage
3.2 V
Lens
Kristallklar
Size
Rund ø5mm
Wavelength
385 nm
  • SKU:

    40300204
  • MPN:

    VAOL-5GUV8T4
