LED UV-A 5mm 3-3.8V 20mA 370-380nm 140 deg

Art no: 41024258
Shop this product, LED UV-A 5mm 3-3.8V 20mA 370-380nm 140 deg
price 7.20 SEK
Including 25% VAT

Mängdrabatt:
2pcs = 14:4010pcs = 64:5025pcs = 135:-

Quantity discount
QuantityPrice
2 till 9
7.20 SEK
10 till 24
6.45 SEK
25 till
5.40 SEK
In stock, 100 pcs
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

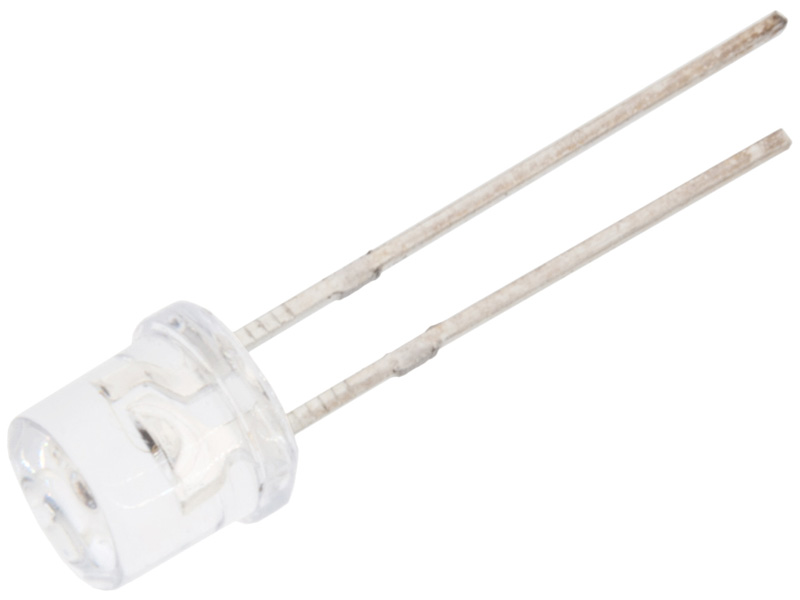

5mm UVA LED with flat top. Used for e.g. exposure of photoresist in the production of printed circuit boards (PCB).

Specifications:
Forward current (If): 20 mA
Forward voltage (Vf): 3-3.8 VDC
Power (max): 114 mW
Radiant power: 2.5-4.5 mW
LED Color: UV-A
Viewing angle: 140°
Wavelength: 370–380 nm
Peak wavelength: 375 nm
LED diameter: 5 mm

UVA radiation (315-400 nm) is used in several technical and industrial applications. Common uses include UV curing of adhesives, varnishes and resins, non-destructive testing with fluorescence, as well as anti-counterfeiting protection in documents and currencies.

Warning: Ultraviolet radiation can cause serious damage to skin and eyes. Under certain conditions, UV radiation may generate ozone, a gas harmful to the lungs. When working with or developing UV-based products, appropriate protective equipment must be used, including UV-blocking safety goggles.

About UV radiation:
UV radiation is divided into three main regions: UVA (315–400 nm), UVB (280–315 nm), and UVC (100–280 nm). Each has different biological effects and potential health risks. UVA penetrates deep into the skin and contributes to premature aging. UVB is more energetic and can cause skin and eye damage, including burns. UVC is the most energetic form of UV radiation and is highly effective for disinfection, but also the most harmful to biological tissue. UVC is normally absorbed by the Earth's atmosphere and does not occur naturally at ground level.

Product information

  • SKU:

    41024258
  • MPN:

    OSV2YL57E1A
