Product description

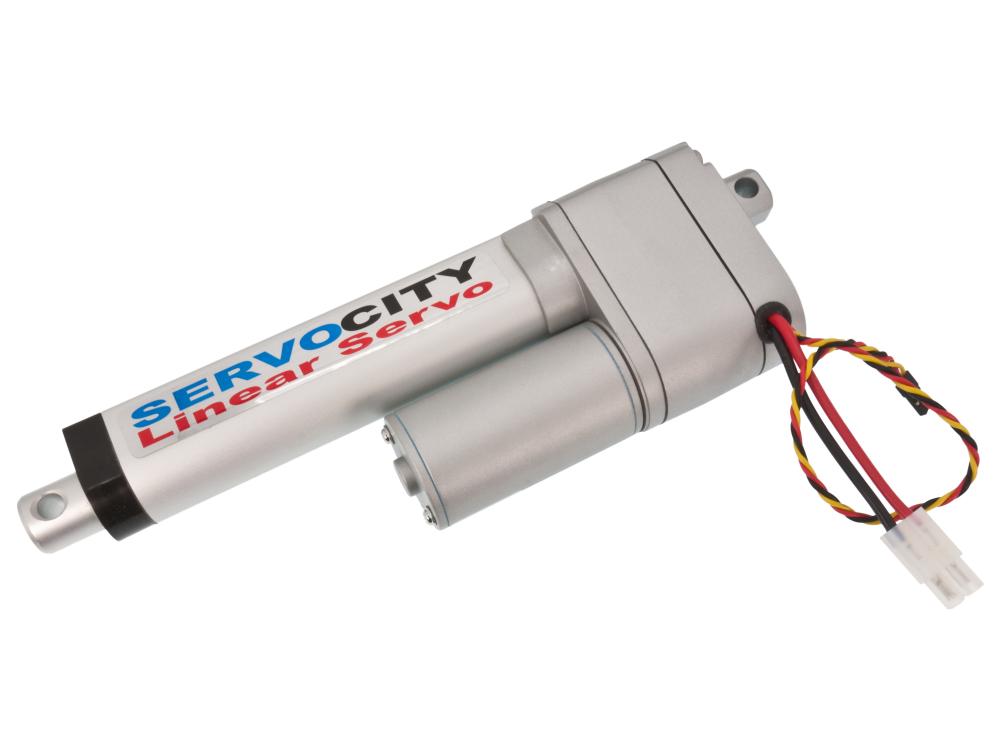

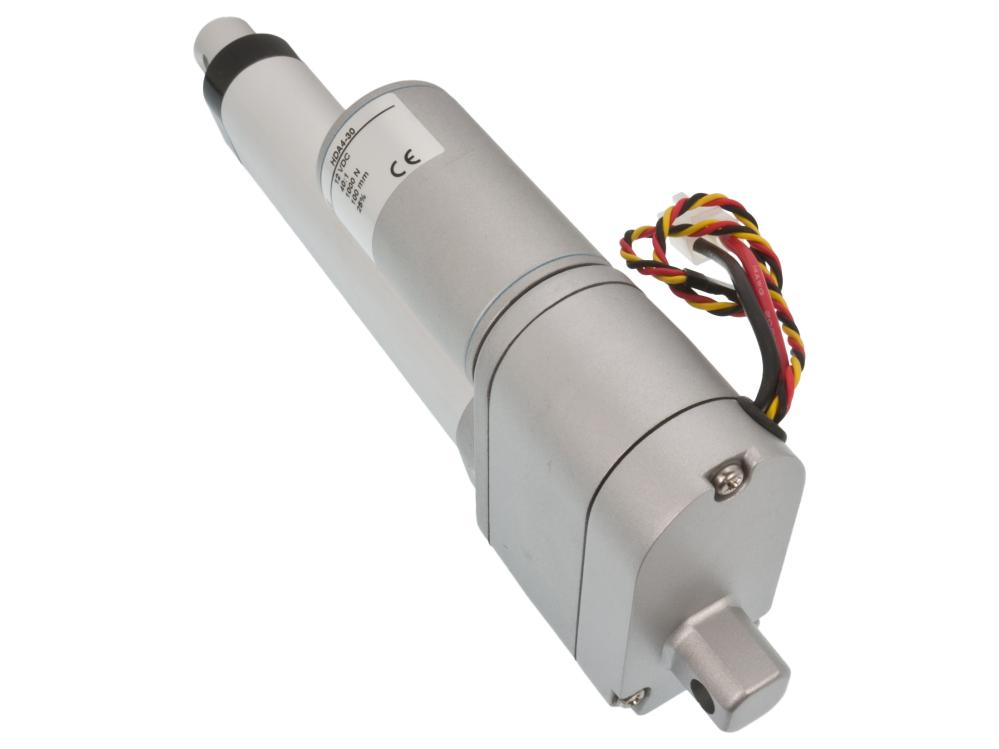

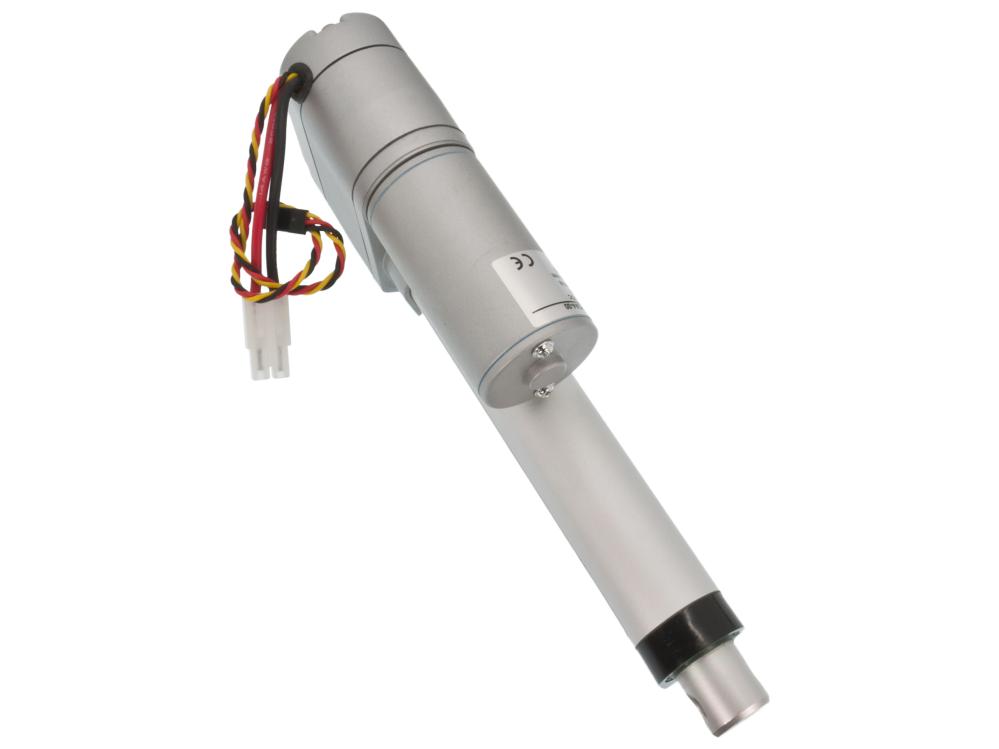

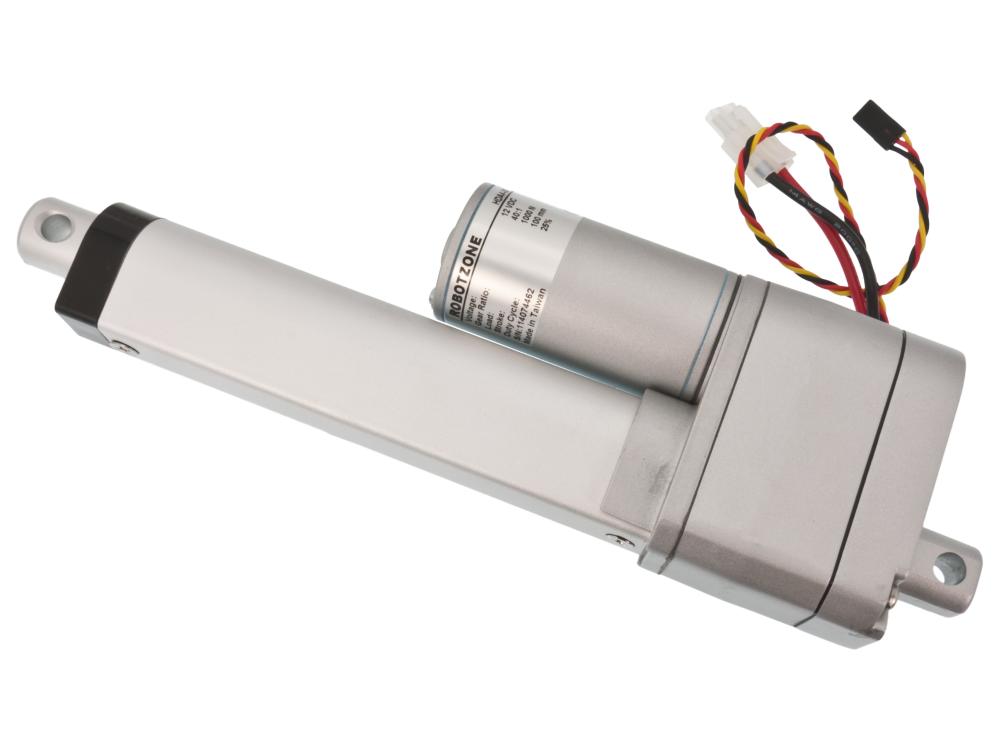

A servo for linear motion. Compatible with Actobotics consoles with fittings for linear servos. As with regular rotating servos, it is controlled with a PWM signal. The 24kHz PWM signal in this servo makes for very smooth motion, and the built in PID algorithm leads to short setlling time and overshot. The servo is made entirely from aluminium and is extremely durable and robust.
* Control: 24kHz PWM 1000 - 2000uS (1500uS = neutral)
* Power supply: 6 - 14VDC (3 - 5V PWM signal)
* Power consumtion: 140mA - 1A (obelastad) / 4.5A (max load)
* Working temperature: -20 to +60°C
* Speed: 7.62mm/s (without load) / 5.08mm/s (max load)
* Max power: 81.64Kg (25lbs)
* Static load: 226.8Kg (500lbs)
* Dead band: 8uS
* Connector cable: 30cm servo / 15cm motor
* IP class: IP63 (protection from dust and water splashes)

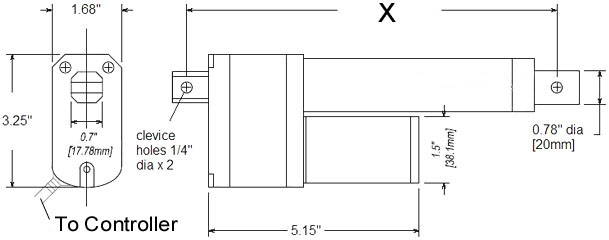

* Stroke: 99.82mm (3.93")
* Length: : 246.1 - 345.9mm (9.69 - 13.62")* Weight: 1140
