Product description

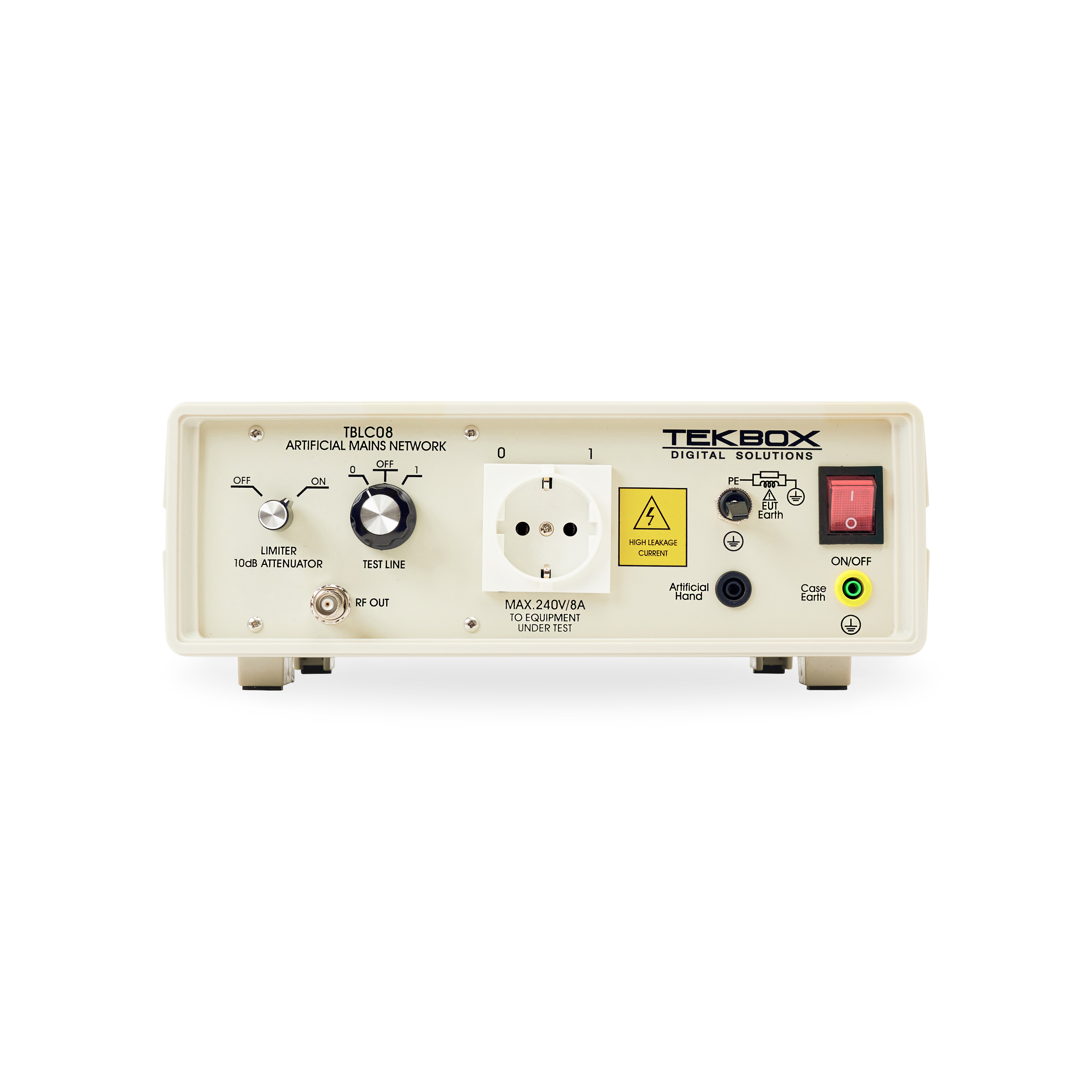

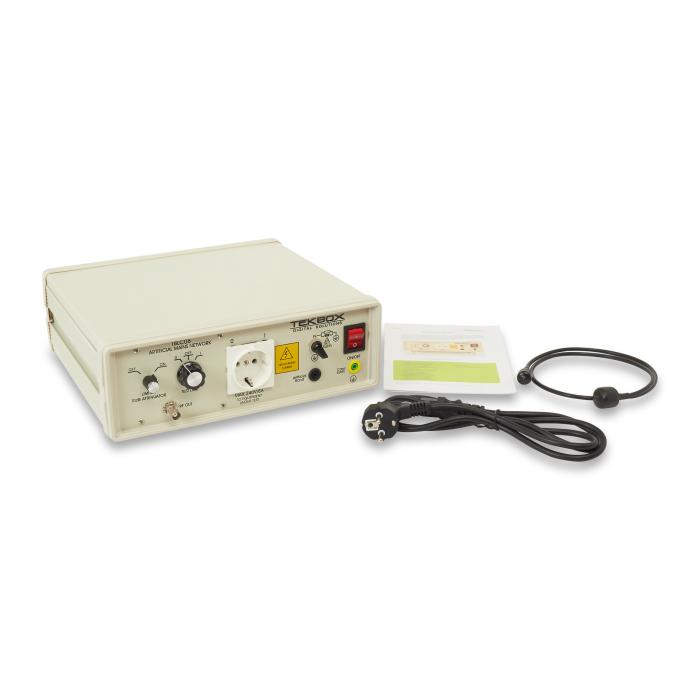

The TBLC08 is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR16 standard. The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 240V. Conducted noise can be measured on the phase and on the neutral conductor. The TBLC08 is equipped with a switchable limiter/attenuator and an artificial hand connection.
The device is available with country-specific DUT connectors
Specifications
* Frequency range: 9 kHz to 30 MHz
* Impedance: 50 O ¦ (50 µH + 5 O)
* Artificial hand: 220 pF + 511 O * Switchable PE: 50 O ¦ 50 µH * Limiter / attenuator: 150 kHz to 30 MHz; 10 dB
* Air core inductors
* Line voltage: max. 240V / 50 - 60 Hz, CAT ?
* Max. current: 8A @ 23°C
* DUT socket: country specific
* Measurement connector: 50 O BNC

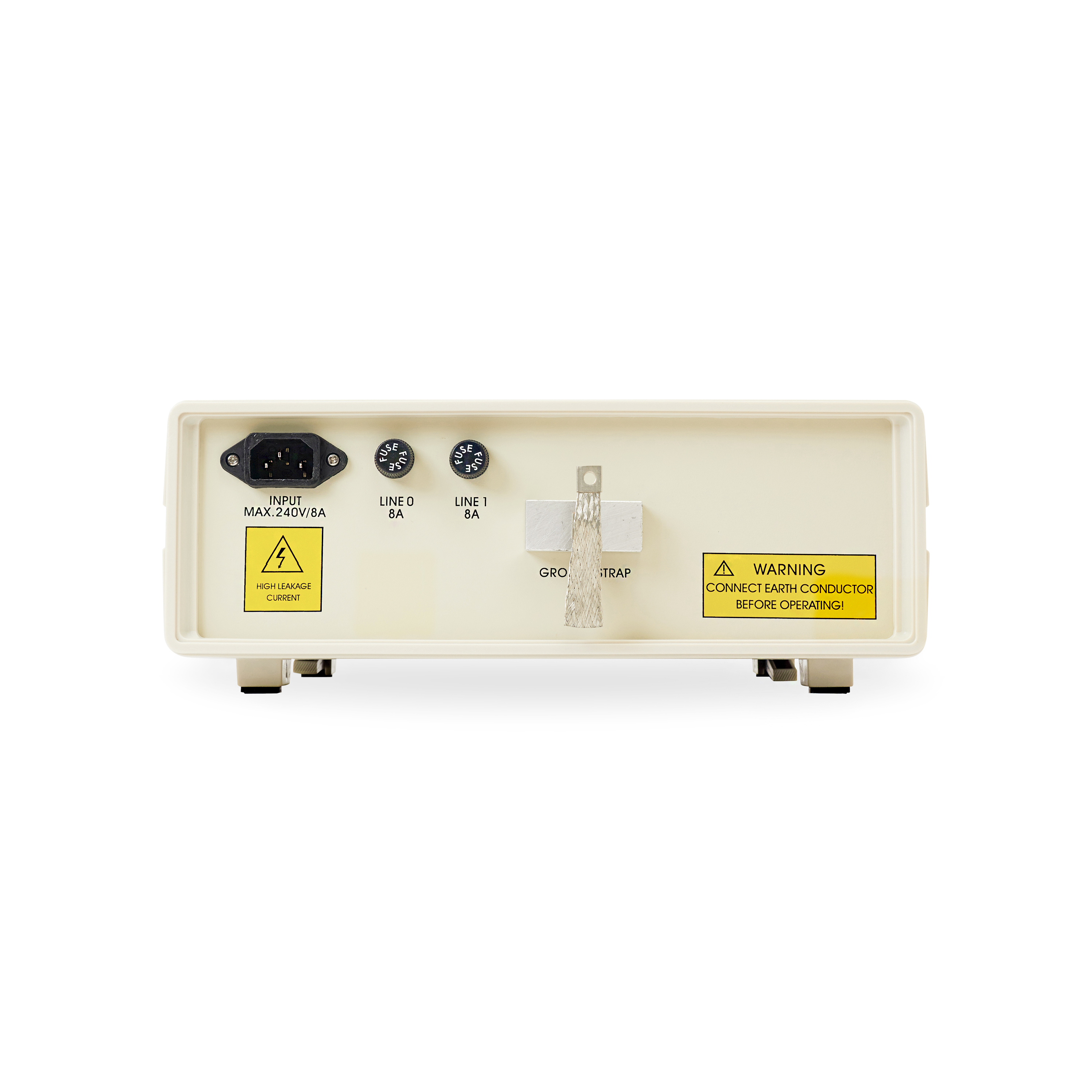

* Power connector: IEC 60320 C13
* Operating Temperature Range: +5°C ... + 40°C; 5% to 80% RH
* Safety: Safety Class I, IEC 1010-01
