Product description
In the context of audio, 'loudness' means that an audio signal is enhanced in the low and high frequencies to make it sound a bit louder and be perceived as better. With this DIY kit, you can assemble such an effect yourself, which can be connected between your audio source or preamplifier and your amplifier. You can add an external switch to bypass the effect, or don't as it always sounds better with loudness activated anyway.

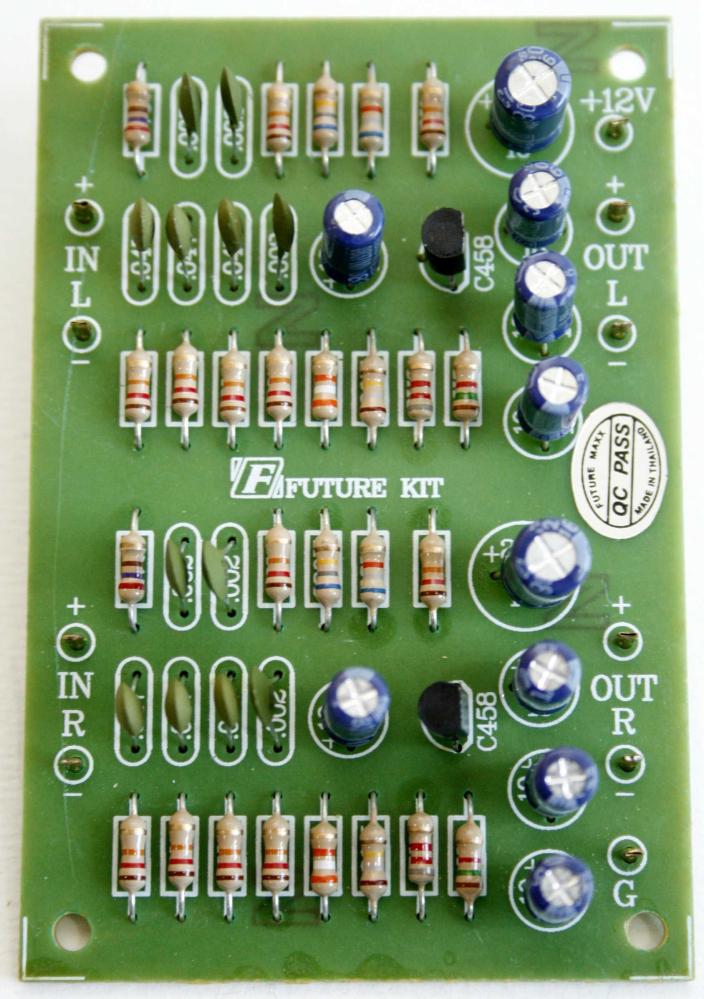

The construction is quite straightforward and is built using only resistors, capacitors, and two transistors. It's essential to correctly orient the electrolytic capacitors (note the plus marking on the board and the component) and ensure that all resistors with their different color bands are placed in the correct location.
When connecting to other equipment, use shielded cables because the signals are sensitive to interference.
Refer to the circuit diagram for detailed information about the circuit's structure.
Power Supply Voltage: 12VDC
Current Consumption: 5mA
Dimensions: 56.4 x 84.6mm
The construction is quite straightforward and is built using only resistors, capacitors, and two transistors. It's essential to correctly orient the electrolytic capacitors (note the plus marking on the board and the component) and ensure that all resistors with their different color bands are placed in the correct location.
When connecting to other equipment, use shielded cables because the signals are sensitive to interference.
Refer to the circuit diagram for detailed information about the circuit's structure.
Power Supply Voltage: 12VDC
Current Consumption: 5mA
Dimensions: 56.4 x 84.6mm
