Product description

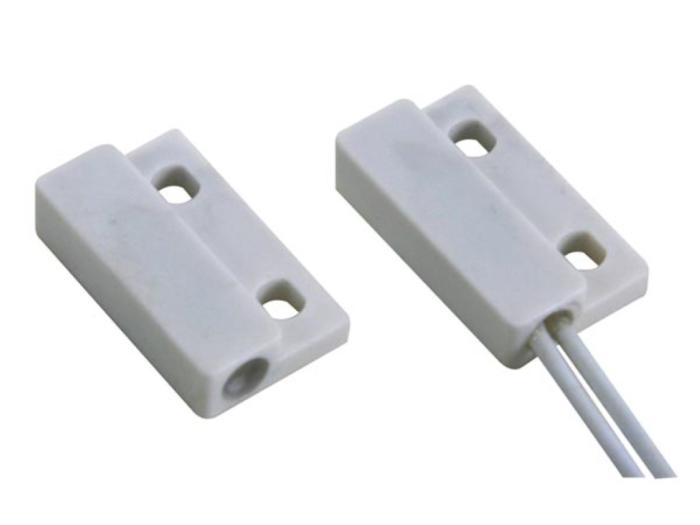

Magnetic switch with magnet for e.g. alarm installations. The contact is normally closed (NC) and opens (cuts the current) when the magnet is removed.
Specifications:
- Rating (max): 30 VDC / 100 mA
- Connection: 2 poles (NC)
- Cable length: 250 mm

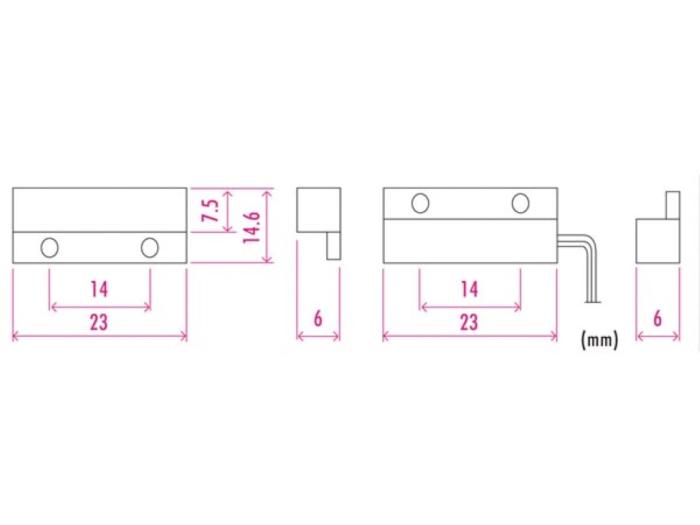

- Dimensions: 23.6x14x6 mm
- Max distance between magnet and switch: 15mm
Understand NC / NO:
NC = Normaly Closed = conducts current in normal operation
NO = Normaly Opend = does not conduct current in normal operation
