Product description

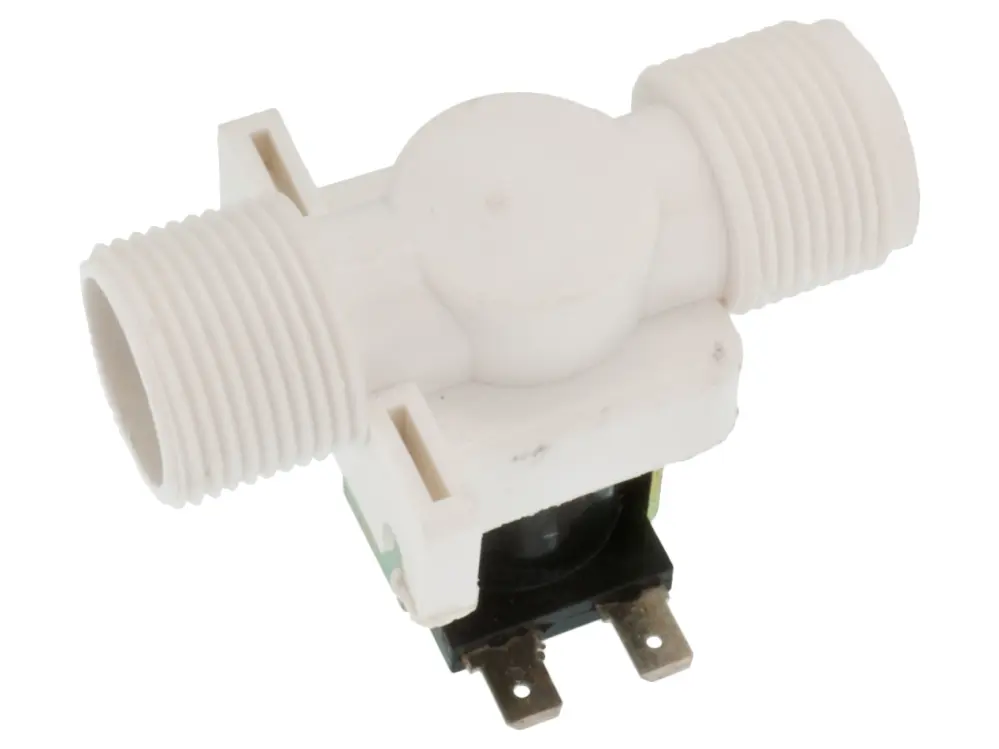

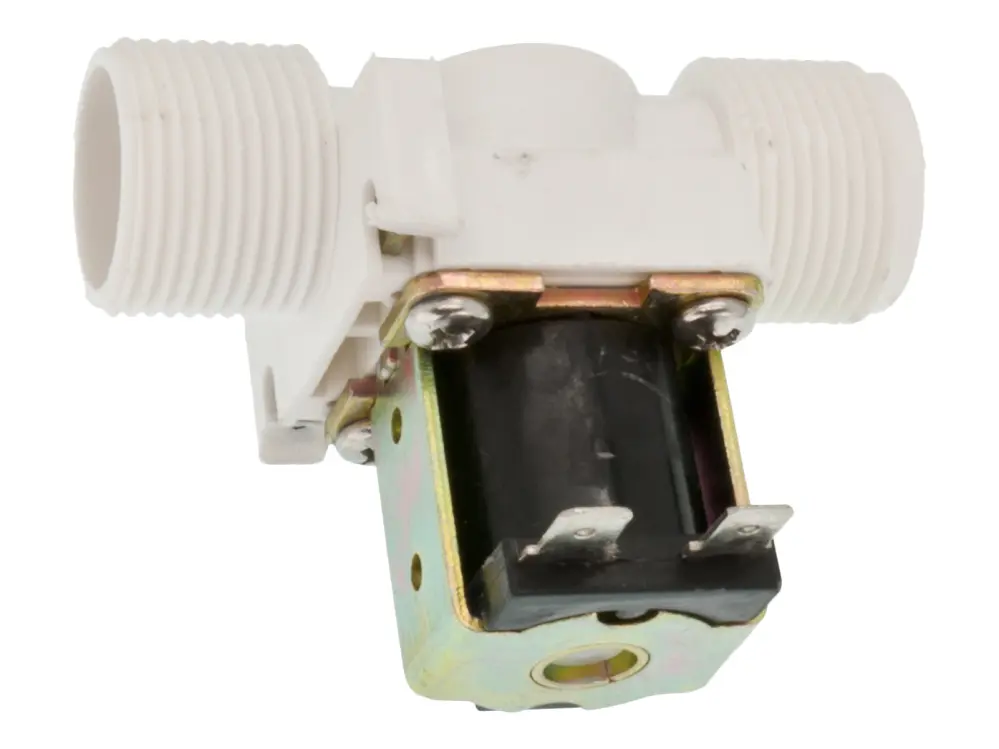

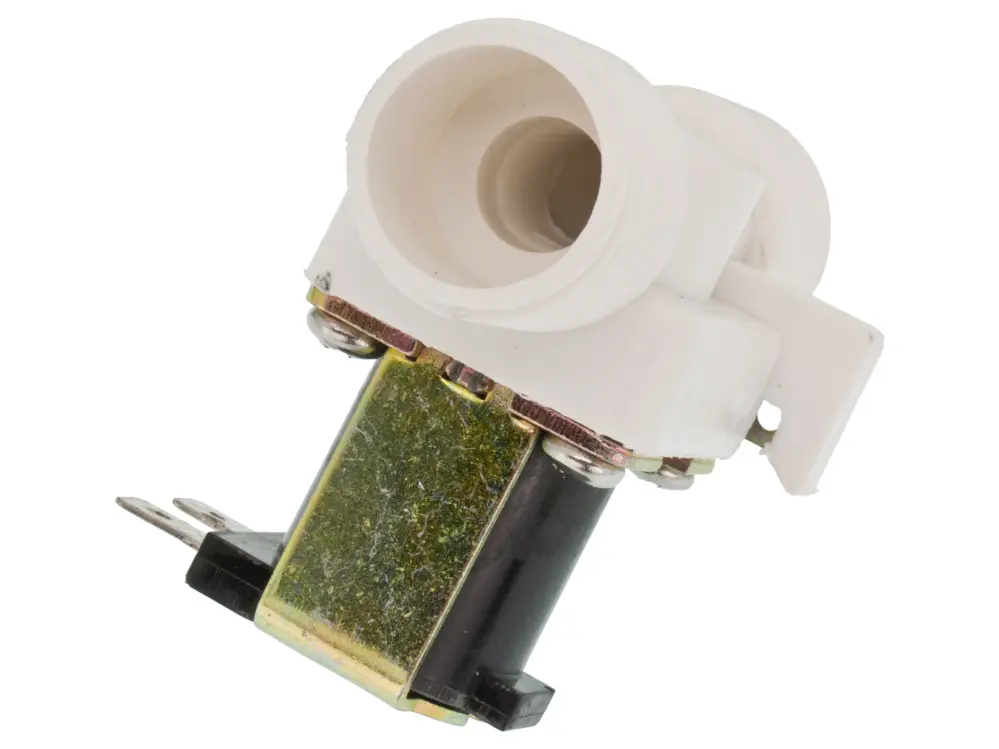

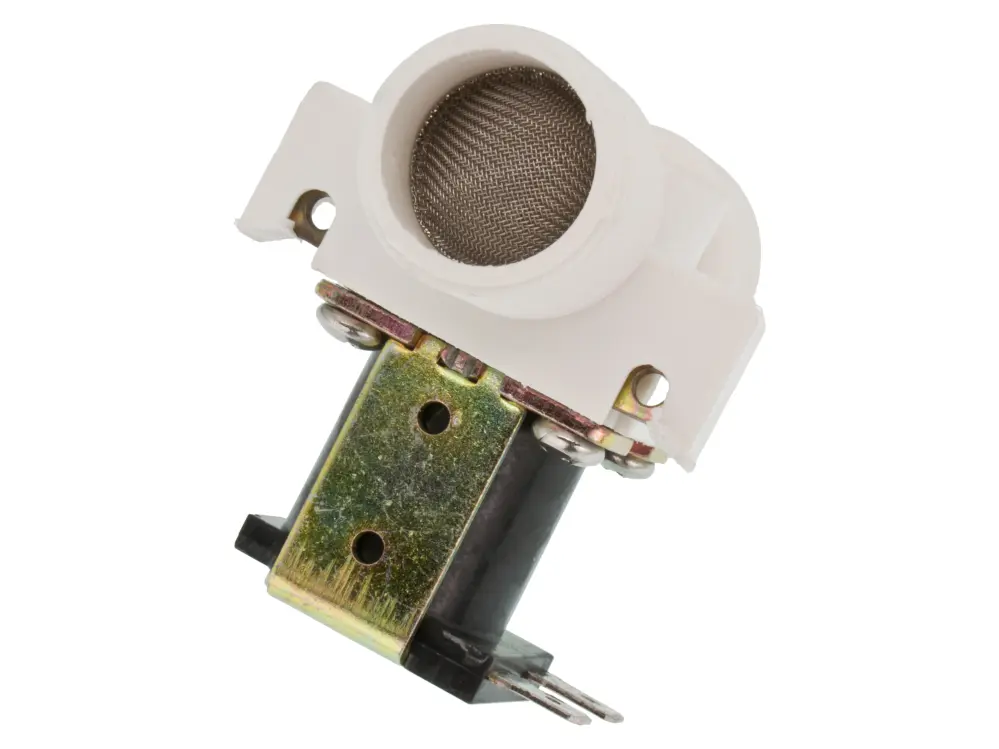

3/4 inch solenoid valve / water valve. The valve is normally closed (NC) and opens when 12 VDC is connected. Suitable for use in aquariums, garden ponds, irrigation, dishwashers etc. A minimum water pressure of 0.2 bar is required to operate. With water filter.
Specifications:
- Voltage: 12 VDC
- Current: 300mA
- Coil resistance: 39 ohms
- Working pressure min: 0.2 bar (29 psi)
- Working pressure max: 8 bar (116 psi)
- Valve opening response time: ≤ 0.15 sec
- Valve closing response time: ≤ 0.3 sec
- Temperature range: 1 - 60°C
- Thread: 3/4 inch
- Power supply connections: 6.3mm flat pin
- Weight 109 g
