Product description

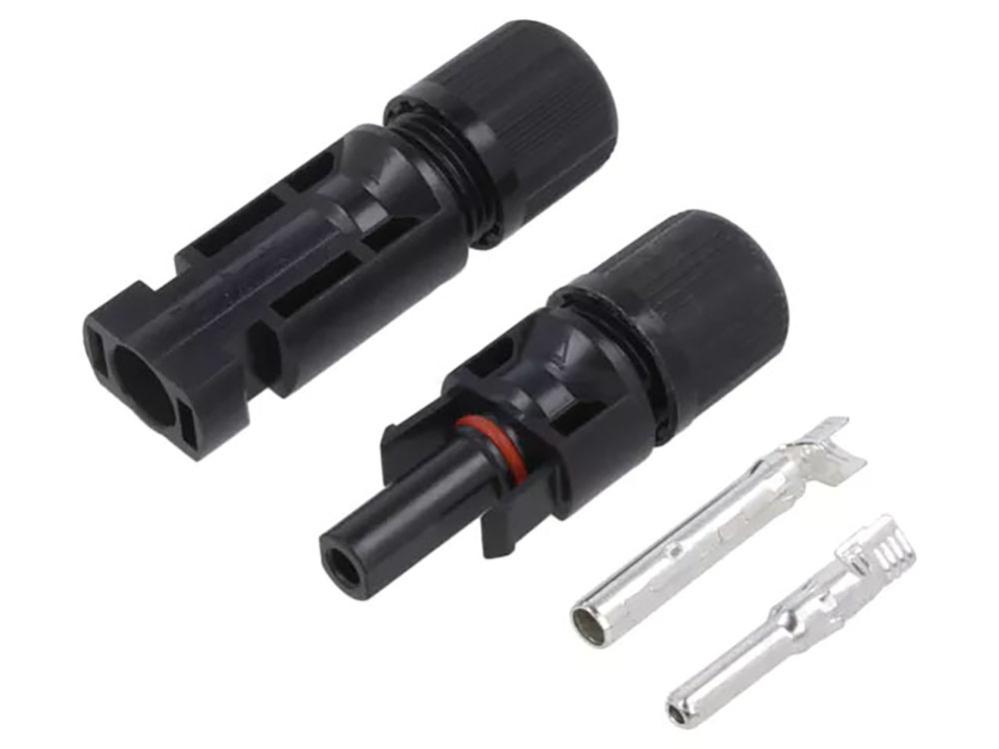

MC4 connectors for solar panels. Crimp mounting on 2.5 - 6 mm2 cable. Up to 30 A load. Comes in pairs (female + male)
Specifications:
- Product type: MC4 connector (male + female)
- Current max: 30 A
- Voltage max: 1500VDC rms
- Temperature range: -40°C~+85°C.
- Cable: 2.5~6 mm2
- Mounting: Crimp
- Rating: IP67 (dust and waterproof)
- Pin material: tinned copper
- Housing material: Thermoplastic, UL 94 V-0, Silicone
- Clip material: Stainless steel
- Colour: Black
