Product description

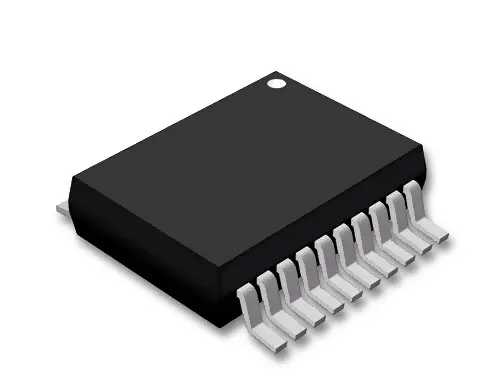

The MCP2200 is a USB-to-UART serial converter which enables USB connectivity in applications that have a UART interface. The device reduces external components by integrating the USB termination resistors. The MCP2200 also has 256 bytes of integrated user EEPROM. The MCP2200 has eight general purpose input/output pins.
* Supports full-speed USB (12 Mb/s)
* Implements USB protocol composite device CDC device for communications, configuration and I/O control
* 128 byte buffer to handle data throughput at any UART baud rate:
* Fully configurable VID and PID assignments, and string descriptors
* Bus powered or self-powered
* USB 2.0 Compliant
* Uses standard Microsoft® Windows® drivers for Virtual Com Port (VCP)
* Operating voltage: 3.0-5.5V
* Oscillator input: 12 MHz
* ESD protection > 4 kV HBM
* Industrial (I) Operating Temperature: -40°C to +85°C
* Supports full-speed USB (12 Mb/s)
* Implements USB protocol composite device CDC device for communications, configuration and I/O control
* 128 byte buffer to handle data throughput at any UART baud rate:
* Fully configurable VID and PID assignments, and string descriptors
* Bus powered or self-powered
* USB 2.0 Compliant
* Uses standard Microsoft® Windows® drivers for Virtual Com Port (VCP)
* Operating voltage: 3.0-5.5V
* Oscillator input: 12 MHz
* ESD protection > 4 kV HBM
* Industrial (I) Operating Temperature: -40°C to +85°C
