Product description

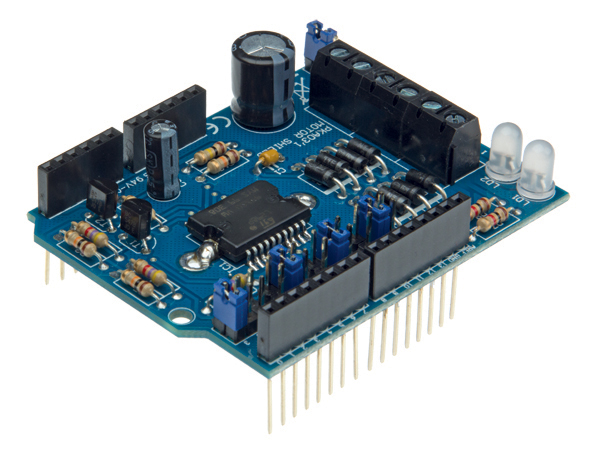

This is an Arduino kit (needs mounting).
Power shield that can drive: relays, solenoids, DC and stepper motors.
Features
2 channels
choose between an external or internal (Vin) power supply
based on the dual full bridge driver L298P
downloadable sample sketch

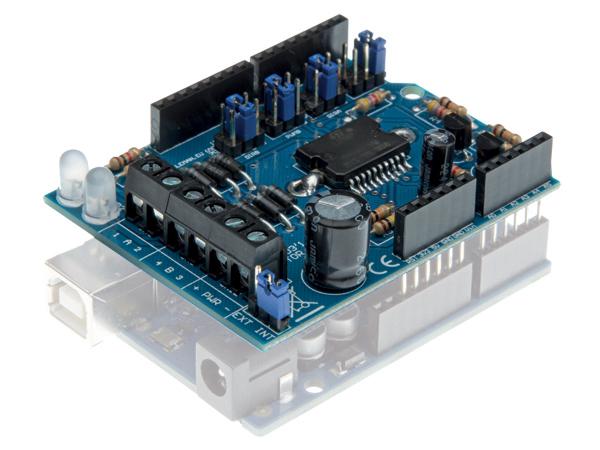

stackable design: the shield can be stacked with other shields
large user community
requires 1 Arduino UNO (not included)
Specifications
2.5 A (max.) output current (each channel)
50 V (max.) external power supply input
used pins on an Arduino UNO board can be selected to accommodate for other stacked shields
dimensions: 68 x 53mm / 2.67 x 2.08"
