Product description

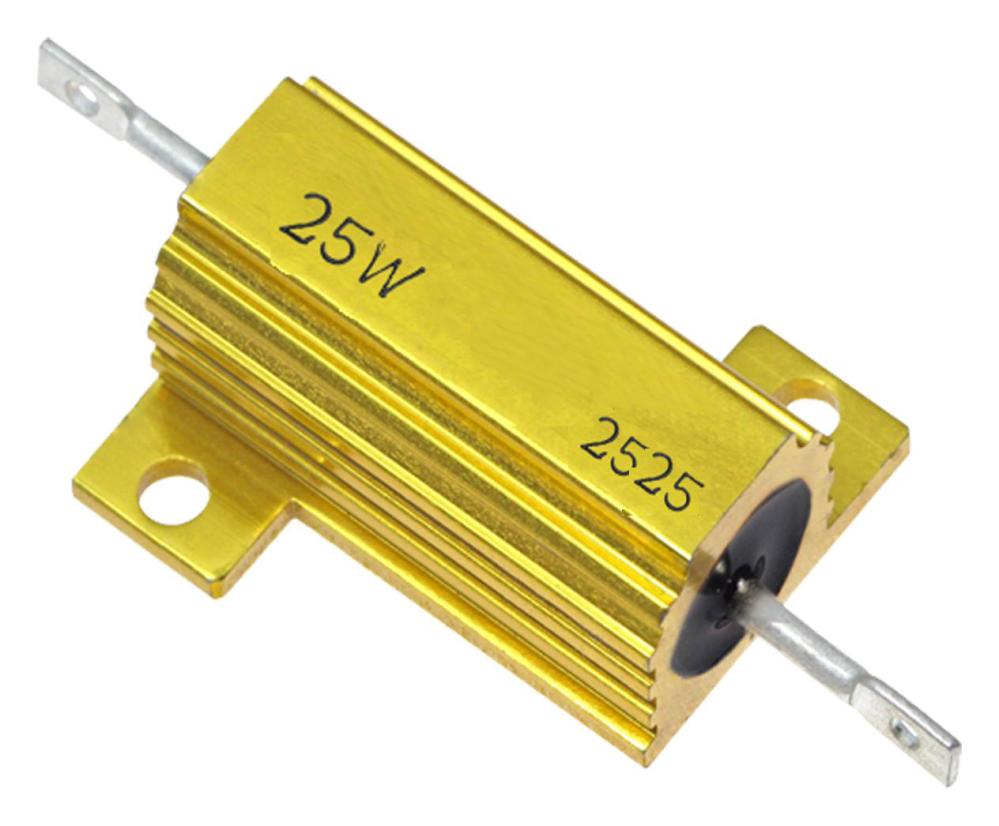

Wirewound 25W resistor. Designed to handle continuous high power dissipation. With anodized aluminum heat sink with mounting brackets. Manufactured in accordance with the requirements of MIL 18546 and IEC 115. For maximum heat transfer, it is recommended to apply thermal paste between the resistor and the mounting surface. Maximum temperature: 200°C. At high temperatures, the resistor must be mounted on a heat sink of the correct thermal resistance for the power consumed.
- Power with own heat sink (max): 9W
- Power mounted on external heat sink (max): 25W
- Dimensions: 27.3x28x14.8 mm
