Product description

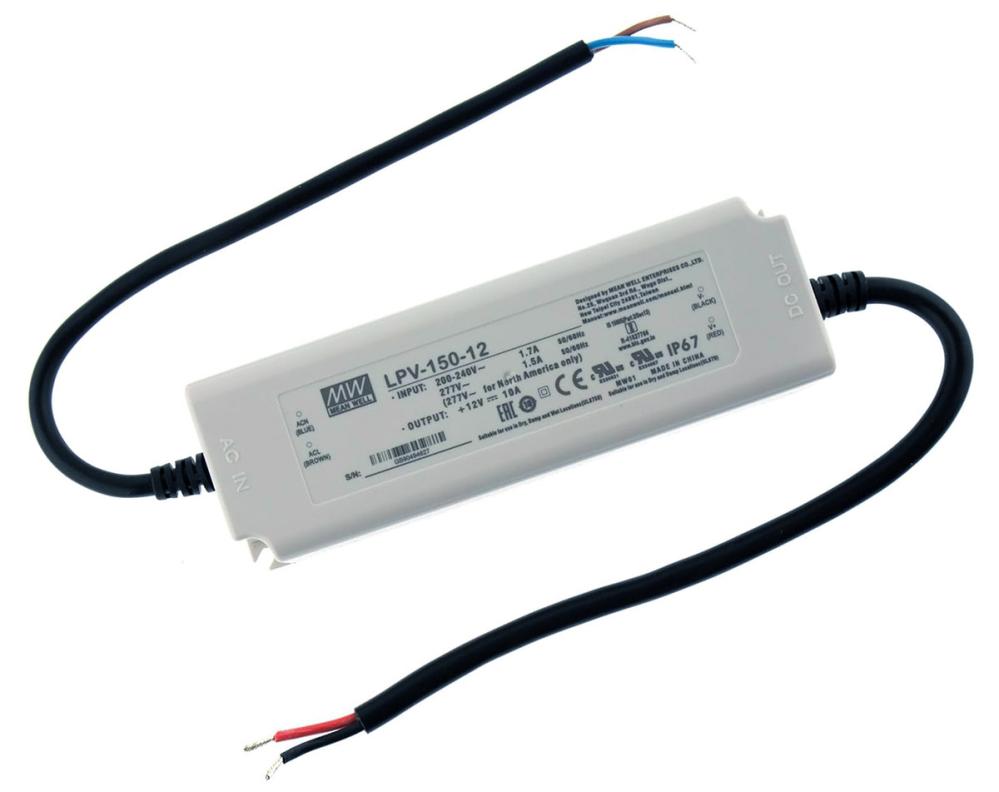

Switched-mode power supply built into a protective casing (IP67). Connection cables with open end. The power supply is protected against short circuit, overvoltage and overload with automatic reset. LPV-150 is suitable for machines, appliances, LED lighting, etc. The power supply is completely silent thanks to passive cooling (no disturbing fan).
Specifications:
- Operating voltage: 180-305 VAC
- Output voltage: 12 VDC
- Current (max): 10 A
- Power: 120 W
- Ripple: >200 mVp-p
- Dimensions: 191x63x37 mm
- Weight: 795 g
- Manufacturer: Mean Well
- Model#: LPV-150-12
- Mounting: Screw bracket
- Power cable in: 18AWG - 300 mm
- Power cable out: 14AWG - 300 mm
