Product description

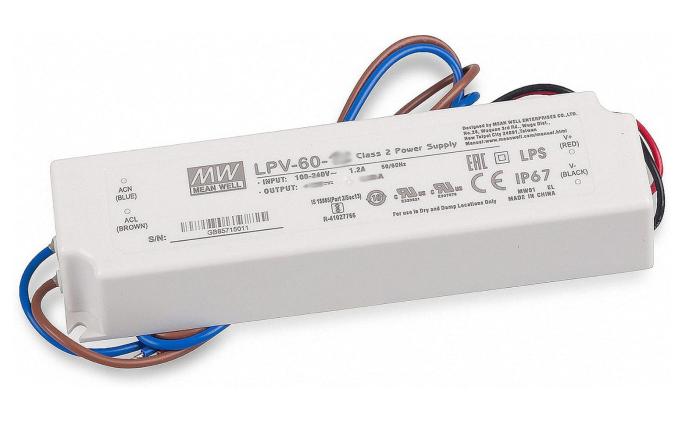

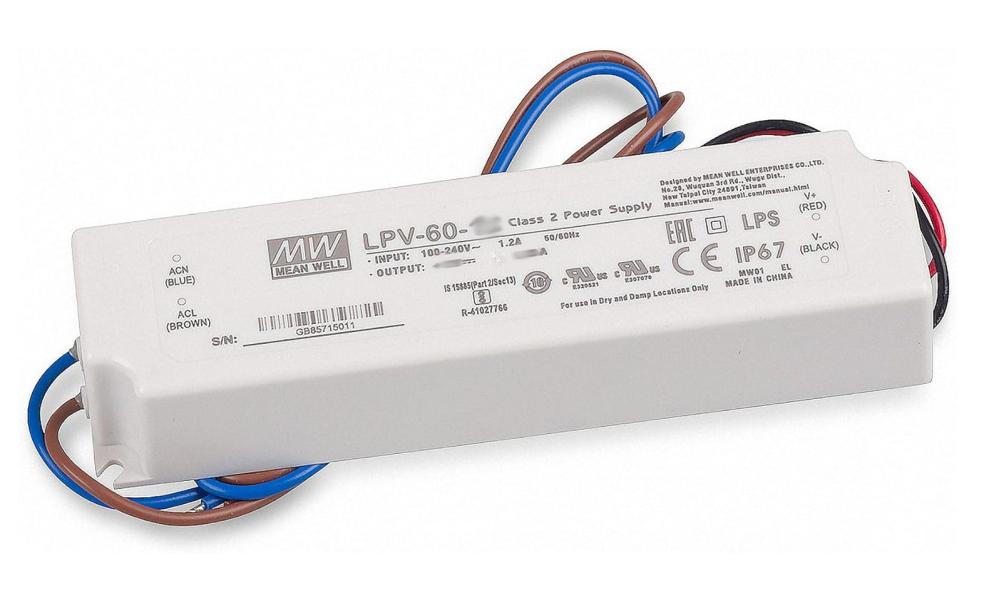

Switched-mode power supply built into a protective casing (IP67). Connection cables with open end. The power supply is protected against short circuit, overvoltage and overload with automatic reset. LPV-60 is suitable for machines, appliances, LED lighting, etc. The power supply is completely silent thanks to passive cooling (no disturbing fan).
Specifications:
- Operating voltage: 90 - 264 VAC
- Output voltage: 48 VDC
- Current (max): 1.25 A
- Power: 60 W
- Ripple: >150 mVp-p
- Dimensions: 190x52x37 mm
- Weight: 403 g
- Manufacturer: Mean Well
- Model#: LPV-60-48
- Mounting: Screw bracket
- Power cable in: 18AWG - 600 mm
- Power cable out: 14AWG - 600 mm
