NeoPixel ring 12 RGB LEDs ø37mm

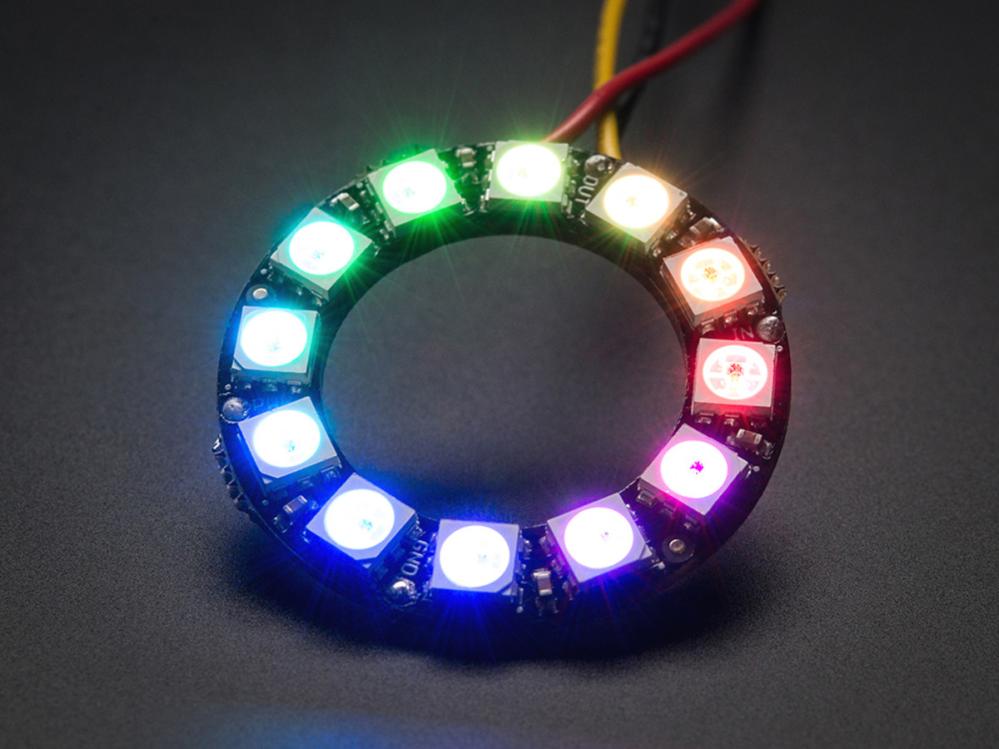

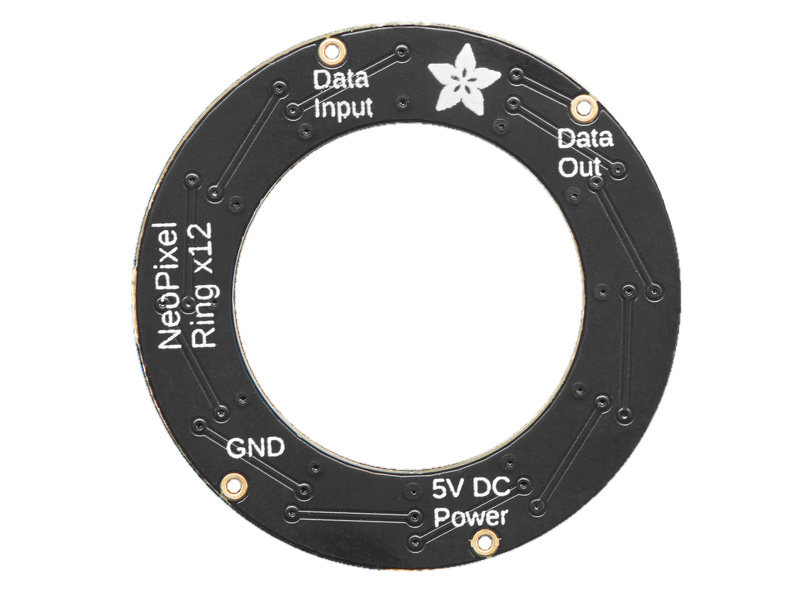

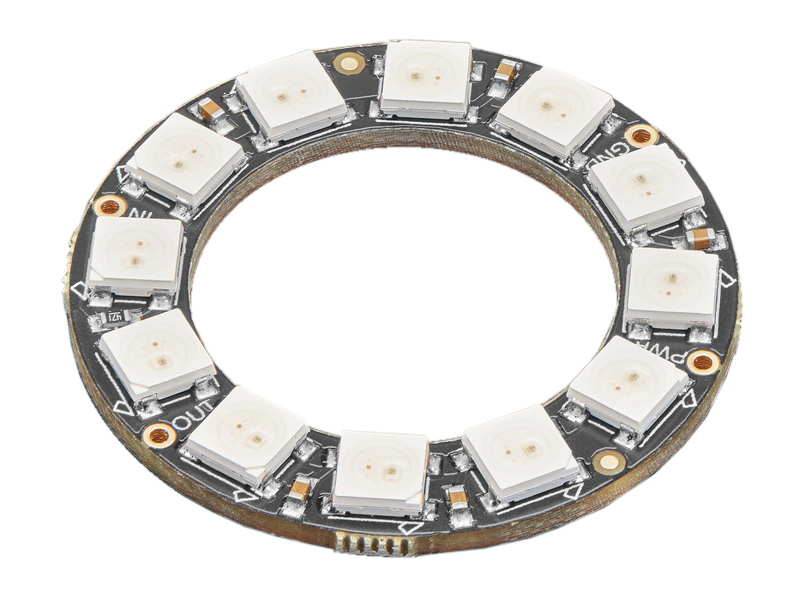

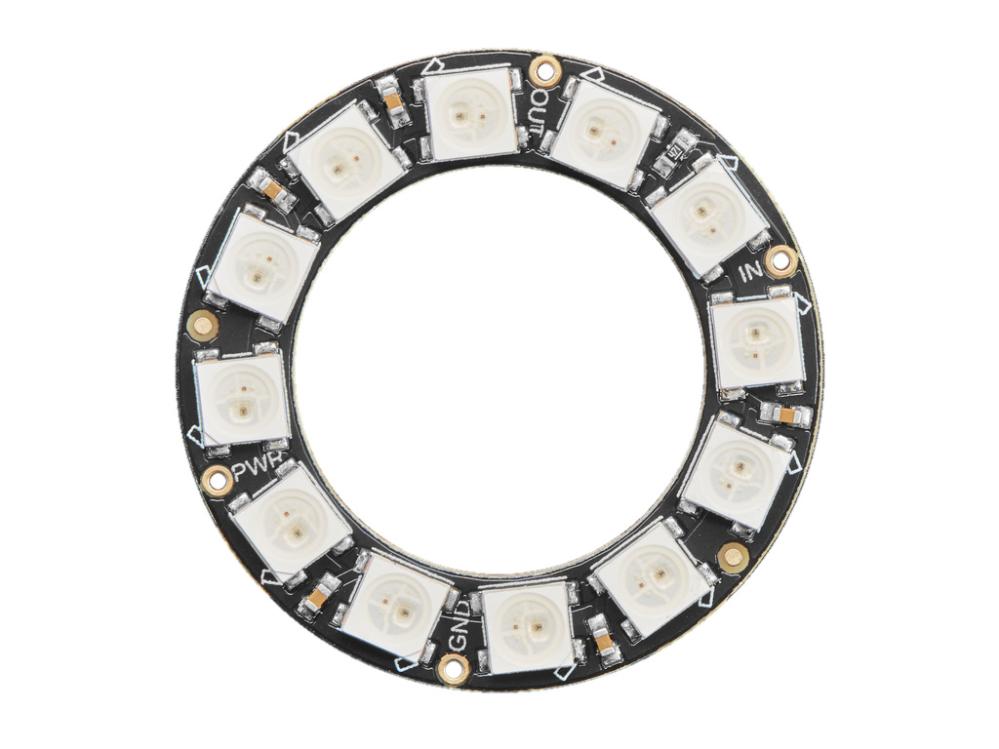

LED ring with 12pcs 5x5mm NeoPixel RGB LEDs. Each LED is individually addressable and can be controlled with just one pin from a microkontroller. Multiple rings can be chained to create larger units. Each LED has an integrated constant current driver, which makes the intensity of each LED consistent. No external resistors are needed, just supply the board with ~5VDC and connect the data line to a micro controller!

* Current consumption (each LED): ~18mA (~220mA in total)
* Supply voltage: 4 - 7VDC
* Dimensions: outer diameter - 36.8mm, inner diameter - 23.3mm, thickness - 6.7mm
* Weight: 3.3g
* LEDs: WS2812B or SK6812
