NeoPixel ring 16 RGB LEDs ø44.5mm

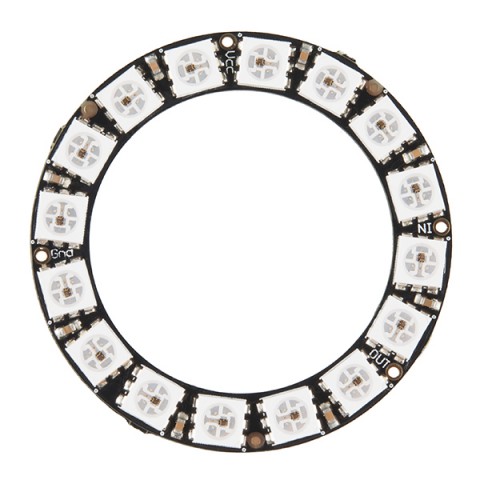

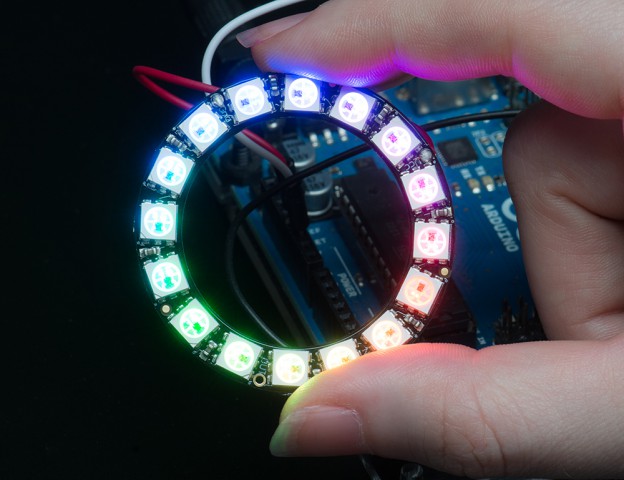

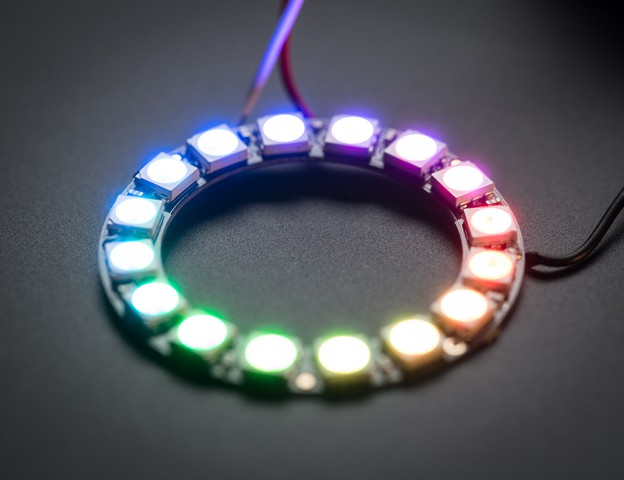

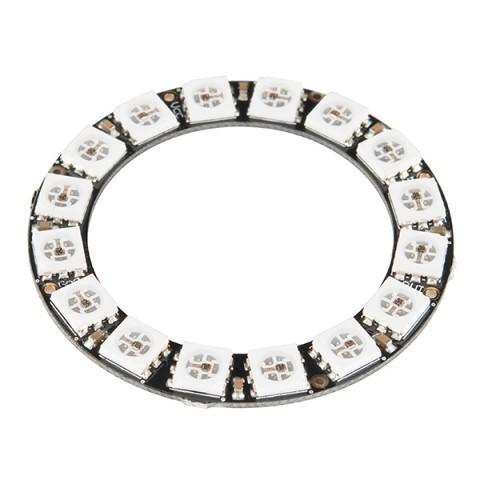

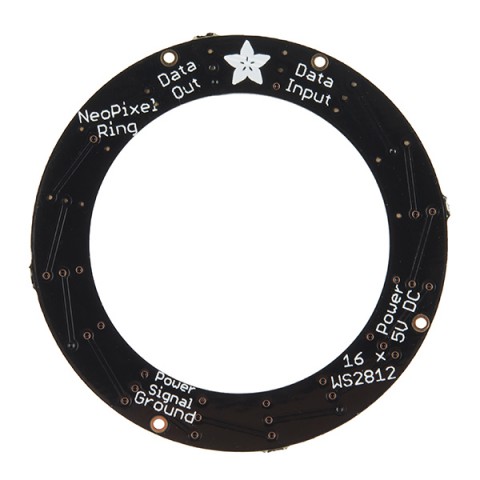

LED ring with 16pcs 5x5mm NeoPixel RGB LEDs. Each LED is individually addressable and can be controlled with just one pin from a microkontroller. Multiple rings can be chained to create larger units. Each LED has an integrated constant current driver, which makes the intensity of each LED consistent. No external resistors are needed, just supply the board with ~5VDC and connect the data line to a micro controller!

* Current consumption (each LED): ~18mA (~288mA in total)
* Supply voltage: 4 - 7VDC
* Dimensions: outer diameter - 44.5mm, inner diameter - 31.75mm, thickness - 2.54mm (1.75 x 1.25 x 0.1")
* Weight: 3.03g
* LEDs: WS2812
