NeoPixel stick 8 RGB LEDs 51mm
Art no: 41012479 - Adafruit
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

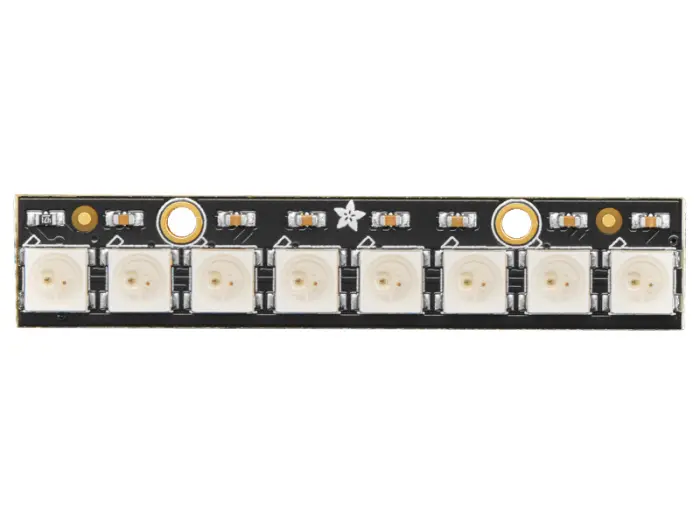

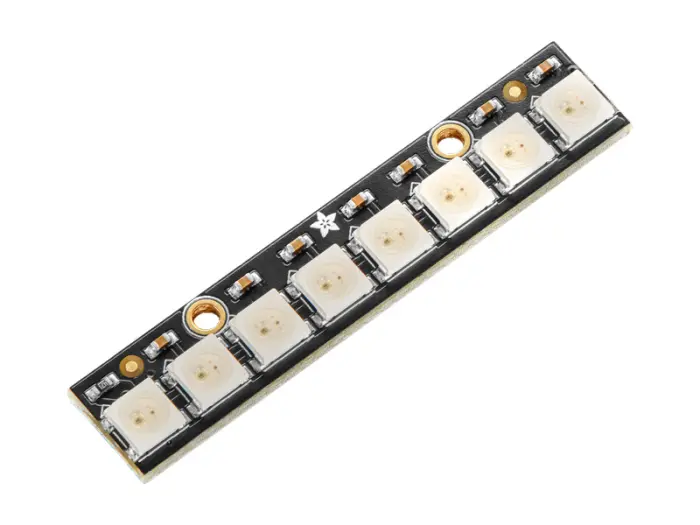

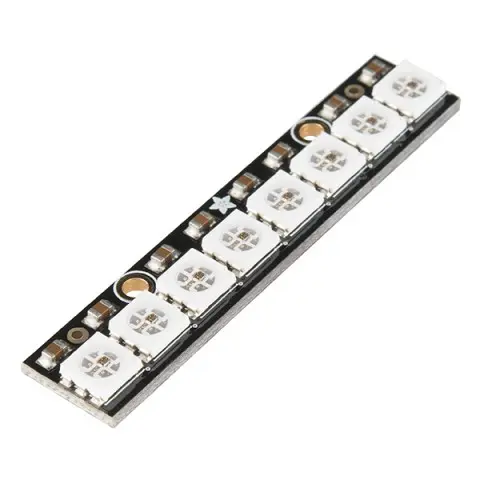

LED stick with 8pcs 5x5mm NeoPixel RGB LEDs. Each LED is individually addressable and can be controlled with just one pin from a microkontroller. Multiple sticks can be chained to create larger units. Each LED has an integrated constant current driver, which makes the intensity of each LED consistent. No external resistors are needed, just supply the board with ~5VDC and connect the data line to a micro controller!
* Current consumption (each LED): ~18mA (~144mA in total)
* Supply voltage: 4 - 7VDC
* Dimensions: 51.10 x 10.22 x 3.19 (2 x 0.4 x 0.12")
* Weight: 2.57g
* LEDs: WS2812
* Current consumption (each LED): ~18mA (~144mA in total)
* Supply voltage: 4 - 7VDC
* Dimensions: 51.10 x 10.22 x 3.19 (2 x 0.4 x 0.12")
* Weight: 2.57g
* LEDs: WS2812
Documents
Product information
SKU:
41012479MPN:
1426
