Olimex iCE40HX1K FPGA development board

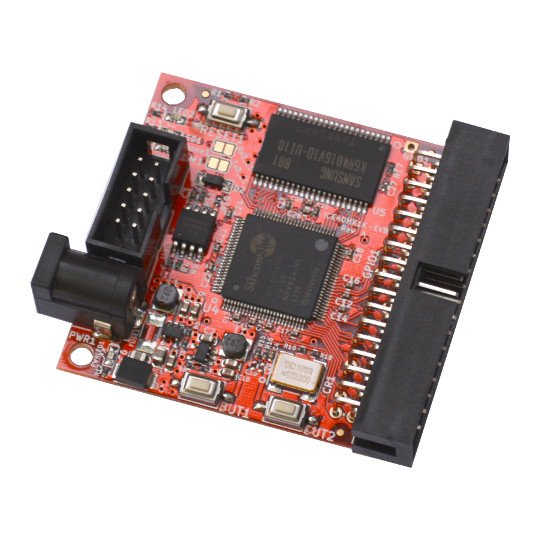

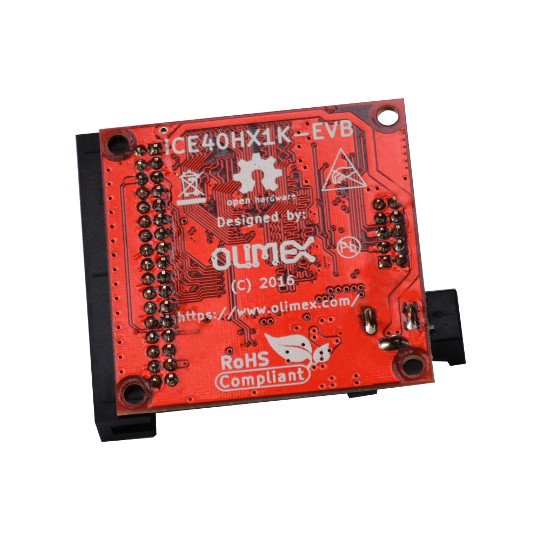

iCE40HX1K-EVB is low cost development board for iCE40 FPGA family from Lattice Semiconductor.

The interesting part about this family of FPGAs is that there is a completely free and open source development tool available. Using this free tool you can compile Verilog designs and upload them to the FPGA. More inforomation on the link in Software section.

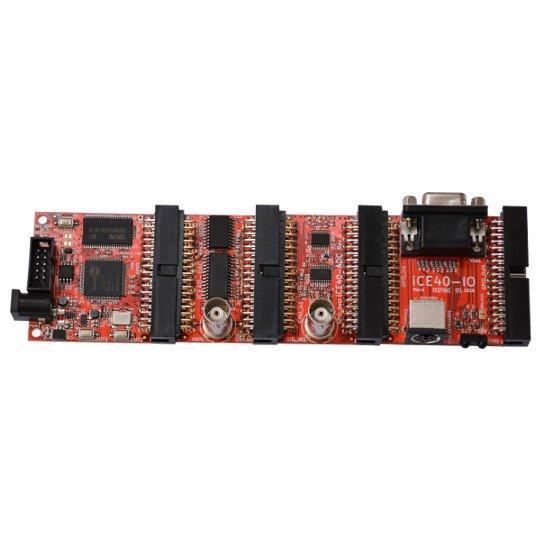

iCE40HX1K-EVB has 34 pin bus connector which allows the easy hardware expansion of the board with additional modules like: iCE40-ADC with 100Mhz ADC; iCE40-DAC with 100Mhz DAC; iCE40-IO with VGA, PS2 and IrDA transciever; MOD-DIO with logic analyzer level shifter with programmable 1.5-5.5V threshold. Up to 4 x ADC and 4 x DAC expansion modules can be connected on same bus (if you use iCE40-IO on the same bus then only up to 2 x ADC and 1 x DAC).

FEATURES
iCE40HX1K-VQ100 FPGA 1280 Logic cells, 64 K embedded RAM bits
512KB SRAM organized as 256Kx16bit 10ns
2MB Serial Flash
2 user status LEDs
Programming successful status LED
2 user buttons
Reset button
Power jack for 5V DC external power supply
PGM connector (all signals at PGM1 @ 3.3V DC)
34 pin connector bus
100 Mhz oscillator
Power supply DCDC regulators
Power supply status LED
Dimentions: 50x50mm ~ (2x2)"
