Product description

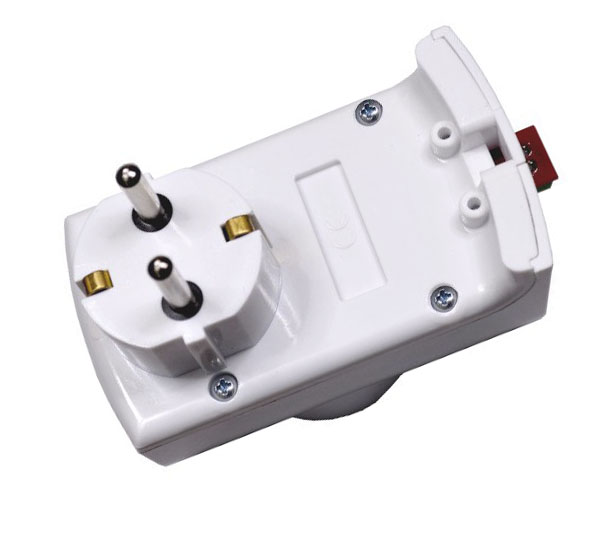

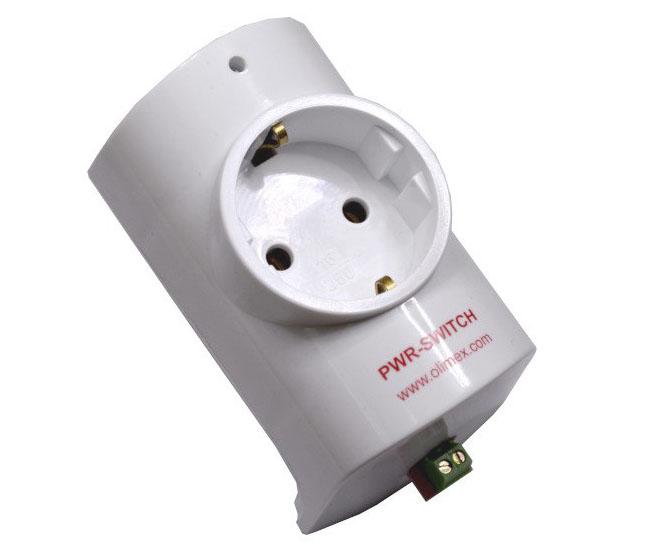

Optically Isolated 230 VAC Power Switch. PWR-SWITCH is an optically isolated power switch that plugs directly into a 230V wall socket. It enables simple and safe control of loads up to 3500 W from devices such as Arduino, Raspberry Pi, or any other microcontroller. The control voltage range is 3 to 24 VDC, making it compatible with most microcontrollers, monitoring systems, or alarms. PWR-SWITCH is CE-certified according to RoHS, EMC, and LVD directives.
Specifications:
- Pass-through socket with integrated 230 VAC switch

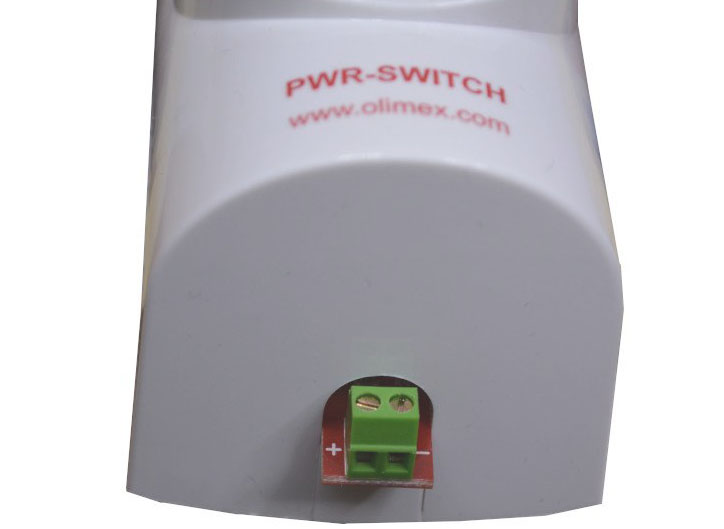

- DC input is fully isolated from the mains (optically isolated)
- Supply voltage: 90?230 VAC (50/60 Hz)
- Switching voltage (max): 230 VAC
- Switching current (max): 16 A
- Power rating (max): 3500 W
- Green LED status indicator
- Operating temperature: 0 to 40 °C
- Humidity: 5% ? 90% RH
- Dimensions (L×W×H): 88 × 38 × 23 mm
