Product description

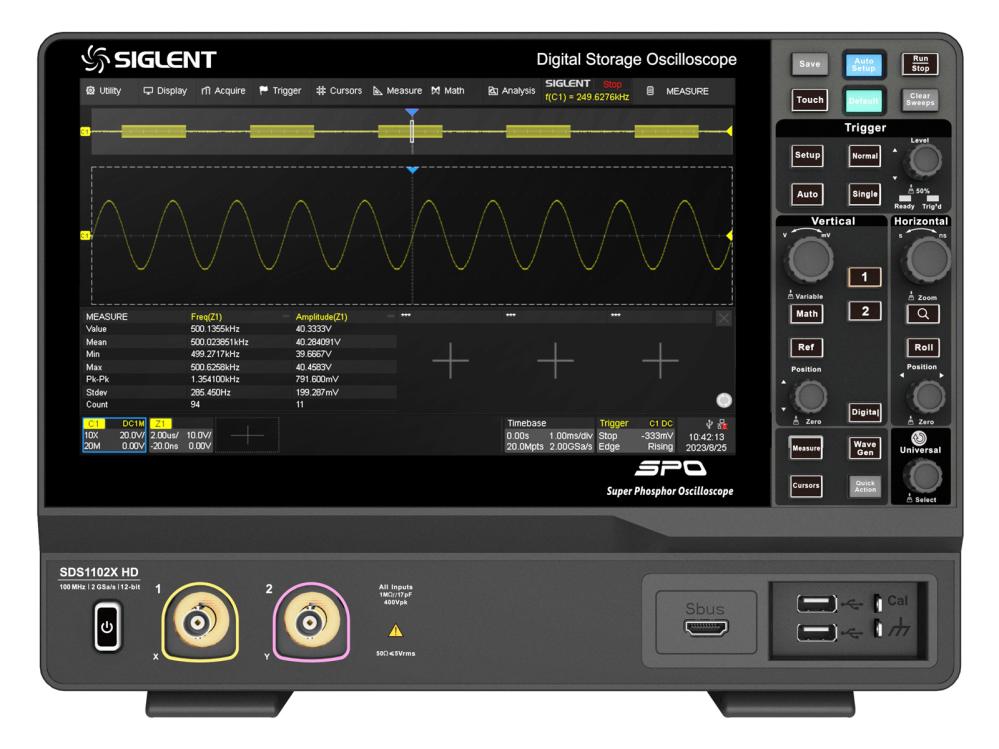

SDS1102X HD has a bandwidth of 100 MHz and 2 channels.
The SDS1102X HD series utilizes Siglent's SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in sequence mode), 256-level intensity grading, and color temperature display mode. It also employs an innovative digital triggering system with high sensitivity and low jitter. The triggering system supports multiple powerful triggering modes including serial bus triggering. Tools such as historical waveform recording, search and navigation functions, mask testing, Bode plots, and power analysis enable extended waveform capture, storage, and analysis. An impressive range of measurement and mathematical functions, options for a 25 MHz arbitrary waveform generator, and serial decoding are also features of the SDS1000X HD.
The large 10.1-inch capacitive touchscreen supports multi-touch gestures, greatly enhancing user efficiency thanks to its user-friendly UI design. It also supports mouse control and remote web control over LAN.
SIGLENT's SDS1000X HD series of high-resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit analog-to-digital converters and front ends with excellent noise performance. They are available in bandwidths of 200 MHz and 100 MHz, have a maximum record length of 100 Mpt, and display 2/4 analog channels + 16 digital channels for mixed signal analysis.
The SDS1102X HD series utilizes Siglent's SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in sequence mode), 256-level intensity grading, and color temperature display mode. It also employs an innovative digital triggering system with high sensitivity and low jitter. The triggering system supports multiple powerful triggering modes including serial bus triggering. Tools such as historical waveform recording, search and navigation functions, mask testing, Bode plots, and power analysis enable extended waveform capture, storage, and analysis. An impressive range of measurement and mathematical functions, options for a 25 MHz arbitrary waveform generator, and serial decoding are also features of the SDS1000X HD.
The large 10.1-inch capacitive touchscreen supports multi-touch gestures, greatly enhancing user efficiency thanks to its user-friendly UI design. It also supports mouse control and remote web control over LAN.
SIGLENT's SDS1000X HD series of high-resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit analog-to-digital converters and front ends with excellent noise performance. They are available in bandwidths of 200 MHz and 100 MHz, have a maximum record length of 100 Mpt, and display 2/4 analog channels + 16 digital channels for mixed signal analysis.
