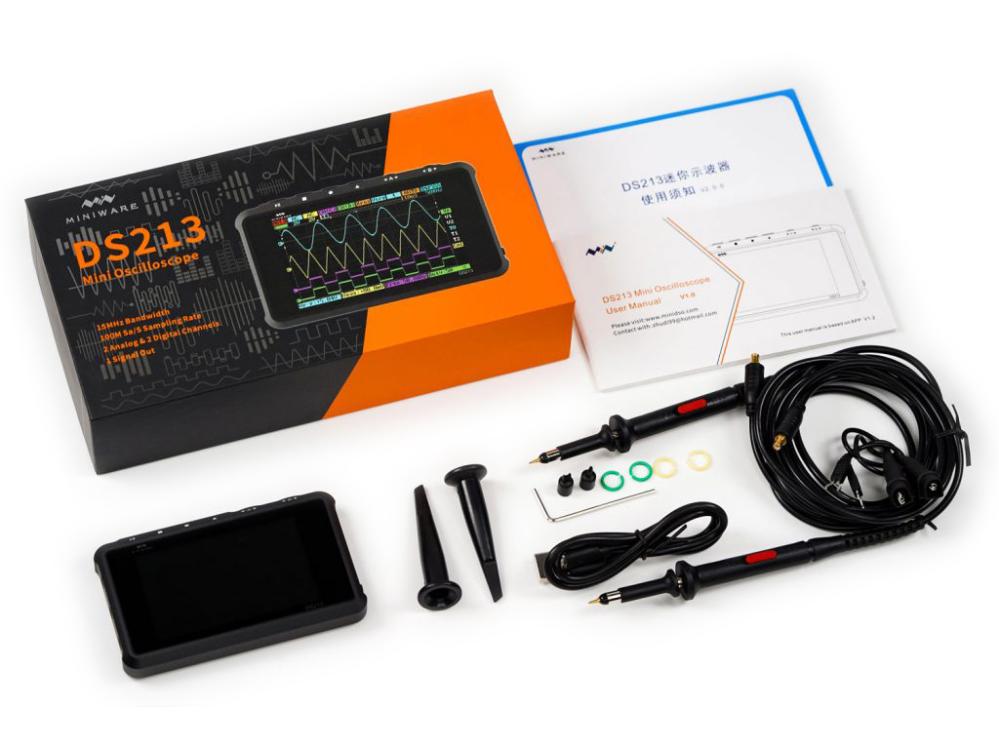

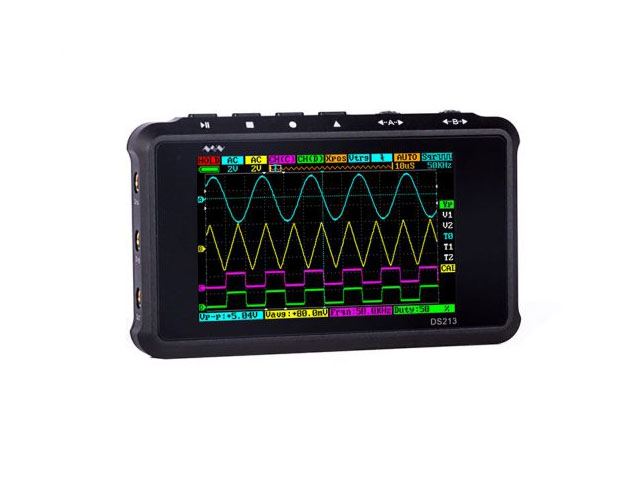

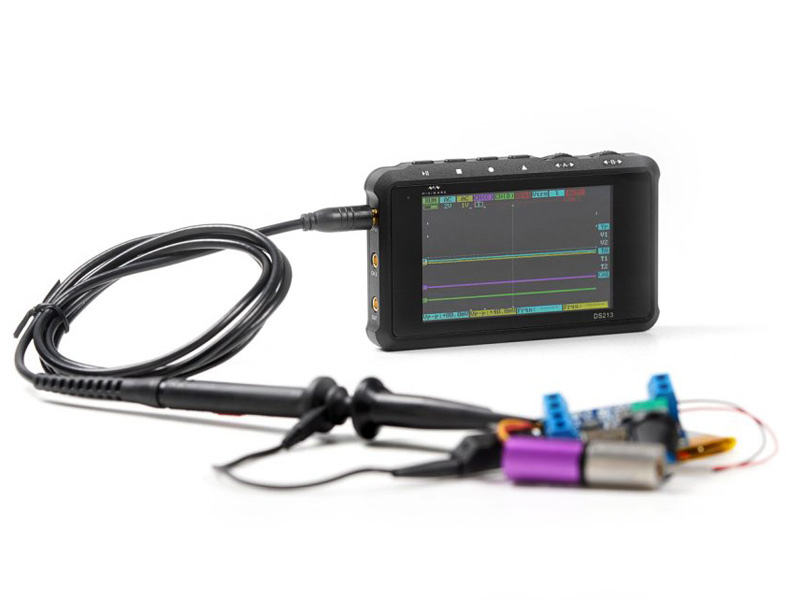

Oscilloscope 15MHz 4-ch handheld DS213

Art no: 41020537 - MiniWare
Shop this product, Oscilloscope 15MHz 4-ch handheld DS213
price 2 299 SEK
Including 25% VAT
In stock, 7 pcs
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Small handheld oscilloscope with four channels (two analog, two digital) and a built-in function generator. Battery powered with charging via micro-USB. The USB-port also enables uploading of images from and firmware to the oscilloscope. Open source code enables users to modify the firmware for customized functions.

  • Sample rate: 100Msa/s
  • Analog bandwidth: 15MHz
  • Memory depth: 4x4k
  • Input impedance: 1Mohm analog / 100k digital
  • Max input voltage: ±40V (X1 probe) / ±400V (X10 probe)
  • Vertical sensitivity: 10mV/div
  • Vertical resolution: 8-bit
  • Generator: 10Hz - 8MHz (square) / 10Hz - 20kHz (sine,triangle,sawtooth)
  • Memory: 8MB
  • Power supply: 1000mAh battery / Micro-USB
  • Display: Color TFT 400x240px
  • Dimensions: 99.5 x 59 x 13.5 mm

Technical data

Technical data/attributes for this product
Attribute Value
Bandwidth
15 MHz
Channels
4
  • SKU:

    41020537
  • MPN:

    DS213
